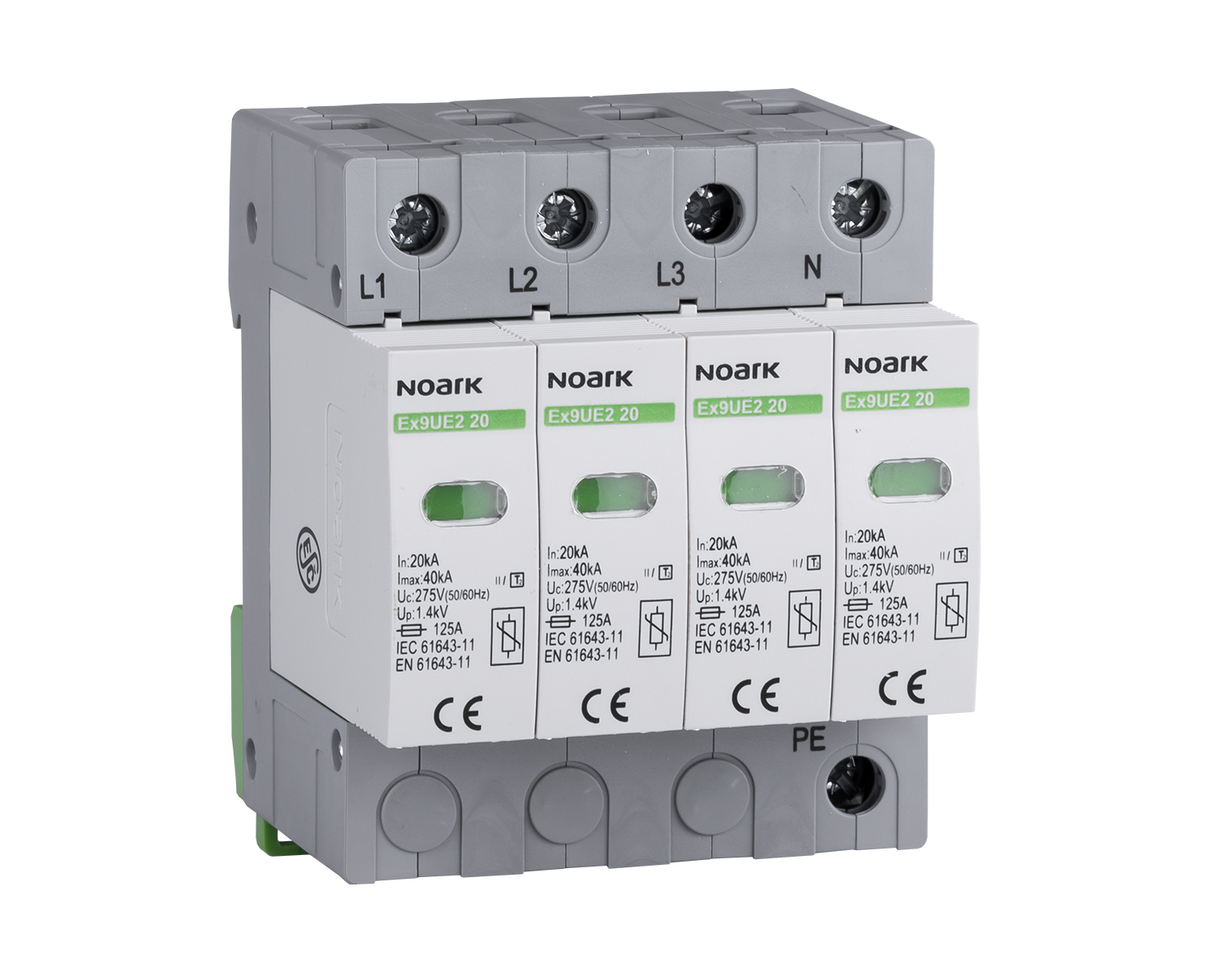

Ex9UE2 20 4P 385 Ogr. przep., typ II, 385 V AC, 20 kA, wymienna wkładka, 4-bieg.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 103776 |
| GTIN(EAN) | 8592765037770 |
| Price unit | piece |
| Catalog price | 768,07 zł (624,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 440 g |
| ETIM class: | Surge protection device for power supply systems |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 385 V |
| Max. continuous voltage AC: | 385 V |
| Voltage protection level L-N: | 1.9 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| With remote signalling contact: | no |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | no |
