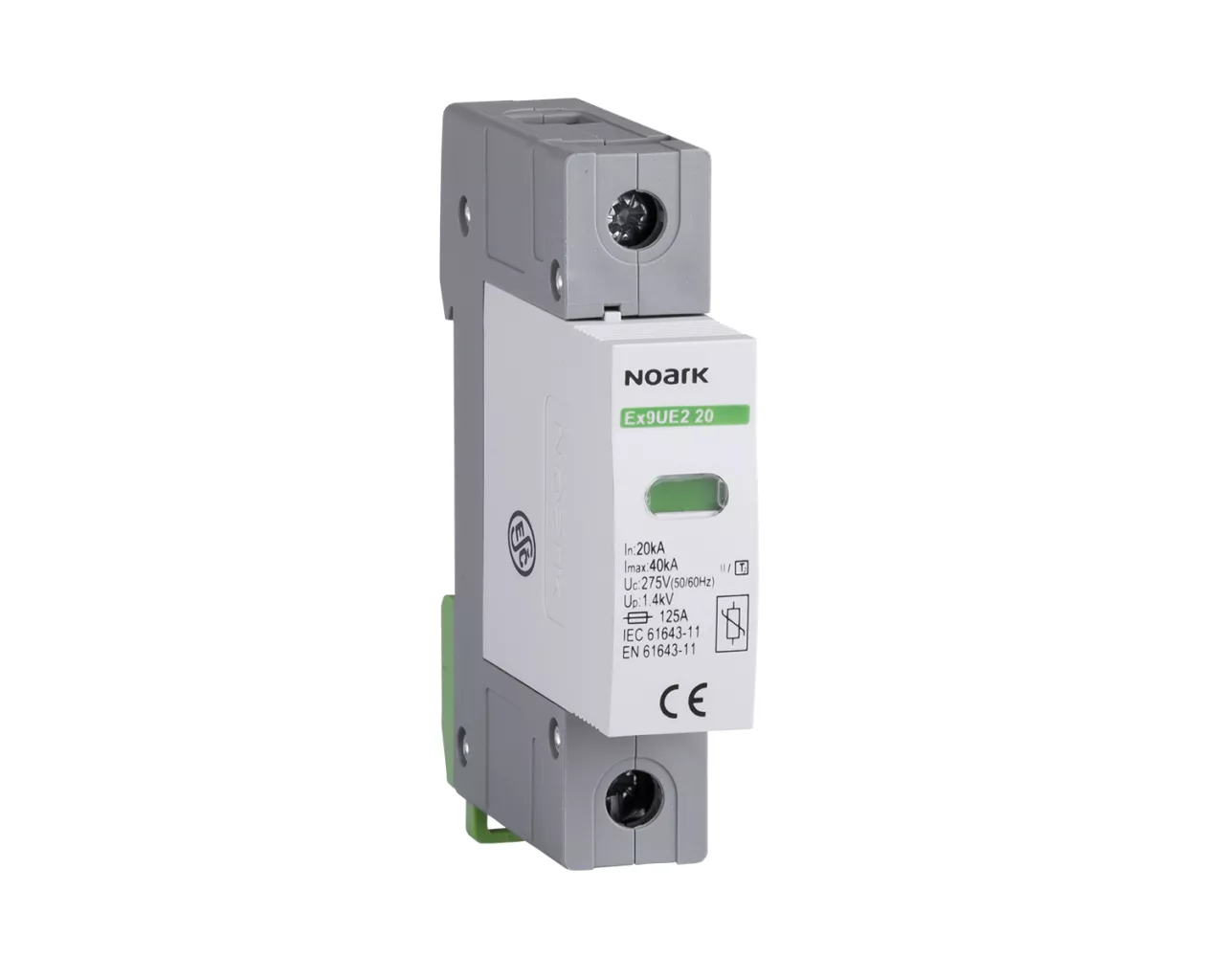

Ex9UE2 20 1P 320 Ogr. przep., typ II, 320 V AC, 20 kA, wymienna wkładka, 1-bieg.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 103754 |
GTIN(EAN) | 8592765037558 |
Price unit | piece |
Catalog price | 183,58 zł (149,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 110 g |
ETIM class: | Surge protection device for power supply systems |
Nominal discharge surge current (8/20): | 20 kA |
Nominal voltage AC: | 320 V |
Max. continuous voltage AC: | 320 V |
Voltage protection level L-N: | 1.6 kV |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
With remote signalling contact: | no |
Integrated backup fuse: | no |
Signalling at the device: | Optical |
Category type 2: | yes |
Degree of protection (IP): | IP20 |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | yes |
System configuration TT: | no |
System configuration other: | no |
