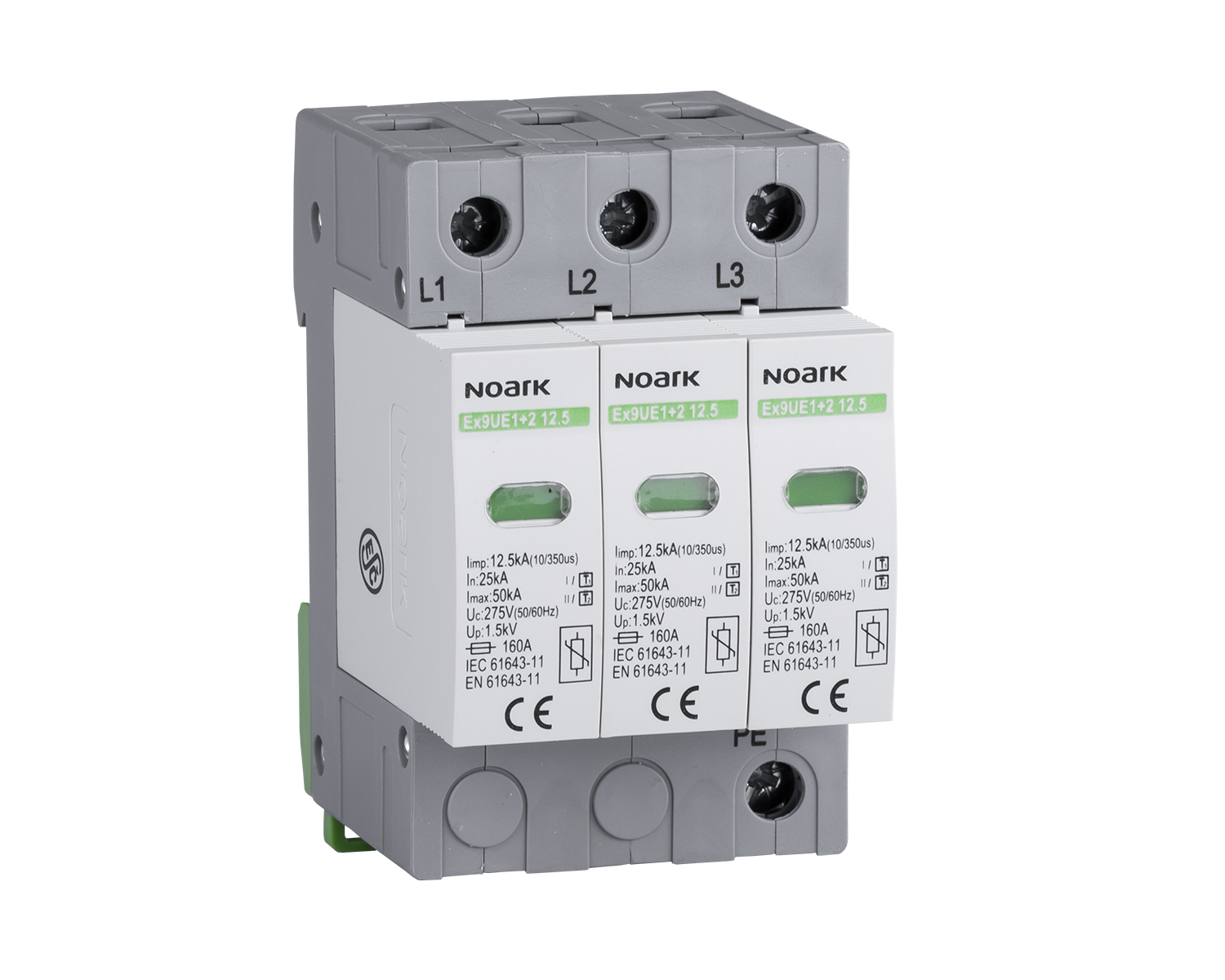

Ex9UE1+2 12.5R 3P 275 Ogr. przep., typ I+II, 275 V AC, 12,5 kA, wymienna wkładka, 3-bieg., styk pom.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 103339 |
GTIN(EAN) | 8592765033406 |
Price unit | piece |
Catalog price | 1 437,03 zł (1 168,32 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 450 g |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | yes |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | no |
Number of poles: | 3 |
Lightning impulse current (10/350 µs): | 12.5 kA |
Max. continuous voltage AC: | 275 V |
Nominal voltage AC: | 275 V |
Voltage protection level L-N: | 1.5 kV |
Voltage protection level N-PE: | 1.5 kV |
Specific energy (W/R): | 156.25 kJ/Ω |
Max. conductor cross section solid (solid, stranded): | 50 mm² |
Max. conductor cross section flexible (fine-strand): | 50 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 3 modular spacing |
Remote signalling: | yes |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Integrated backup fuse: | no |
Energy-coordinated protection effect with regard to the terminal equipment: | no |
Degree of protection (IP): | IP20 |
