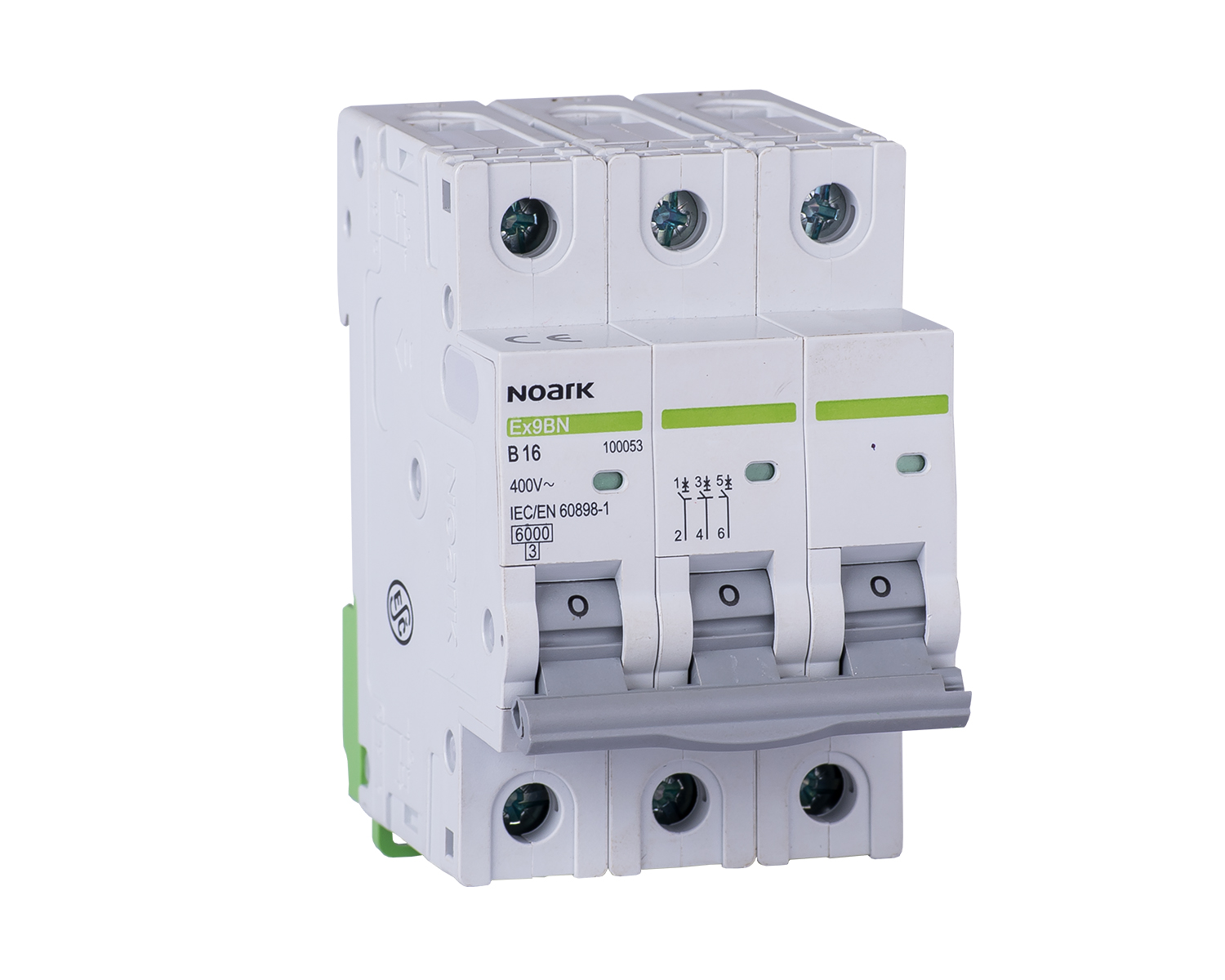

Ex9BN 3P B4 Wył. nadpr. 6 kA, ch-ka B, 4 A, 3-bieg.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 100048 |
GTIN(EAN) | 8592765000491 |
Price unit | piece |
Catalog price | 167,39 zł (136,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 360 g |
ETIM class: | Miniature circuit breaker (MCB) |
Release characteristic: | B |
Number of poles (total): | 3 |
Number of protected poles: | 3 |
Rated current: | 4 A |
Rated voltage: | 400 V |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Voltage type: | AC |
Current limiting class: | 3 |
Frequency: | 50 - 60 Hz |
Concurrently switching neutral conductor: | no |
Over voltage category: | 3 |
Pollution degree: | 2 |
Width in number of modular spacings: | 3 |
Built-in depth: | 74 mm |
Additional equipment possible: | yes |
Degree of protection (IP): | IP20 |
Rated insulation voltage Ui: | 690 V |
Rated impulse withstand voltage Uimp: | 6 kV |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
Power loss: | 6 W |
Flush-mounted installation: | no |
Ambient temperature during operating: | -30 - 70 °C |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Explosion-proof: | no |
