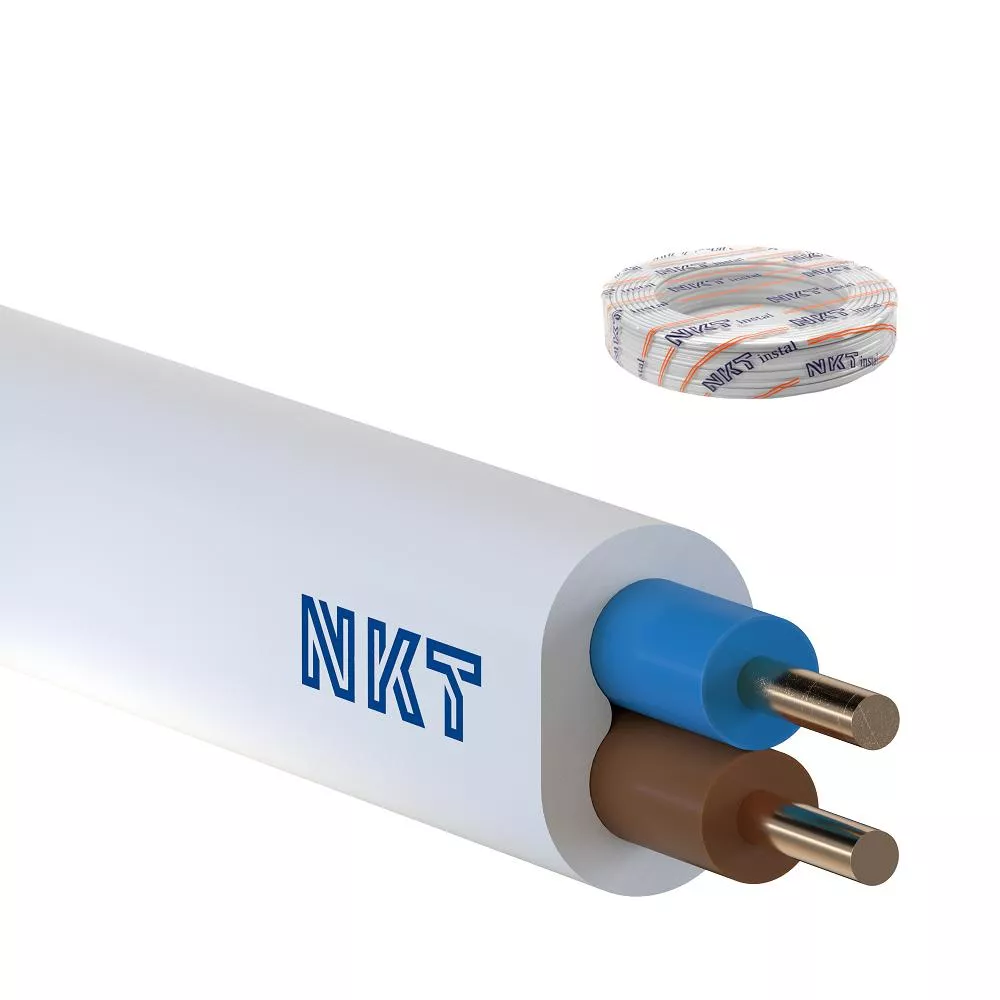

nkt instal YDYp 300/500 2x2,5 biały Przewód elektroenergetyczny, instalacyjny, wielożyłowy z izolacją PVC
| Information | Value |
|---|---|
| Supplier | NKT S.A. |
| Symbol | 172151003C0100 |
| GTIN(EAN) | 5907802038369 |
| Price unit | kilometer |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przewody elektroenergetyczne przeznaczone do układania na stałe wewnątrz pomieszczeń pod, w oraz na tynku
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 2.5 mm² |
| Conductor category: | Class 1 = solid |
| Number of cores: | 2 |
| Twisted cores: | no |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification according to HD 308 S2: | yes |
| Identification/coding colour core: | Other |
| Core identification: | Colour |
| Core colour: | Several |
| With protective conductor: | no |
| Max. conductor temperature: | +70 °C |
| Screen: | no |
| Drain wire: | no |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | White |
| Cable geometry: | Flat |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN 60754-1/2: | no |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Low smoke (according to EN 61034-2): | no |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Insulation integrity: | None |
| Min. permitted bending radius, stationary application/permanent installation: | 4 mm |
| Permitted cable outer temperature during assembling/handling: | -5 - +70 °C |
| Permitted cable outer temperature after assembling without vibration: | -40 - +70 °C |
| Nominal voltage U0: | 300 V |
| Nominal voltage U: | 500 V |
| Circuit integrity: | None |
| Shape of conductor: | Round |
| Suitable as installation cable: | yes |
| Certified for shipboard application: | no |
| Suitable as medium-voltage cable: | no |
| Suitable as high-voltage cable: | no |
| Certified as airport lighting cable: | no |
| Weight: | 79 kg/km |
| Circuit integrity according to EN 50200: | No |
| Circuit integrity according to EN 50200 annex E: | no |
| Circuit integrity according to IEC 60331-3: | No |
| Circuit integrity according to IEC 60331-21: | no |
| Flame retardant according to EN 60332-1-2: | yes |
| Flame retardant according to EN 60332-3-21 (Cat A F/R): | no |
| Flame retardant according to EN 60332-3-22 (Cat A): | no |
| Flame retardant according to EN 60332-3-23 (Cat B): | no |
| Flame retardant according to EN 60332-3-24 (Cat C): | no |
| Flame retardant according to EN 60332-3-25 (Cat D): | no |
| Halogen free according to EN 60754-1: | no |
| Halogen free according to EN 60754-2: | no |
| Halogen free according to EN 60754-3: | no |
