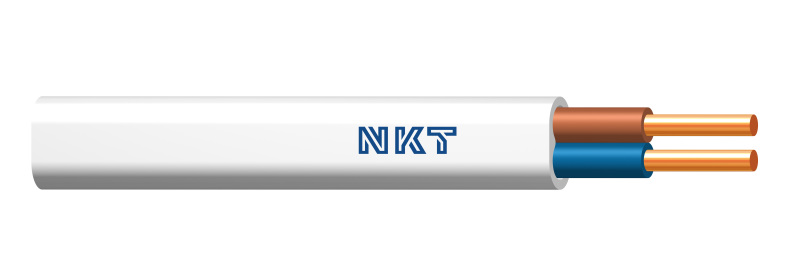

nkt instal YDYp 450/750 2x2,5 biały

• buy at the outlet / on sale
• Buy / order

Information	Value
Supplier	NKT S.A.
Symbol	13029004
GTIN(EAN)	5907802009864
Price unit	kilometer
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price	from 1,85 zł / m from 1 853,44 zł / km (1 506,86 zł + 23 % VAT)

Description:

Przewody elektroenergetyczne przeznaczone do układania na stałe wewnątrz pomieszczeń pod, w oraz na tynku

Additional features:

Information	Value
Net weight:	97 g
ETIM class:	Power cable < 1 kV, for permanent installation
Nominal cross section conductor:	2.5 mm²
Material core insulation:	Polyvinyl chloride (PVC)
Core identification:	Colour
Flame retardant:	According to IEC/EN 60332-1-2
Drain wire:	yes
Nominal voltage U:	750 V
Colour outer sheath:	White
Conductor material:	Copper
Material outer sheath:	Polyvinyl chloride (PVC)
Conductor category:	Class 1 = solid
Armouring/reinforcement:	None
Nominal voltage U0:	450 V
Screen:	yes
Number of cores:	2
Insulation integrity:	No
Max. conductor temperature:	+70 °C
Protective barrier:	None
Low smoke (according to EN 61034-2):	yes
Halogen free according to EN 60754-1/2:	yes
Oil resistant according to EN IEC 60811-404:	yes
Low temperature resistant according to EN 60811-504+505+506:	yes
Conductor surface:	Bare
Reaction-to-fire according to EN 13501-6: Class:	Eca
Reaction-to-fire according to EN 13501-6: Smoke production:	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:	None
Reaction-to-fire according to EN 13501-6: Acidity:	None
Min. permitted bending radius, stationary application/permanent installation:	4 mm
Specification core insulation:	Other
Specification material outer sheath:	Other
Twisted cores:	yes

Additional information:

Information	Value
Updated:	2023-02-03 09:04:11
Files to download:	nkt_instal_YDYp_450$750 DOP DOP000042 PL Rev01.pdf (98,05 KB)
