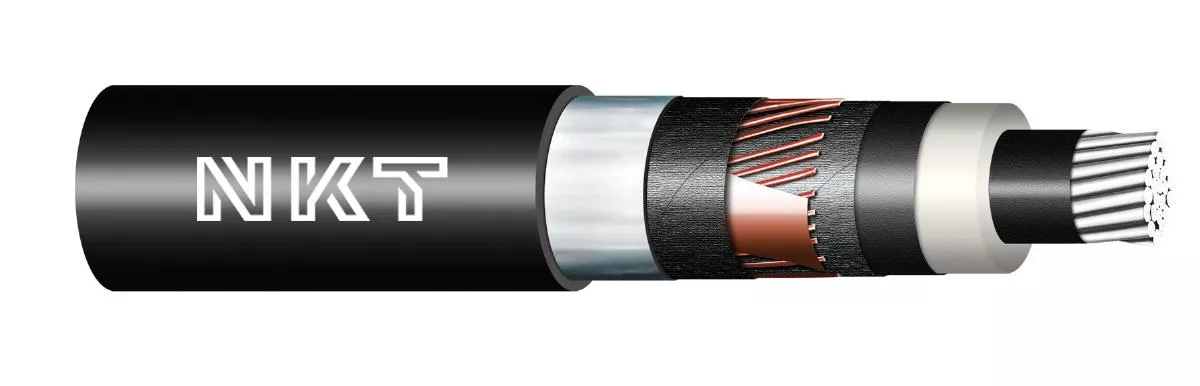

XRUHAKXS 1x240 RMC/50 12/20kV Kabel elektroenergetyczny średniego napięcia wg PN-HD 620-10C

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	NKT S.A.
Symbol	120325012
GTIN(EAN)	8590225120468
Price unit	kilometer
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price	from 44,03 zł / m from 44 034,00 zł / km (35 800,00 zł + 23 % VAT)

Description:

Kable przeznaczone do przesyłu energii elektrycznej, do zastosowania w sieciach energetycznych SN o napięciu znamionowym 12/20kV. Do układania bezpośrednio w gruncie, betonie, kanałach kablowych i bezpośrednio w powietrzu

Additional features:

Information	Value
ETIM class:	Power cable >= 1 kV, for permanent installation
Conductor material:	Aluminium
Conductor surface:	Bare
Nominal cross section conductor:	240 mm²
Conductor category:	Class 2 = stranded
Conductor resistance at 20 °C:	0.125
Shape of conductor:	Round
Number of cores:	1
Material core insulation:	Polyolefin
Specification core insulation:	Crosslinked polyethylene (XLPE)
Core identification according to HD 308 S2:	no
Core identification:	None
Laminated sheath:	yes
Fibre optic elements:	no
With protective conductor:	no
Inner semi-conducting layer:	yes
Outer semi-conducting layer:	yes
Screen:	yes
Lead sheath:	no
Concentric conductor:	Copper
Nominal cross section concentric conductor:	50 mm²
Armouring:	no
Material outer sheath:	Polyolefin
Specification material outer sheath:	Polyethylene (PE)
Colour outer sheath:	Black
Cable geometry:	Round
Conductive coating:	no
Longitudinal water blocking conductors:	no
Longitudinal water blocking screen:	yes
Reaction-to-fire according to EN 13501-6: Class:	Fca
Reaction-to-fire according to EN 13501-6: Smoke production:	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:	None
Reaction-to-fire according to EN 13501-6: Acidity:	None
Halogen free according to EN 60754-1/2:	no
Halogen free according to EN IEC 60754-2:	no
Flame retardant:	No
Low smoke (according to EN 61034-2):	no
Low smoke according to EN IEC 61034-2:	no
Insulation integrity according to IEC 60331:	no
Oil resistant (according to IEC 60811-404):	no
Outer diameter approx.:	40.0 mm
Min. permitted bending radius, stationary application/permanent installation:	600 mm
Weight:	1999
Max. conductor temperature:	90 °C
Permitted cable outer temperature during assembling/handling:	-20 - 30 °C
Permitted cable outer temperature after assembling without vibration:	-35 - 90 °C
Suitable as installation cable:	no
Certified for shipboard application:	no
Suitable as medium-voltage cable:	yes
Suitable as high-voltage cable:	no
Certified as airport lighting cable:	no
Circuit integrity according to EN 50200:	No
Circuit integrity according to EN 50200 annex E:	no
Circuit integrity according to IEC 60331-3:	No
Circuit integrity according to IEC 60331-21:	no
Flame retardant according to EN 60332-1-2:	no
Flame retardant according to EN 60332-3-21 (Cat A F/R):	no
Flame retardant according to EN 60332-3-22 (Cat A):	no
Flame retardant according to EN 60332-3-23 (Cat B):	no
Flame retardant according to EN 60332-3-24 (Cat C):	no
Flame retardant according to EN 60332-3-25 (Cat D):	no
Halogen free according to EN 60754-1:	no
Halogen free according to EN 60754-2:	no
Halogen free according to EN 60754-3:	no

Additional information:

Information	Value
Updated:	2025-02-19 15:01:49
Files to download:	PICTURE_6503_2.JPG (35,31 KB) (Zdjęcie produktu, ) XRUHAKXS_(NA2XS(FL)2Y_12$20_kV DOP DOP000166 PL Rev07.pdf (57,64 KB) (Deklaracja CoC (Certificate of Conformity, wymagany w przypadku CPR), )
