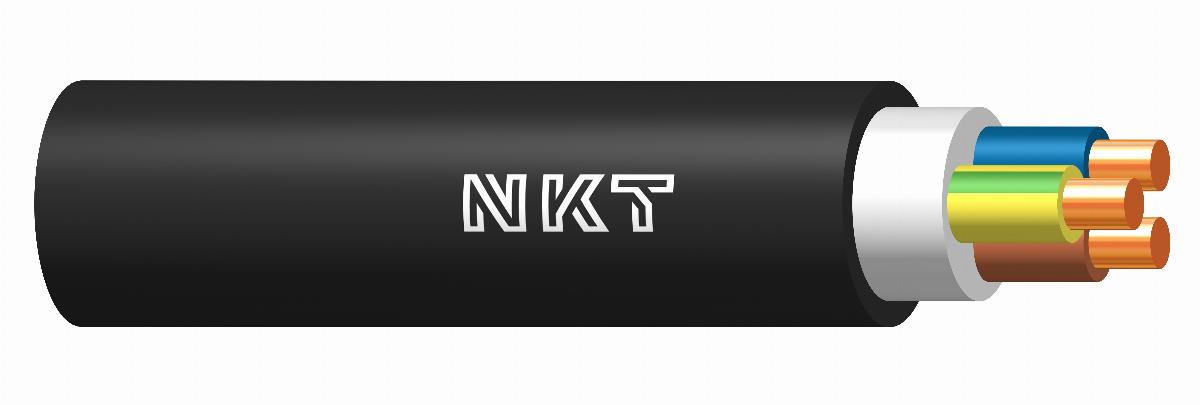

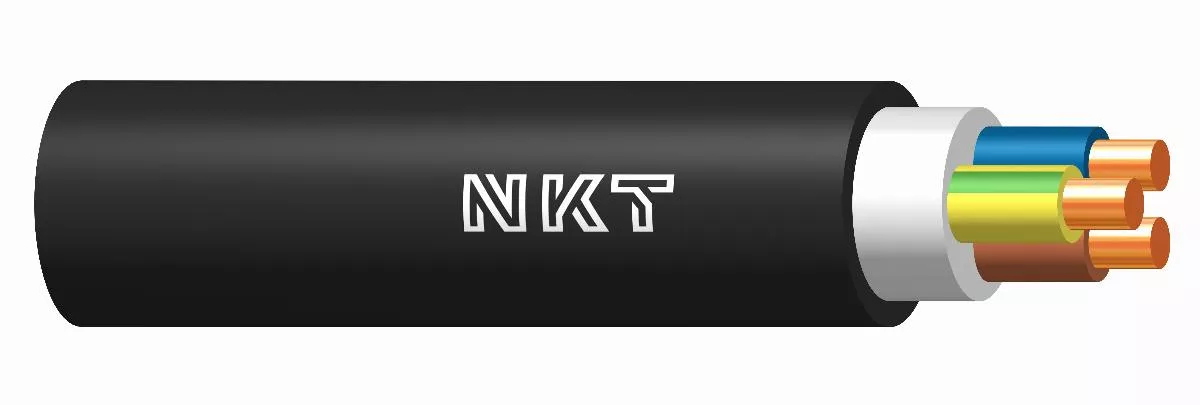

N2XH-J 0,6/1kV 5x1,5 RE B2ca s1a d1 a1 Kabel bezhalogenowy nierozprzestrzeniający płomienia z żyłą miedzianą i izolacją z usieciowanego tworzywa bezhalogenowego 1000 m
Information | Value |
---|---|
Supplier | NKT S.A. |
Symbol | 112411020D1000 |
GTIN(EAN) | 5907802042908 |
Price unit | kilometer |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Kable przeznaczone do przesyłu energii. Instalacje elektroenergetyczne wewnątrz pomieszczeń pod, w, na tynku, bezpośrednio w betonie, do zastosowań w obiektach gdzie występuje duża koncentracja osób lub/i sprzętu elektronicznego. Niniejsze wyroby mogą być instalowane wyłącznie przez osoby posiadające niezbędne wykształcenie i uprawnienia w zakresie prac elektroinstalacyjnych. Konstrukcja tych wyrobów jest zgodna ze wskazanymi normami przedmiotowymi. W trakcie prac instalacyjnych wymagane jest stosowanie się do obowiązujących przepisów w tym zakresie
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 100 |
ETIM class: | Power cable >= 1 kV, for permanent installation |
Conductor material: | Copper |
Conductor surface: | Bare |
Nominal cross section conductor: | 1.5 mm² |
Conductor category: | Class 1 = solid |
Conductor resistance at 20 °C: | 12.1 Ω/km |
Shape of conductor: | Round |
Number of cores: | 5 |
Material core insulation: | Polyolefin |
Specification core insulation: | Crosslinked polyethylene (XLPE) |
Core identification according to HD 308 S2: | yes |
Core identification: | Colour |
Laminated sheath: | no |
Fibre optic elements: | no |
With protective conductor: | yes |
Inner semi-conducting layer: | no |
Outer semi-conducting layer: | no |
Screen: | no |
Drain wire: | no |
Lead sheath: | no |
Number of pilot/reduced conductors: | 0 |
Concentric conductor: | None |
Armouring: | no |
Material outer sheath: | Polyolefin |
Specification material outer sheath: | Other |
Colour outer sheath: | Black |
Cable geometry: | Round |
Conductive coating: | no |
Longitudinal water blocking conductors: | no |
Longitudinal water blocking screen: | no |
Reaction-to-fire according to EN 13501-6: Class: | B2ca |
Reaction-to-fire according to EN 13501-6: Smoke production: | s1 |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d1 |
Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
Halogen free according to EN 60754-1/2: | yes |
Halogen free according to EN IEC 60754-2: | yes |
Flame retardant: | According to IEC/EN 60332-1-2 |
Low smoke (according to EN 61034-2): | yes |
Low smoke according to EN IEC 61034-2: | yes |
Insulation integrity according to IEC 60331: | no |
Insulation integrity: | None |
Circuit integrity: | None |
Oil resistant (according to IEC 60811-404): | no |
Outer diameter approx.: | 11.50 mm |
Weight: | 202 kg/km |
Max. conductor temperature: | 90 °C |
Permitted cable outer temperature after assembling without vibration: | -40 - 70 °C |
Nominal voltage U0: | 0.6 kV |
Nominal voltage U: | 1 kV |
Suitable as installation cable: | yes |
Certified for shipboard application: | no |
Suitable as medium-voltage cable: | no |
Suitable as high-voltage cable: | no |
Certified as airport lighting cable: | no |
Circuit integrity according to EN 50200: | No |
Circuit integrity according to EN 50200 annex E: | no |
Circuit integrity according to IEC 60331-3: | No |
Circuit integrity according to IEC 60331-21: | no |
Flame retardant according to EN 60332-1-2: | yes |
Flame retardant according to EN 60332-3-21 (Cat A F/R): | no |
Flame retardant according to EN 60332-3-22 (Cat A): | no |
Flame retardant according to EN 60332-3-23 (Cat B): | no |
Flame retardant according to EN 60332-3-24 (Cat C): | no |
Flame retardant according to EN 60332-3-25 (Cat D): | no |
Halogen free according to EN 60754-1: | yes |
Halogen free according to EN 60754-2: | yes |
Halogen free according to EN 60754-3: | yes |
