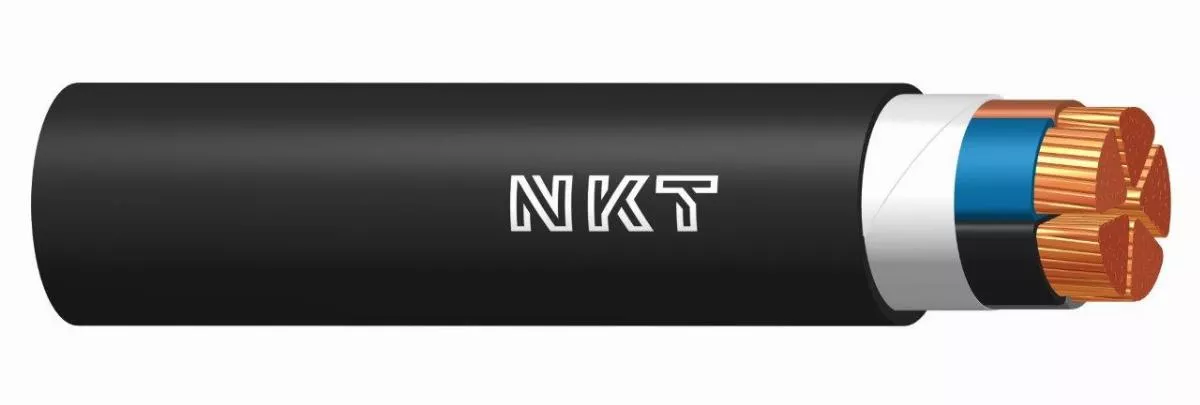

YKY 4x16 RE Kabel elektroenergetyczny z żyłą miedzianą i izolacją PVC
| Information | Value |
|---|---|
| Supplier | NKT S.A. |
| Symbol | 112194006 |
| GTIN(EAN) | 8591462018402 |
| Price unit | kilometer |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
kable przeznaczone do układania na stałe, wewnątrz pomieszczeń oraz na zewnątrz, bezpośrednio w gruncie oraz betonie.
Niniejsze wyroby mogą być instalowane wyłącznie przez osoby posiadające niezbędne wykształcenie i uprawnienia w zakresie prac elektroinstalacyjnych. Konstrukcja tych wyrobów jest zgodna ze wskazanymi normami przedmiotowymi. W trakcie prac instalacyjnych wymagane jest stosowanie się do obowiązujących przepisów w tym zakresie.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 912 kg |
| ETIM class: | Power cable >= 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 16 mm² |
| Conductor category: | Class 1 = solid |
| Conductor resistance at 20 °C: | 1,15 |
| Shape of conductor: | Round |
| Number of cores: | 4 |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification according to HD 308 S2: | yes |
| Core identification: | Colour |
| Laminated sheath: | no |
| Fibre optic elements: | no |
| Inner semi-conducting layer: | no |
| Outer semi-conducting layer: | no |
| Screen: | no |
| Drain wire: | no |
| Lead sheath: | no |
| Number of pilot/reduced conductors: | 0 |
| Concentric conductor: | None |
| Armouring: | no |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Black |
| Cable geometry: | Round |
| Conductive coating: | no |
| Longitudinal water blocking conductors: | no |
| Longitudinal water blocking screen: | no |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN 60754-1/2: | no |
| Halogen free according to EN IEC 60754-2: | no |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Low smoke (according to EN 61034-2): | no |
| Low smoke according to EN IEC 61034-2: | no |
| Insulation integrity according to IEC 60331: | no |
| Oil resistant (according to IEC 60811-404): | no |
| Outer diameter approx.: | 19,2 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 230 mm |
| Weight: | 894 |
| Max. conductor temperature: | 70 °C |
| Permitted cable outer temperature during assembling/handling: | -5 - 40 °C |
| Permitted cable outer temperature after assembling without vibration: | -35 - 70 °C |
| Nominal voltage U0: | 0,6 kV |
| Nominal voltage U: | 1 kV |
| Suitable as installation cable: | no |
| Certified for shipboard application: | no |
| Suitable as medium-voltage cable: | no |
| Suitable as high-voltage cable: | no |
| Certified as airport lighting cable: | no |
| Circuit integrity according to EN 50200: | No |
| Circuit integrity according to EN 50200 annex E: | no |
| Circuit integrity according to IEC 60331-3: | No |
| Circuit integrity according to IEC 60331-21: | no |
| Flame retardant according to EN 60332-1-2: | yes |
| Flame retardant according to EN 60332-3-21 (Cat A F/R): | no |
| Flame retardant according to EN 60332-3-22 (Cat A): | no |
| Flame retardant according to EN 60332-3-23 (Cat B): | no |
| Flame retardant according to EN 60332-3-24 (Cat C): | no |
| Flame retardant according to EN 60332-3-25 (Cat D): | no |
| Halogen free according to EN 60754-1: | no |
| Halogen free according to EN 60754-2: | no |
| Halogen free according to EN 60754-3: | no |
