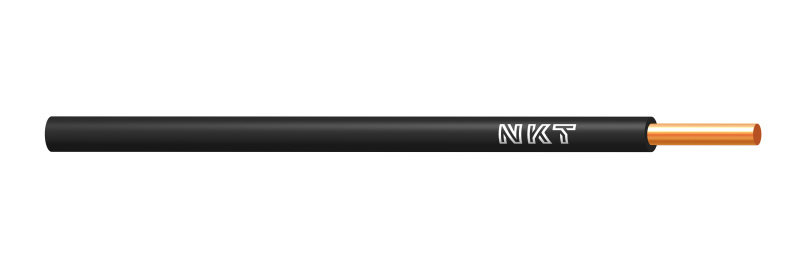

H07V-U 1x4 czarny
| Information | Value |
|---|---|
| Supplier | NKT S.A. |
| Symbol | 11091002 |
| GTIN(EAN) | 5907802001325 |
| Price unit | kilometer |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price |
from 1,19 zł
/ m from 1 194,59 zł / km (971,21 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przewody przeznaczone do obwodów sygnalizacyjnych i kontrolnych, do układania na stałe w rurach instalacyjnych lub wewnatrz urządzeń elektrycznychNiniejsze wyroby mogą być instalowane wyłącznie przez osoby posiadające niezbędne wykształcenie i uprawnienia w zakresie prac elektroinstalacyjnych. Konstrukcja tych wyrobów jest zgodna ze wskazanymi normami przedmiotowymi. W trakcie prac instalacyjnych wymagane jest stosowanie się do obowiązujących przepisów w tym zakresie.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 45 g |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Nominal cross section conductor: | 4 mm² |
| Conductor category: | Class 1 = solid |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Screen: | yes |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Low smoke (according to EN 61034-2): | yes |
| Outer diameter approx.: | 3.73 mm |
| Permitted cable outer temperature after assembling without vibration: | -40 - +70 °C |
| Nominal voltage U0: | 450 V |
| Nominal voltage U: | 750 V |
| Halogen free according to EN 60754-1/2: | yes |
| Low temperature resistant according to EN 60811-504+505+506: | yes |
| Oil resistant according to EN IEC 60811-404: | yes |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Max. conductor temperature: | 70 °C |
| Drain wire: | yes |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | None |
| Specification material outer sheath: | Other |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Insulation integrity: | No |
| Min. permitted bending radius, stationary application/permanent installation: | 5 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - centrala Legionowo
Legionowo Michałów-Reginów, Warszawska 10B
Legionowo Michałów-Reginów, Warszawska 10B
Distance:
0.095 kilometra
1,36 zł/m
(1 355,85 zł/km)
(1 355,85 zł/km)
DORIAN DKL Sp. z o.o. - oddział Ciechanów
Ciechanów, Niechodzka 3
Ciechanów, Niechodzka 3
Distance:
0.132 kilometra
1,23 zł/m
(1 226,53 zł/km)
(1 226,53 zł/km)
DORIAN DKL Sp. z o.o. - oddział Mława
Mława, Rynkowa 16
Mława, Rynkowa 16
Distance:
0.466 kilometra
1,19 zł/m
(1 194,59 zł/km)
(1 194,59 zł/km)
Buy / order
Wholesaler
Address
Distance
Available
Actions
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-02-03 06:03:47 |
| Files to download: |
