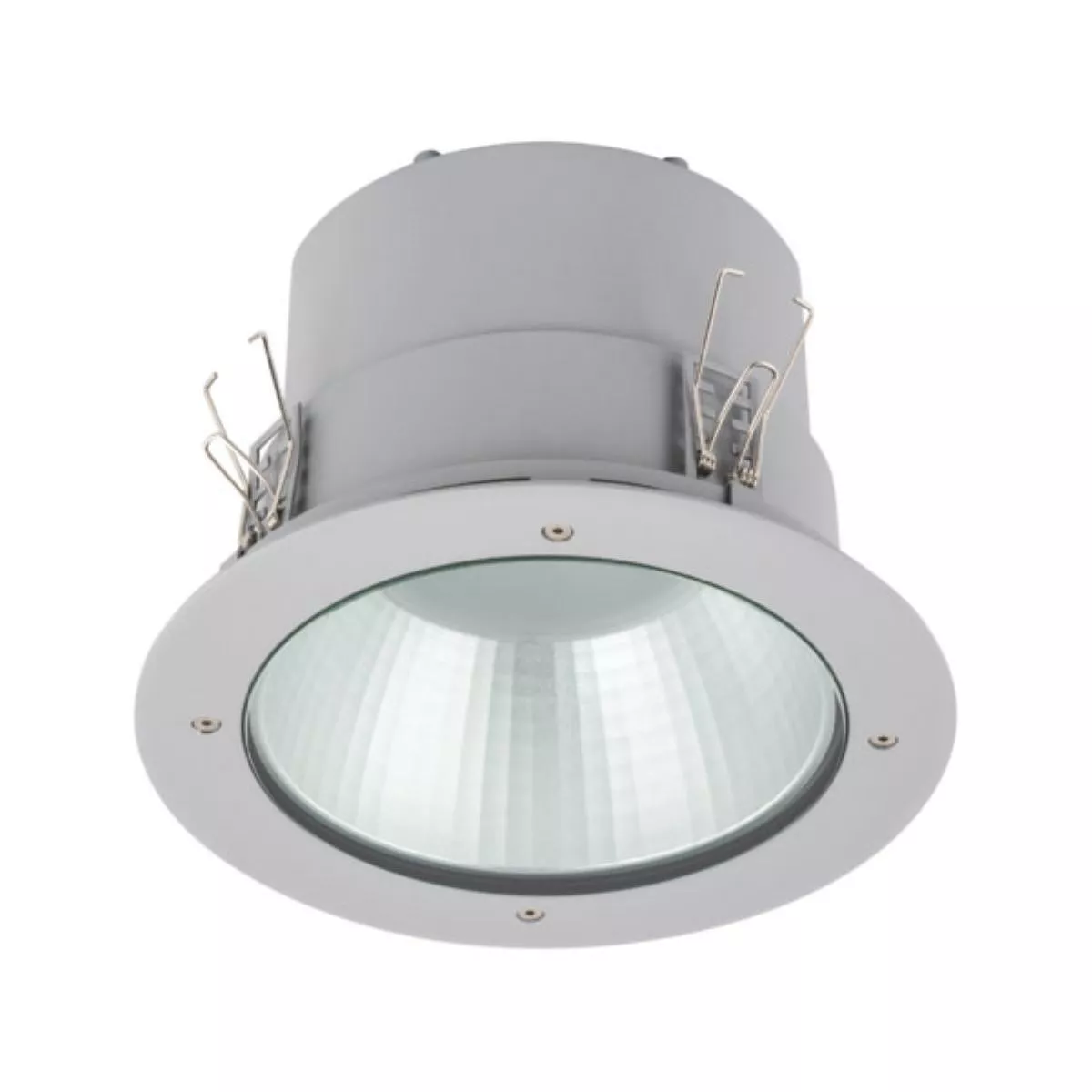

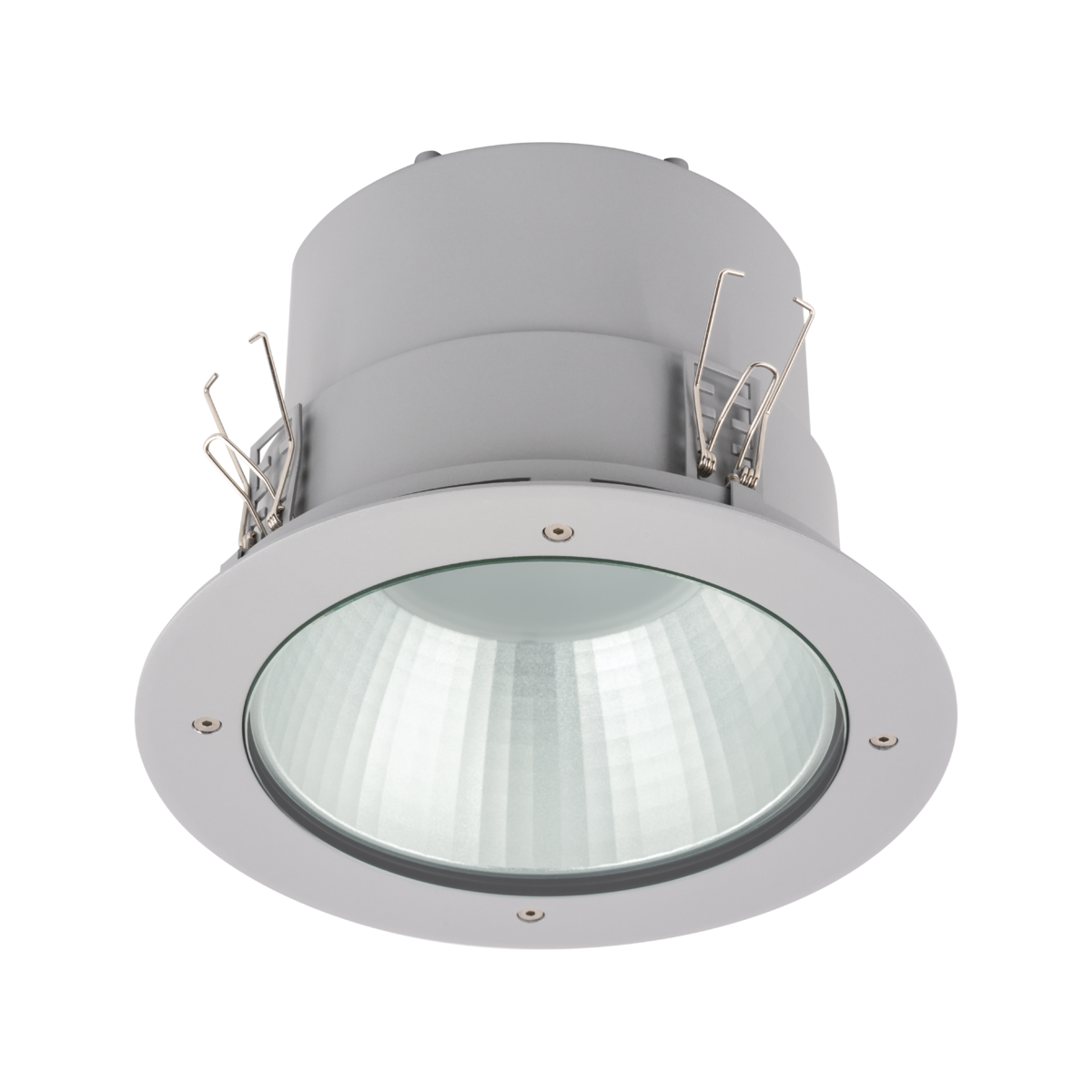

Oprawa AVALON LED p/t ED 1900lm/840 IP65 25 W
| Information | Value |
|---|---|
| Supplier | LUG Light Factory Sp. z o.o. |
| Symbol | 140090.5L04.301 |
| GTIN(EAN) | 5900530116880 |
| Price unit | piece |
| Catalog price | 1 503,06 zł (1 222,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,6 kg |
| Gross weight: | 4 kg |
| ETIM class: | Downlight/spot/floodlight |
| Suitable for surface mounting: | no |
| Suitable for built-in mounting: | yes |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | yes |
| Suitable for traverse mounting: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for light-track mounting: | no |
| Suitable for clamp-mounting: | no |
| Suitable for low voltage cable system: | no |
| Adjustability: | Not adjustable |
| With movement sensor: | no |
| With light sensor: | no |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Housing material: | Steel |
| Surface protection: | Powder coating |
| Housing colour: | Grey |
| Material cover: | Glass transparent |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| LED nominal current at constant current: | 700 - 700 mA |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Dimming depending on control gear: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |
| Reflector: | Matt |
| Light distributor: | Reflector |
| Light sharing: | Symmetric |
| Beam angle: | Wide beam 41-80° |
| Light outlet: | Direct |
| Energy efficiency class of the built-in lamp: | A++, A+, A (LED) |
| Rated life time L80/B10 at 25 °C: | 50000 h |
| Degree of protection (IP): | IP65 |
| Impact strength: | IK10 |
| Protection class: | I |
| Rated ambient temperature according to IEC 62722-2-1: | -20 - 35 °C |
| Max. system power: | 25 W |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 80-89 |
| Luminous flux: | 1900 - 1900 lm |
| Rated luminous flux according to IEC 62722-2-1: | 1900 lm |
| Width: | 278 mm |
| Height/depth: | 195 mm |
| Outer diameter: | 278 mm |
| Built-in width: | 258 mm |
| Built-in height/depth: | 250 mm |
| Type of wiring: | Suitable for through wiring |
| Conductor cross section: | 1.5 mm² |
| Connectable conductor cross section: | 1.5 - 1.5 mm² |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Luminaire efficacy: | 76 lm/W |
| Covering of the luminaire with thermally insulating material possible: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Colour consistency (McAdam ellipse): | SDCM3 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-09-12 14:53:23 |
| Files to download: |
