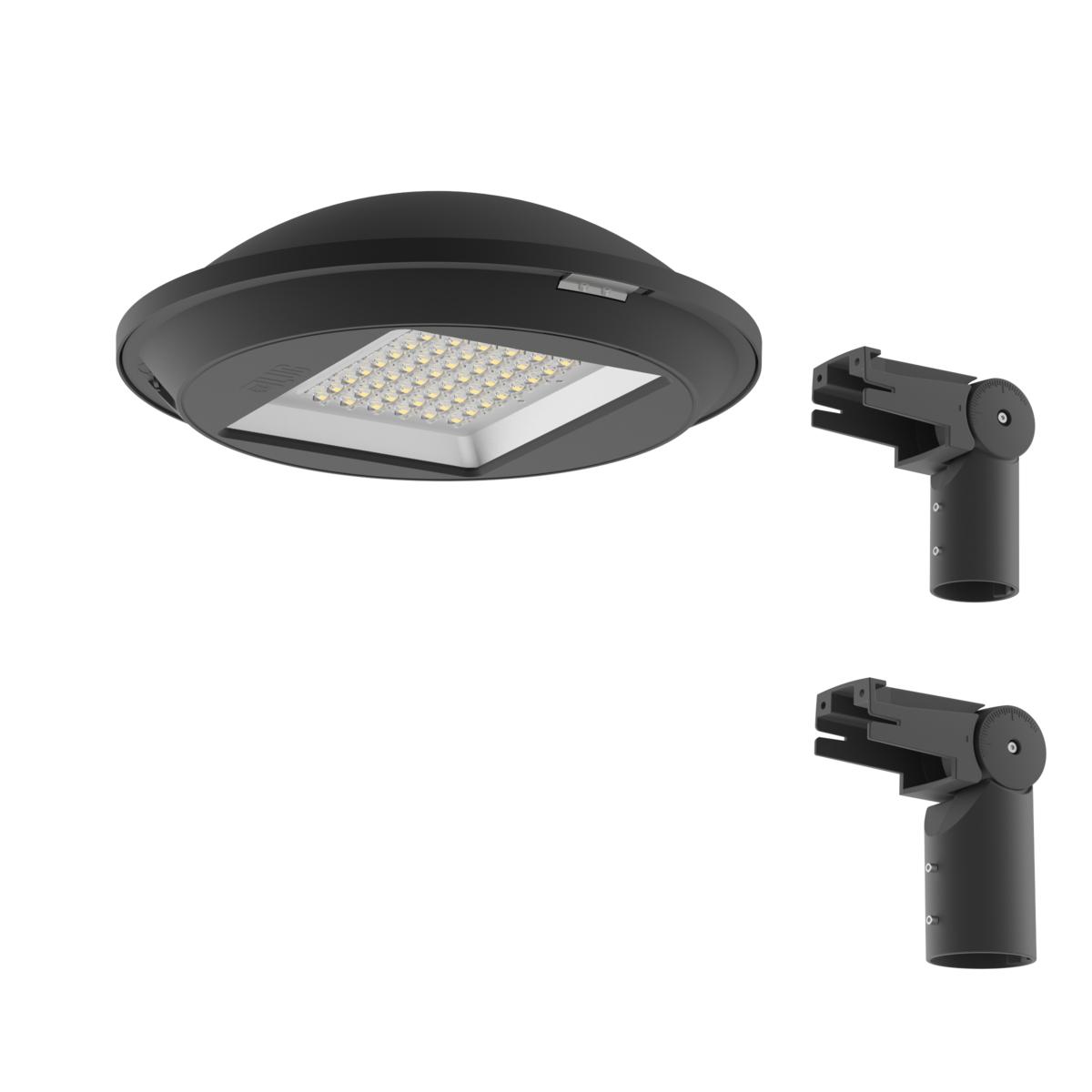

Oprawa SAVA M ED 13950lm/740 IP66 O9 grafit II kl. 102 W
| Information | Value |
|---|---|
| Supplier | LUG Light Factory Sp. z o.o. |
| Symbol | 130845.5L162.090 |
| Price unit | piece |
| Catalog price | 2 858,52 zł (2 324,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,4 kg |
| Gross weight: | 10 kg |
| ETIM class: | Luminaire for streets and places |
| Mounting method: | Post top/side entry |
| With light source: | yes |
| Housing material: | Aluminium |
| Surface protection: | Powder coating |
| Housing colour: | Grey |
| Material cover: | Glass transparent |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| LED nominal current at constant current: | 450 - 450 mA |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming programmable: | no |
| Dimming Zigbee: | yes |
| No dim function: | yes |
| Energy efficiency class of the built-in lamp: | A++, A+, A (LED) |
| Rated life time L90/B10 at 25 °C: | 100000 h |
| Degree of protection (IP): | IP66 |
| Light distributor: | Diffuser lens/optic/panel |
| Adjustable optics: | no |
| Suitable for spigot size: | 4000 - 12000 mm |
| Impact strength: | IK09 |
| Protection class: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | -40 - 50 °C |
| With radio control: | no |
| Constant light output (CLO): | no |
| With light regulation program control: | no |
| With connection cable: | yes |
| Max. system power: | 23 W |
| Rated luminous flux according to IEC 62722-2-1: | 3400 lm |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 70-79 |
| Luminaire efficacy: | 148 lm/W |
| Width: | 250 mm |
| Height/depth: | 100 mm |
| Length: | 550 mm |
| Type of wiring: | Suitable for through wiring |
| Conductor cross section: | 2.5 mm² |
