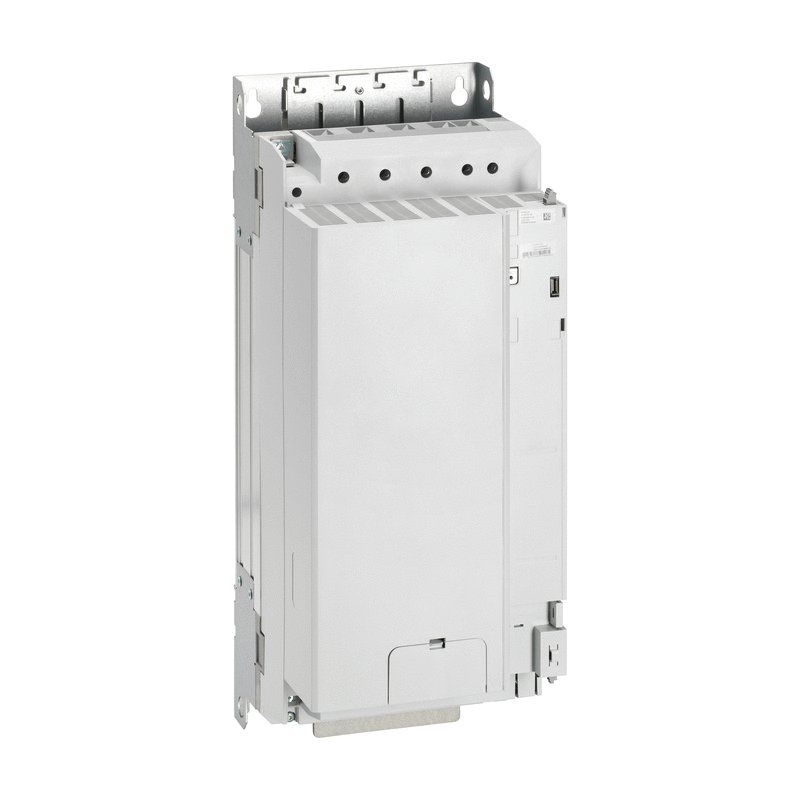

Przemiennik częstotliwości, moc silnika 55kW (121A), wejście 3F: 400-480VAC, wyjście 3F: 480VAC, filtr EMC, bez modułu logicznego i jednostki sterującej
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | VLB30550A480XX |
GTIN(EAN) | 8013975227763 |
Price unit | piece |
Catalog price | 43 446,06 zł (35 322,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 24,44 kg |
ETIM class: | Frequency converter =< 1 kV |
Number of phases input: | 3 |
Number of phases output: | 3 |
Type of converter: | U converter |
Mains frequency: | 50/60 Hz |
Degree of protection (IP): | IP20 |
Mains voltage: | 400 - 480 V |
Supporting protocol for BACnet: | no |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | yes |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | yes |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for AS-Interface Safety at Work: | no |
Application in domestic- and commercial area permitted: | no |
Application in industrial area permitted: | no |
Integrated breaking resistance: | no |
4-quadrant operation possible: | no |
Supporting protocol for INTERBUS-Safety: | no |
Supporting protocol for SERCOS: | no |
With PC connection: | yes |
Supporting protocol for other bus systems: | yes |
Supporting protocol for SUCONET: | no |
Supporting protocol for DeviceNet: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | yes |
Supporting protocol for KNX: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | no |
Supporting protocol for PROFIBUS: | yes |
Supporting protocol for ASI: | no |
Supporting protocol for TCP/IP: | no |
With optical interface: | no |
Supporting protocol for LON: | no |
With control element: | yes |
Nominal output current I2N: | 110 A |
Max. output voltage: | 480 V |
Relative symmetric net frequency tolerance: | 10 % |
Relative symmetric net voltage tolerance: | 10 % |
Max. output at quadratic load at rated output voltage: | 55 kW |
Max. output at linear load at rated output voltage: | 55 kW |
Max. output frequency: | 599 Hz |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces USB: | 1 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces industrial Ethernet: | 0 |
Number of analogue outputs: | 1 |
Number of analogue inputs: | 2 |
Number of digital outputs: | 2 |
Number of digital inputs: | 5 |
Depth: | 265 mm |
Height: | 623 mm |
Width: | 250 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-17 14:54:09 |
Files to download: |
