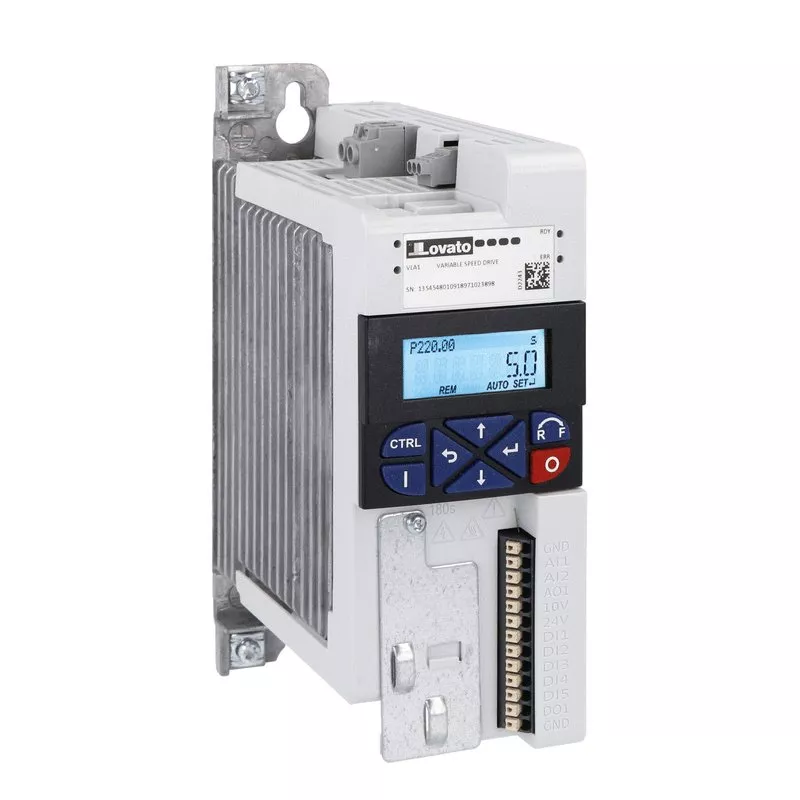

Przemiennik częstotliwości, typ VLA1, zasilanie jednofazowe 200...240VAC (50/60HZ). Wbudowany filtr EMC kat. C2, 0.4KW
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | VLA104A240 |
| GTIN(EAN) | 8013975232637 |
| Price unit | piece |
| Catalog price | 1 273,05 zł (1 035,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 750 g |
| ETIM class: | Frequency converter =< 1 kV |
| Number of phases input: | 1 |
| Number of phases output: | 3 |
| Mains frequency: | 50/60 Hz |
| Degree of protection (IP): | IP20 |
| Mains voltage: | 200 - 240 V |
| Supporting protocol for BACnet: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Application in domestic- and commercial area permitted: | yes |
| Application in industrial area permitted: | yes |
| Integrated breaking resistance: | no |
| 4-quadrant operation possible: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for SERCOS: | no |
| With PC connection: | no |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for TCP/IP: | no |
| With optical interface: | no |
| Supporting protocol for LON: | no |
| With control element: | yes |
| Nominal output current I2N: | 2.4 A |
| Max. output voltage: | 240 V |
| Relative symmetric net frequency tolerance: | 10 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Max. output at quadratic load at rated output voltage: | 0.4 kW |
| Max. output at linear load at rated output voltage: | 0.4 kW |
| Max. output frequency: | 599 Hz |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces USB: | 1 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of analogue outputs: | 1 |
| Number of analogue inputs: | 2 |
| Number of digital outputs: | 2 |
| Number of digital inputs: | 5 |
| Depth: | 130 mm |
| Height: | 183 mm |
| Width: | 60 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
LOVATO ELECTRIC S.P.A.
Via Don E. Mazza 12, 24020 GORLE (Bergamo), Włochy
tel: 717979010 mail: info@lovatoelectric.pl
|
| Updated: | 2024-12-02 15:00:36 |
| Files to download: |
