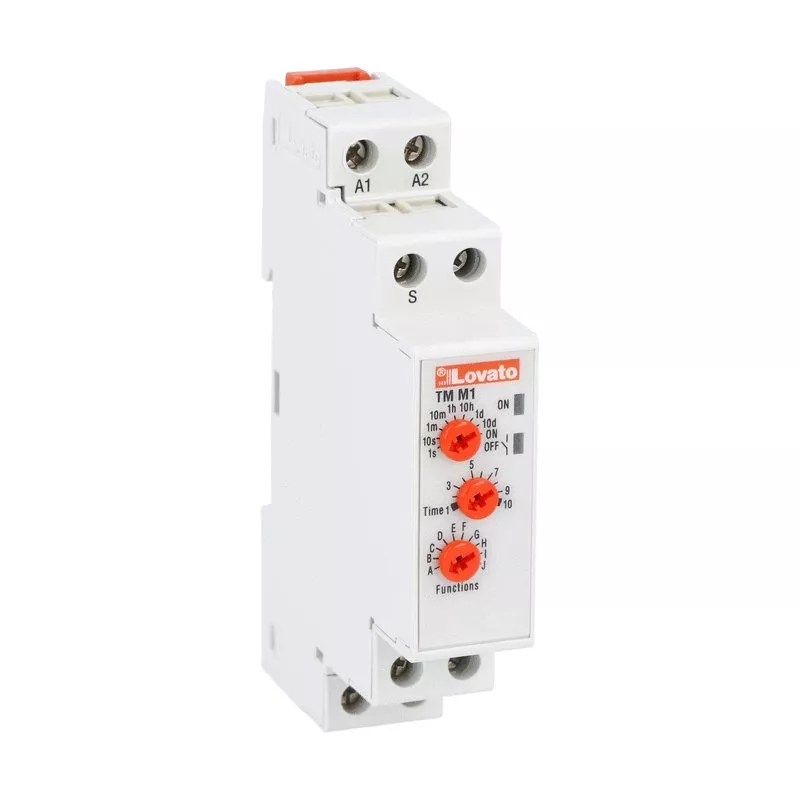

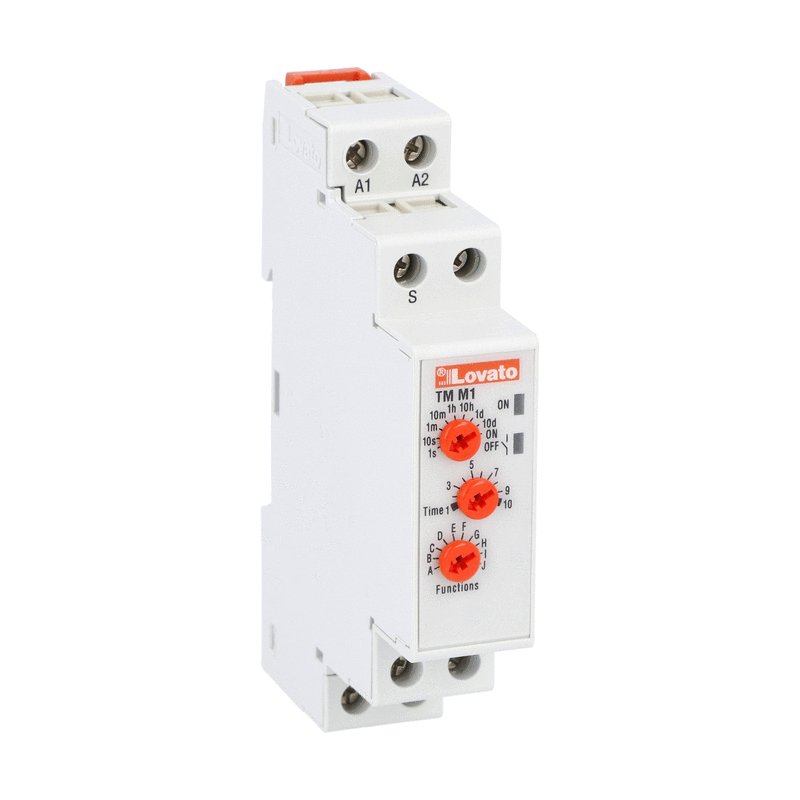

Przekaźnik czasowy, wielofunkcyjny, wielozakresowy, 1 zestyk, napięcie zasilania pomocniczego 12…240VAC/DC, wykonanie modułowe
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | TMM1 |
GTIN(EAN) | 8013975147108 |
Price unit | piece |
Catalog price | 249,69 zł (203,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 86 g |
ETIM class: | Timer relay |
Voltage type for actuating: | AC/DC |
Type of electric connection: | Screw connection |
Rated control supply voltage DC: | 12 - 240 V |
Rated control supply voltage AC 60 Hz: | 12 - 240 V |
Rated control supply voltage AC 50 Hz: | 12 - 240 V |
Time range: | 0.1 - 864000 s |
Suitable for DIN rail (top hat rail) mounting: | yes |
Outputs, reversible delayed/undelayed: | no |
Pluggable on auxiliary contact block: | no |
Function pulse shaping: | no |
Function floating contact on de-energization: | no |
Function delay on de-energization: | yes |
Function star-delta: | no |
Function floating contact on energization: | no |
Function delay-on energization: | yes |
With semiconductor output: | no |
Clock function, starting with pulse, variable: | yes |
Clock function, starting with pause, variable: | yes |
Function flashing, starting with pulse, fixed time: | yes |
Function flashing, starting with pause, fixed time: | yes |
Suitable as remote control: | no |
Remote operation possible: | no |
With plug-in socket: | no |
Suitable for front mounting: | no |
Number of outputs, delayed, change-over contact: | 1 |
Number of outputs, delayed, normally open contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, normally closed contact: | 0 |
Depth: | 64.9 mm |
Height: | 104.7 mm |
Width: | 17.5 mm |
