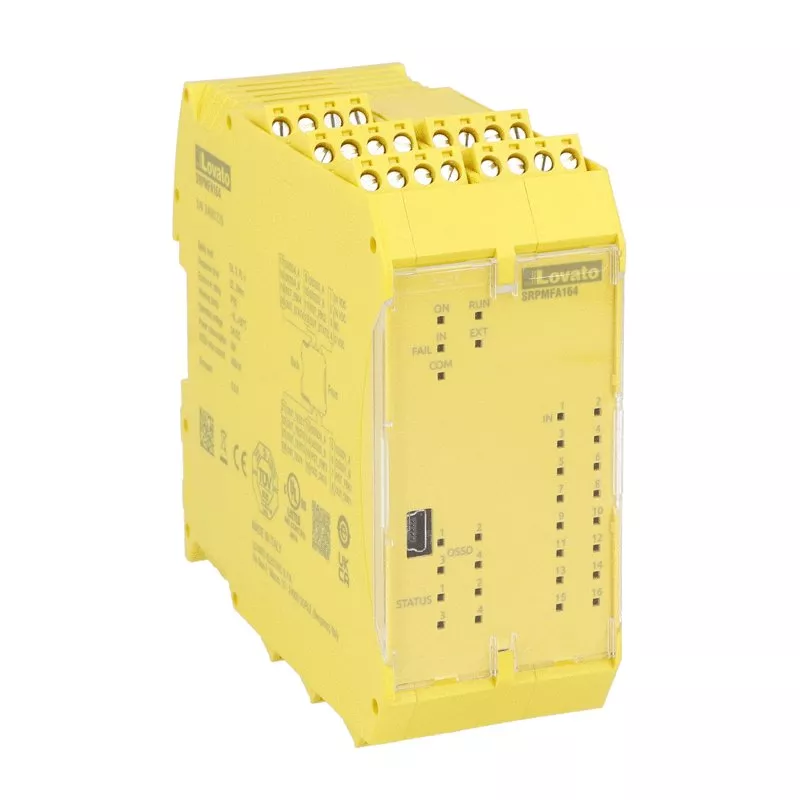

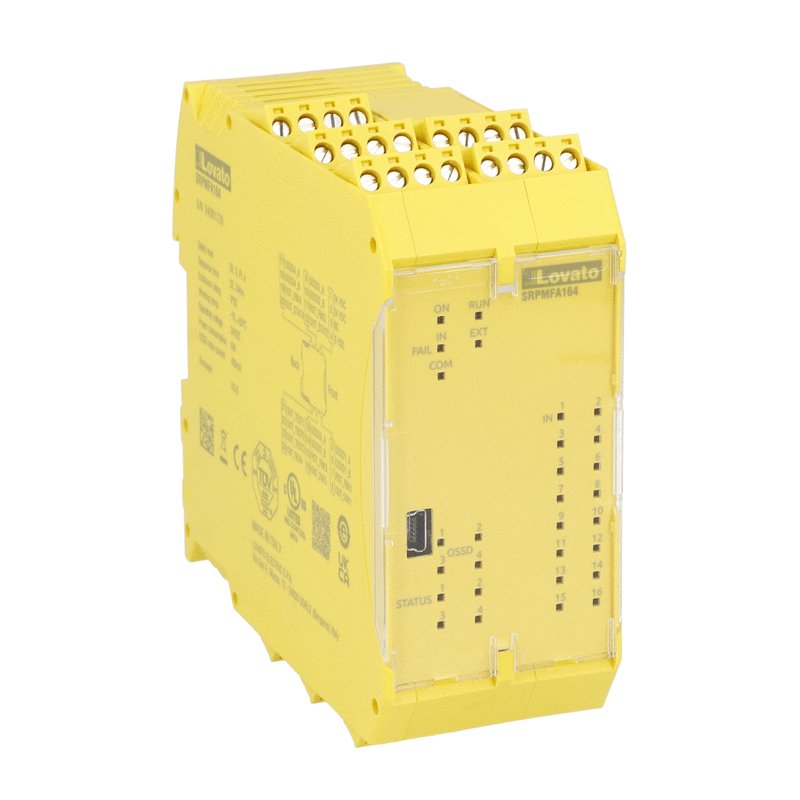

Programowalny przekaźnik bezpieczeństwa serii SRP, wielofunkcyjny, zasilanie pomocnicze 24VDC, 16 wejść, 4 wyjścia
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | SRPMFA164 |
| GTIN(EAN) | 8013975321195 |
| Price unit | piece |
| Catalog price | 3 836,37 zł (3 119,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 320 g |
| ETIM class: | Device for monitoring of safety-related circuits |
| SIL according to IEC 61508: | 3 |
| Performance level according to EN ISO 13849-1: | Level e |
| Type of safety according to IEC 61496-1: | 4 |
| Evaluation inputs: | 1-channel or 1- and 2-channel |
| Type of electric connection: | Screw connection |
| Model: | Basic device |
| Rated control supply voltage DC: | 20 - 28 V |
| With approval for TÜV: | yes |
| Suitable for monitoring of valves: | yes |
| Suitable for monitoring of tactile sensors: | yes |
| Suitable for monitoring of position switches: | yes |
| Suitable for monitoring of optoelectronic protection equipment: | yes |
| Suitable for monitoring of emergency-stop circuits: | yes |
| Suitable for monitoring of proximity switches: | no |
| Suitable for monitoring of magnetic switches: | yes |
| With approval for BG BIA: | no |
| With muting function: | no |
| Rail mounting possible: | yes |
| With feedback circuit: | no |
| With start input: | yes |
| With detachable clamps: | no |
| With approval according to UL: | yes |
| Number of outputs, signalling function, delayed, semiconductors: | 4 |
| Number of outputs, signalling function, undelayed, semiconductors: | 4 |
| Number of outputs, signalling function, delayed, with contact: | 4 |
| Number of outputs, signalling function, undelayed, with contact: | 4 |
| Number of outputs, safety related, delayed, semiconductors: | 4 |
| Number of outputs, safety related, undelayed, semiconductors: | 4 |
| Number of outputs, safety related, delayed, with contact: | 4 |
| Number of outputs, safety related, undelayed, with contact: | 4 |
| Depth: | 114.5 mm |
| Height: | 108 mm |
| Width: | 45 mm |
