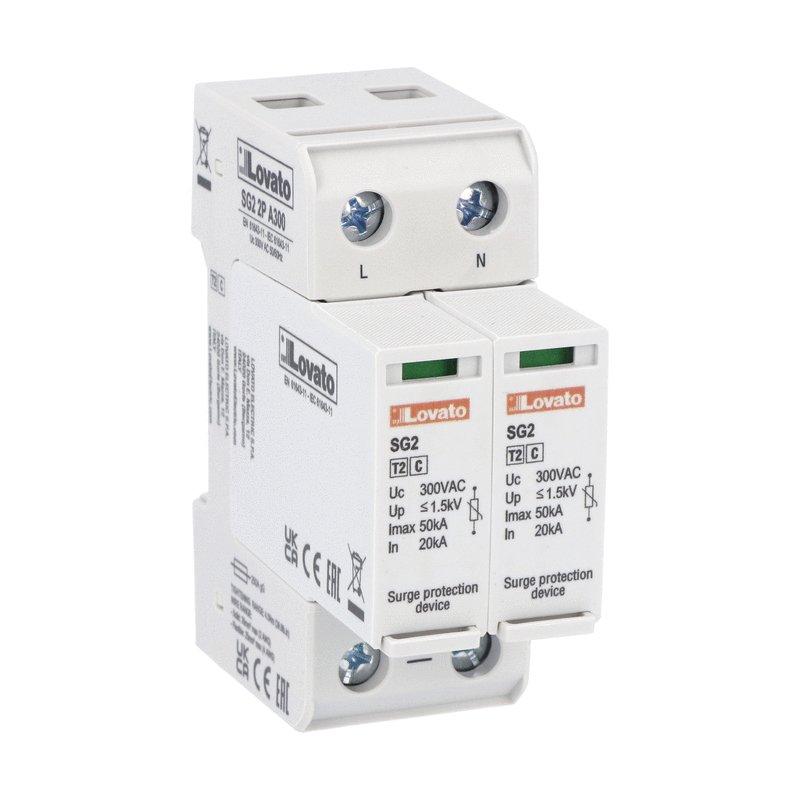

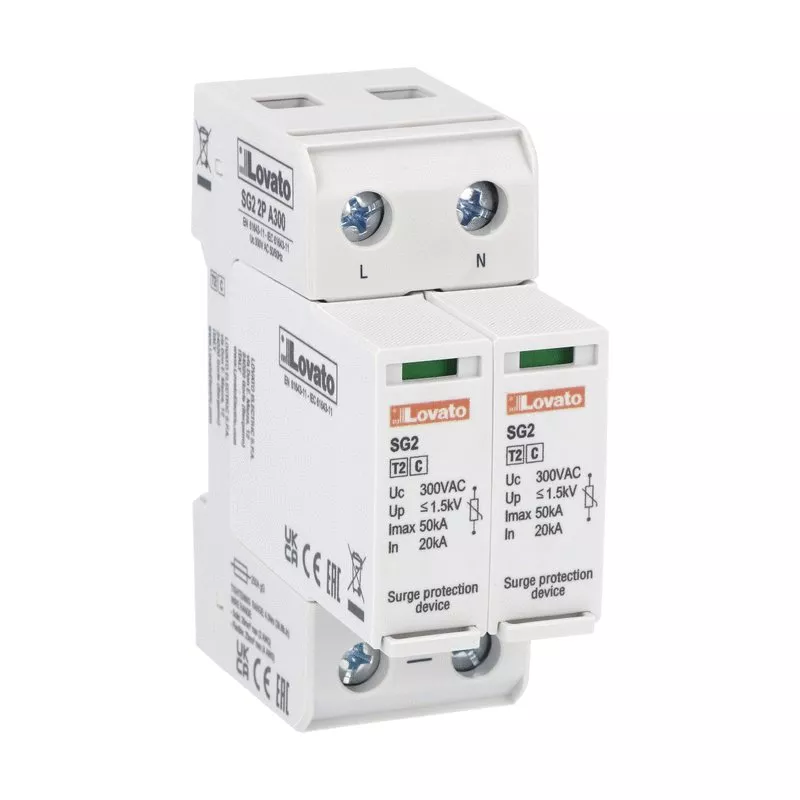

Ogranicznik przepięć, 2 pola bez zestyku sygnalizacyjnego, typ 2
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | SG22PA300 |
GTIN(EAN) | 8013975232743 |
Price unit | piece |
Catalog price | 499,38 zł (406,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 252 g |
ETIM class: | Surge protection device for power supply systems |
Degree of protection (IP): | IP20 |
Signalling at the device: | Optical |
Construction size: | 2 modular spacing |
Mounting method: | DIN rail (top hat rail) 35 mm |
Leakage-current free: | no |
Integrated short-circuit protection: | no |
System configuration TN-C-S: | no |
System configuration other: | no |
System configuration TT: | no |
System configuration TN-S: | yes |
System configuration TN-C: | no |
System configuration TN: | no |
System configuration IT: | no |
System configuration DC: | no |
Integrated backup fuse: | no |
Category type 2: | yes |
With remote signalling contact: | no |
Integrated short-circuit protection selective to fuse gG: | 50000 A |
Max. overcurrent protection device, series connection (fuse): | 50 A |
Max. overcurrent protection device, parallel connection (fuse): | 50 A |
Short-circuit breaking capacity (Isccr): | 50 kA |
Max. discharge surge current (8/20): | 50 kA |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Voltage protection level L-N: | 1500 kV |
Nominal voltage AC: | 240 V |
Nominal discharge surge current (8/20): | 20 kA |
Max. continuous voltage AC: | 300 V |
Voltage protection level: | 1500 kV |
Number of conductors (without earthing): | 2 |
