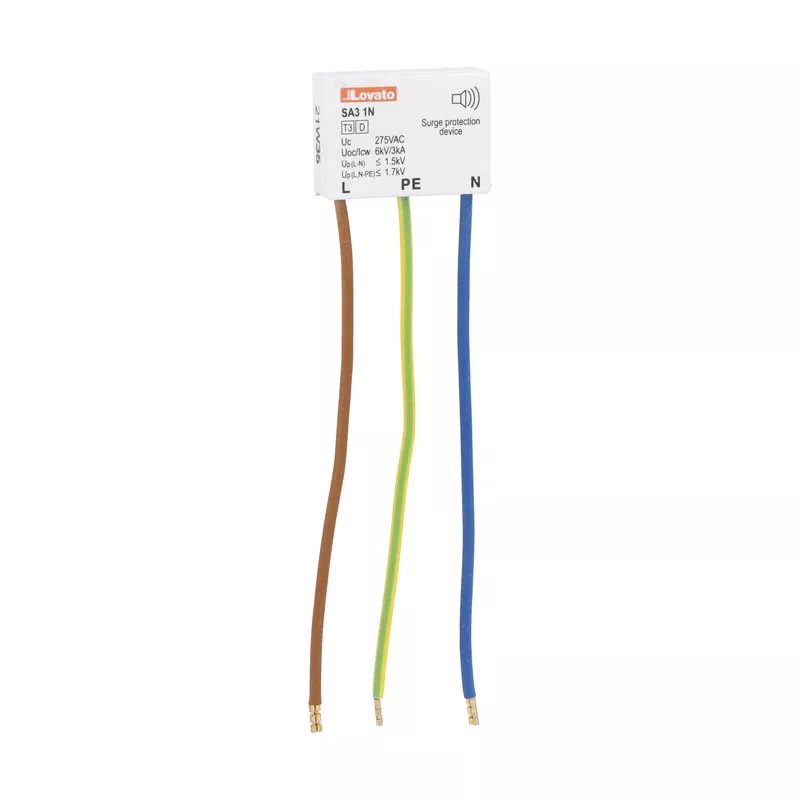

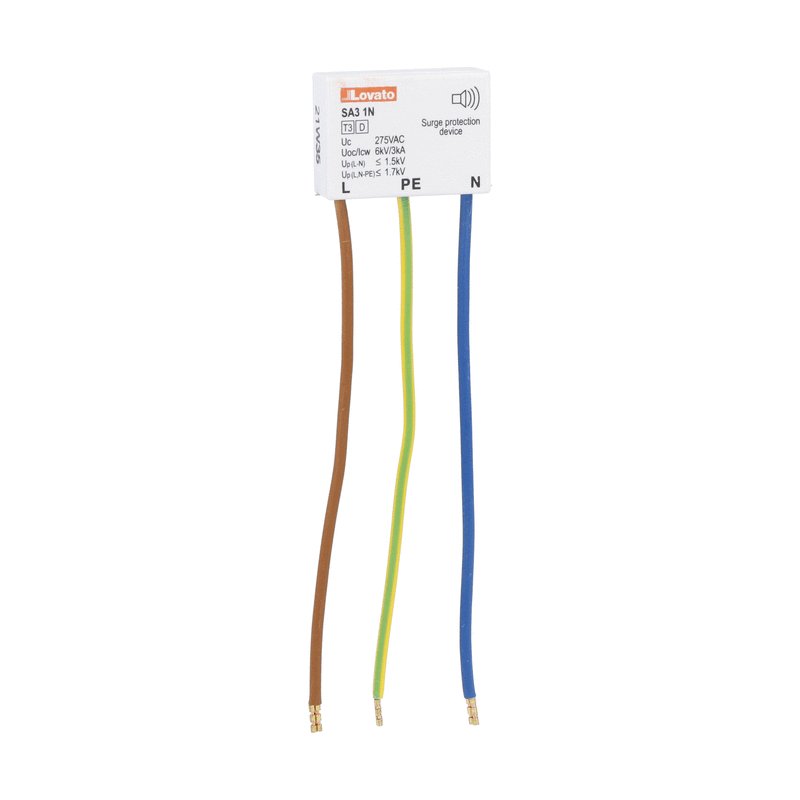

Ogranicznik przepięć typu D, wykonanie kompaktowe, udar kombinowany Uoc/Icw (1.2/50 μs, 8/20μs) 6kV/3kA, 1P+N, z sygnalizatorem dźwiękowym
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | SA31NA275MS |
| GTIN(EAN) | 8013975231043 |
| Price unit | piece |
| Catalog price | 394,83 zł (321,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 50 g |
| ETIM class: | Surge protection device for terminal equipment |
| Degree of protection (IP): | IP20 |
| Signalling at the device: | Acoustic |
| Mounting method: | Wall socket |
| With interference suppressor filter: | no |
| Category type 3: | yes |
| With remote signalling contact: | no |
| Max. overcurrent protection device, series connection (fuse): | 1 A |
| Max. overcurrent protection device, parallel connection (fuse): | 1 A |
| Max. conductor cross section flexible (fine-strand): | 1 mm² |
| Max. conductor cross section solid (solid, stranded): | 1 mm² |
| Voltage protection level L-PE/N-PE: | 1700 kV |
| Voltage protection level L-N: | 1500 kV |
| Nominal voltage AC: | 230 V |
| Max. continuous voltage AC: | 275 V |
| Voltage protection level: | 1500 kV |
| Number of poles: | 2 |
