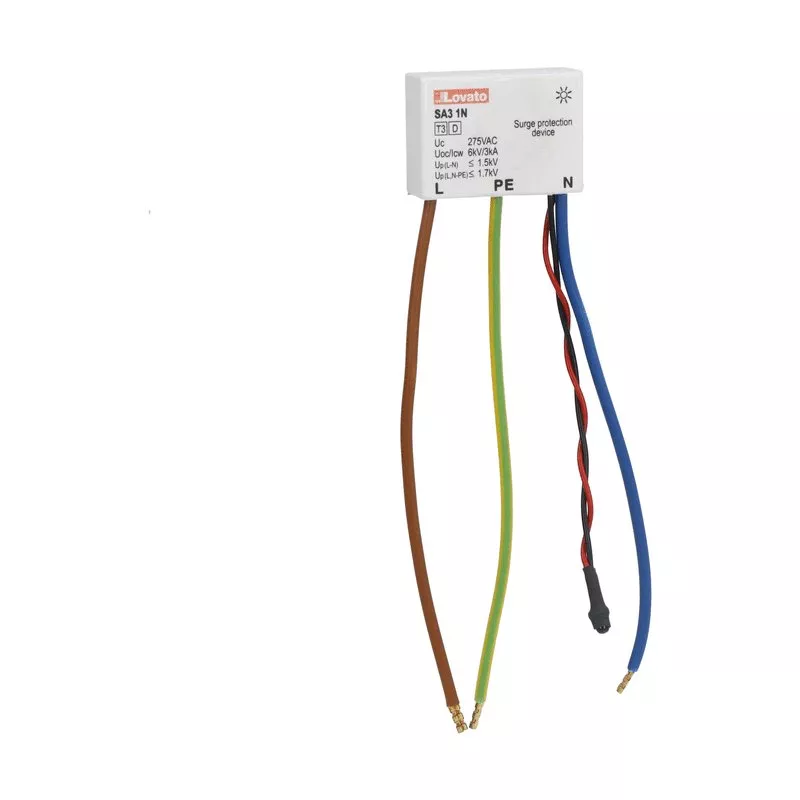

Ogranicznik przepięć typu D, wykonanie kompaktowe, udar kombinowany Uoc/Icw (1.2/50 μs, 8/20μs) 6kV/3kA, 1P+N, ze wskaźnikiem sygnalizacyjnym LED
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | SA31NA275ML |
GTIN(EAN) | 8013975231050 |
Price unit | piece |
Catalog price | 448,95 zł (365,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 50 g |
ETIM class: | Surge protection device for terminal equipment |
Degree of protection (IP): | IP20 |
Signalling at the device: | Optical |
Mounting method: | Wall socket |
With interference suppressor filter: | no |
Category type 3: | yes |
With remote signalling contact: | no |
Max. overcurrent protection device, series connection (fuse): | 1 A |
Max. overcurrent protection device, parallel connection (fuse): | 1 A |
Max. conductor cross section flexible (fine-strand): | 1 mm² |
Max. conductor cross section solid (solid, stranded): | 1 mm² |
Voltage protection level L-PE/N-PE: | 1700 kV |
Voltage protection level L-N: | 1500 kV |
Nominal voltage AC: | 230 V |
Max. continuous voltage AC: | 275 V |
Voltage protection level: | 1500 kV |
Number of poles: | 2 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacxek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-17 21:19:00 |
Files to download: |
