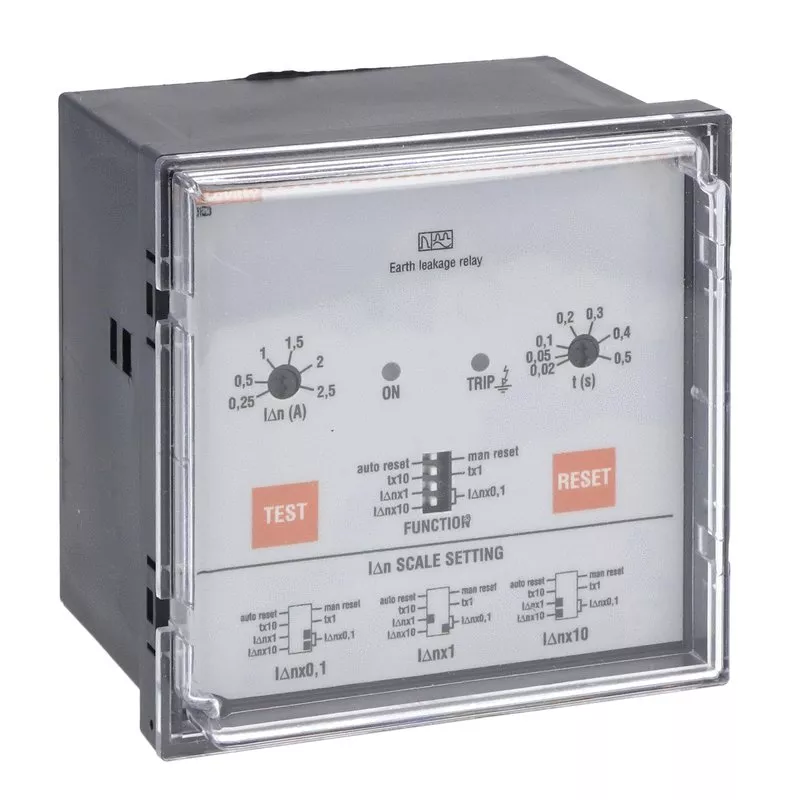

R1D415 Przekaźnik ziemnozwarciowy, montaż tablicowy
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | R1D415 |
| GTIN(EAN) | 8013975111123 |
| Price unit | piece |
| Catalog price | 1 730,61 zł (1 407,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 276 g |
| ETIM class: | Residual current monitoring relay |
| Type of electric connection: | Screw connection |
| Function: | For AC-current system |
| Response value amperage 1: | 25 - 25000 mA |
| Rated control supply voltage DC: | 110 - 125 V |
| Rated control supply voltage AC 60 Hz: | 110 - 415 V |
| Rated control supply voltage AC 50 Hz: | 110 - 415 V |
| Rated voltage: | 110 - 1000 V |
| Rated frequency: | 50 - 60 Hz |
| Indication of difference current: | yes |
| Error registration possible: | yes |
| With detachable clamps: | no |
| Number of contacts as change-over contact: | 1 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Min. adjustable delay-on energization time: | 0.02 s |
| Max. permitted delay-on energization time: | 5 s |
| Depth: | 75 mm |
| Height: | 96 mm |
| Width: | 96 mm |
