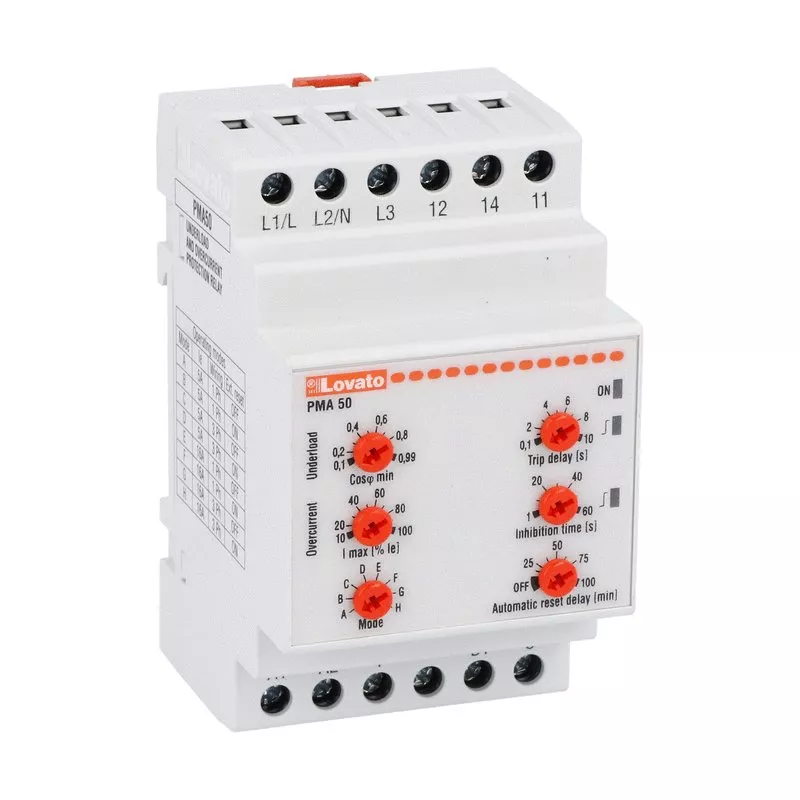

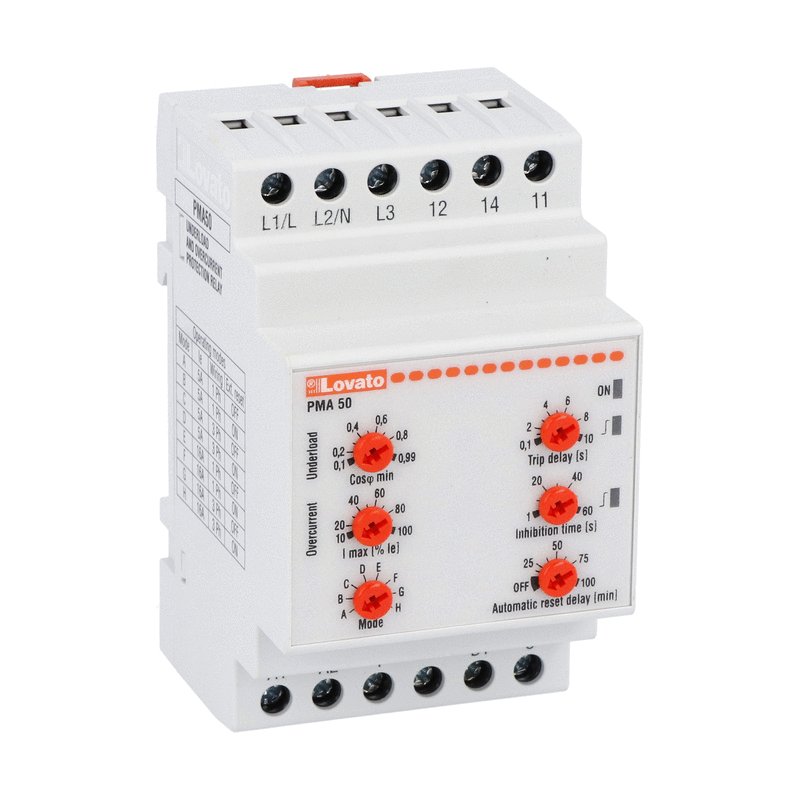

Przekaźnik nadzoru pompy, 380-415VAC
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | PMA50A415 |
| GTIN(EAN) | 8013975172858 |
| Price unit | piece |
| Catalog price | 1 273,05 zł (1 035,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 280 g |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Screw connection |
| Rated control supply voltage AC 60 Hz: | 380 - 415 V |
| Rated control supply voltage AC 50 Hz: | 380 - 415 V |
| Current measuring range: | 0.1 - 16 A |
| Function DC-current hysteresis: | no |
| Contains function DC-voltage overcurrent: | yes |
| Contains function DC-voltage under current: | no |
| Three-phase overcurrent possible: | no |
| Single-phase overcurrent possible: | yes |
| Three-phase under current possible: | no |
| Single-phase under current possible: | no |
| Three-phase hysteresis possible: | no |
| Single-phase hysteresis possible: | yes |
| With detachable clamps: | no |
| External current transformer: | yes |
| Number of contacts as change-over contact: | 1 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Min. adjustable off-delay time: | 0.1 s |
| Max. permitted off-delay time: | 10 s |
| Depth: | 64.9 mm |
| Height: | 104.7 mm |
| Width: | 53.5 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-17 21:30:03 |
| Files to download: |
