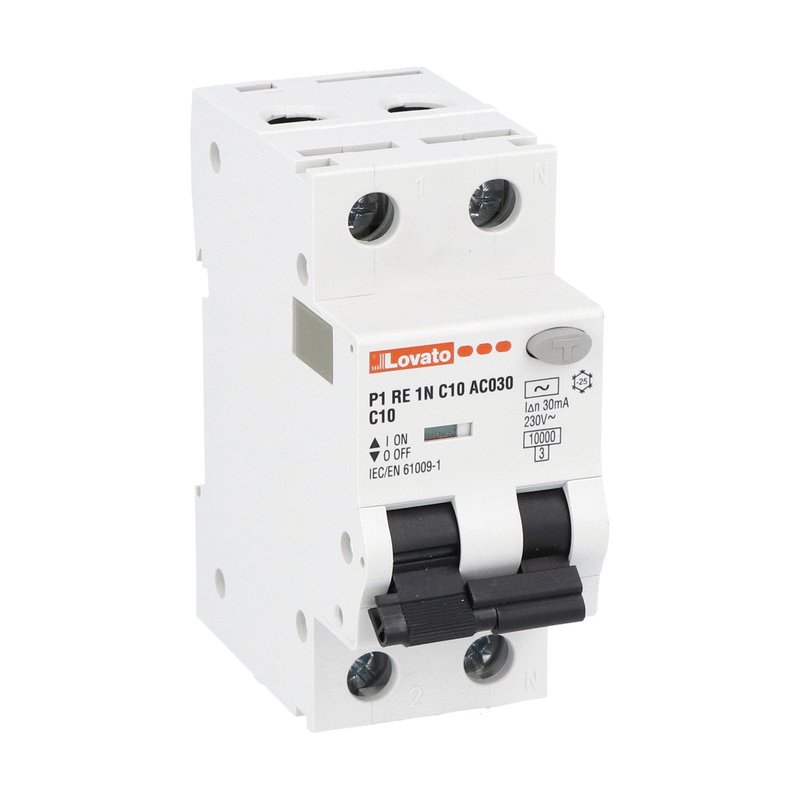

Wyłącznik różnicowonadprądowy - 1P+N - typ AC, 10A, 30mA
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | P1RE1NC10AC030 |
| GTIN(EAN) | 8013975269503 |
| Price unit | piece |
| Catalog price | 346,86 zł (282,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 205 g |
| ETIM class: | Earth leakage circuit breaker |
| Disconnection characteristic: | Undelayed |
| Degree of protection (IP): | IP20 |
| Frequency: | 50/60 Hz |
| Leakage current type: | AC |
| Release characteristic: | C |
| Voltage type: | AC |
| Ambient temperature during operating: | -25 - 60 °C |
| Connectable conductor cross section solid-core: | 1 - 16 mm² |
| Anti-nuisance tripping version: | no |
| Flush-mounted installation: | no |
| With interlocking device: | no |
| Concurrently switching neutral conductor: | yes |
| Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 10 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Width in number of modular spacings: | 2 |
| Pollution degree: | 2 |
| Over voltage category: | 3 |
| Rated fault current: | 10 A |
| Rated insulation voltage Ui: | 400 V |
| Rated voltage: | 230 V |
| Rated current: | 10 A |
| Built-in depth: | 66 mm |
