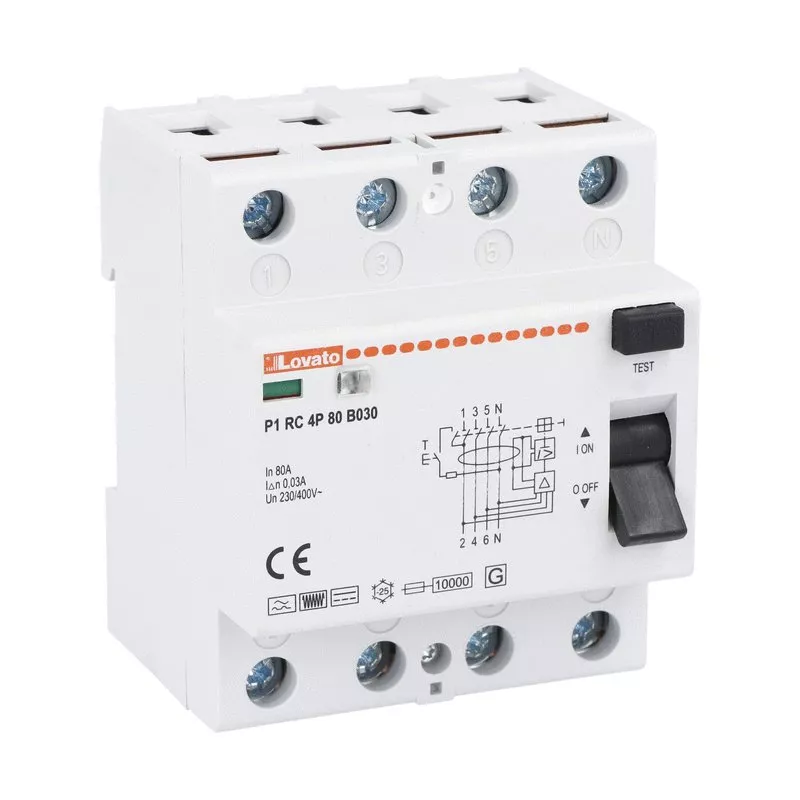

Wyłącznik różnicowoprądowy - 4P - typ B, 80A, 30mA
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | P1RC4P80B030 |
| GTIN(EAN) | 8013975222614 |
| Price unit | piece |
| Catalog price | 9 022,05 zł (7 335,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 335 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Degree of protection (IP): | IP20 |
| Frequency: | 50/60 Hz |
| Leakage current type: | B |
| Voltage type: | AC |
| Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
| Additional equipment possible: | no |
| With interlocking device: | no |
| Explosion-proof: | no |
| Short-time delayed tripping: | no |
| Selective protection: | no |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Width in number of modular spacings: | 4 |
| Pollution degree: | 2 |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Rated fault current: | 10 A |
| Number of poles: | 4 |
| Rated insulation voltage Ui: | 400 V |
| Rated voltage: | 400 V |
| Rated current: | 80 A |
| Built-in depth: | 66 mm |
| Mounting method: | DIN rail |
| Ambient temperature during operating: | -25 - 55 °C |
