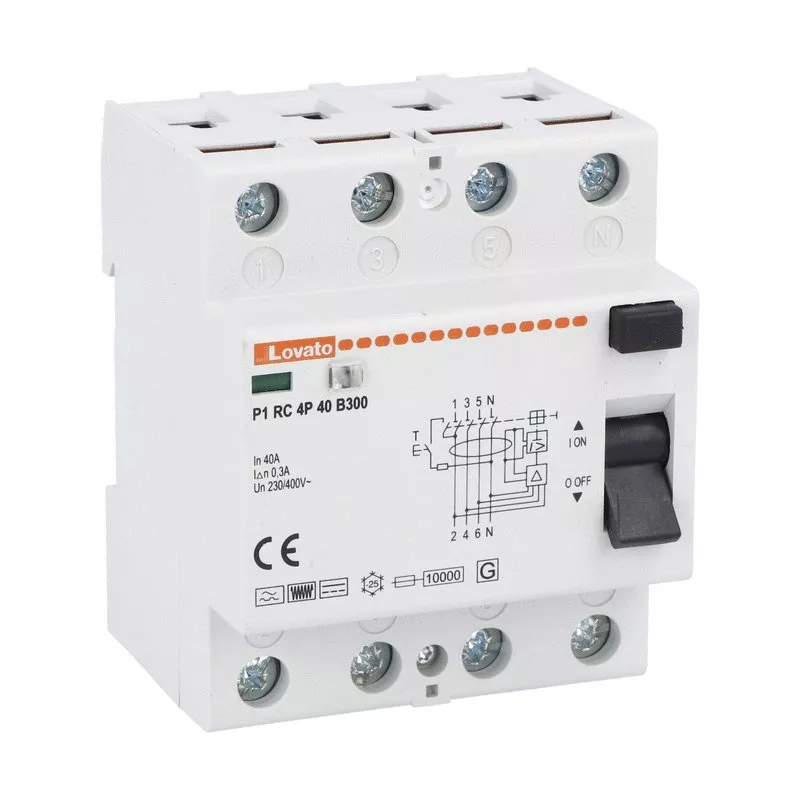

Wyłącznik różnicowoprądowy - 4P - typ B, 40A, 300mA
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | P1RC4P40B300 |
GTIN(EAN) | 8013975222584 |
Price unit | piece |
Catalog price | 4 365,27 zł (3 549,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 335 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Degree of protection (IP): | IP20 |
Frequency: | 50/60 Hz |
Leakage current type: | B |
Voltage type: | AC |
Mounting method: | DIN rail |
Ambient temperature during operating: | -25 - 55 °C |
Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
Additional equipment possible: | no |
With interlocking device: | no |
Explosion-proof: | no |
Short-time delayed tripping: | no |
Selective protection: | no |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 4 |
Pollution degree: | 2 |
Short-circuit breaking capacity (Icw): | 10 kA |
Rated fault current: | 10 A |
Number of poles: | 4 |
Rated insulation voltage Ui: | 400 V |
Rated voltage: | 400 V |
Rated current: | 40 A |
Built-in depth: | 66 mm |
