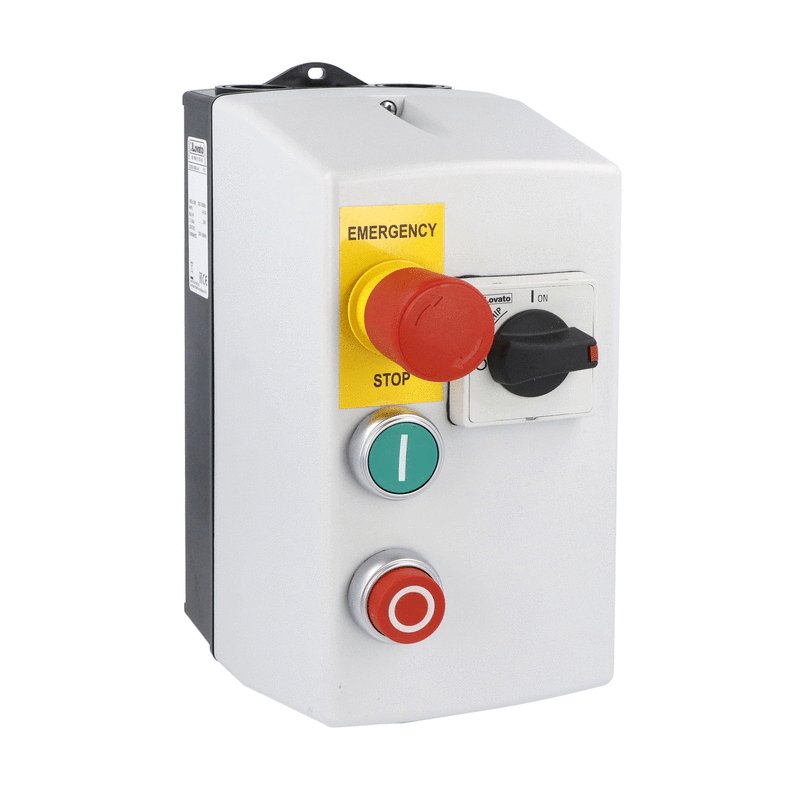

Rozrusznik bezpośredni, z wyłącznikiem silnikowym, stycznikiem i przyciskiem grzybkowym w obudowie izolacyjnej, 1A (≤440V), IP65. Cewka stycznika 400VAC 50/60Hz
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | M2P00911400A4 |
| GTIN(EAN) | 8013975226872 |
| Price unit | piece |
| Catalog price | 1 547,34 zł (1 258,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,45 kg |
| ETIM class: | Motor starter/motor starter combination |
| Degree of protection (NEMA): | 4X |
| Type of motor starter: | Direct online starter (DOL) |
| Voltage type for actuating: | AC |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Type of electrical connection of main circuit: | Screw connection |
| Release class: | CLASS 10 A |
| Degree of protection (IP): | IP65 |
| Rated control supply voltage AC 60 Hz: | 400 - 400 V |
| Rated control supply voltage AC 50 Hz: | 400 - 400 V |
| Overload release current setting: | 0.63 - 1 A |
| Temperature compensated overload protection: | yes |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| With fuse: | no |
| With short-circuit release: | yes |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for SERCOS: | no |
| Rail mounting possible: | no |
| External reset possible: | yes |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for LON: | no |
| Suitable for emergency stop: | yes |
| With transformer: | no |
| Rated conditional short-circuit current, type 2, 230 V: | 50000 A |
| Rated conditional short-circuit current, type 2, 400 V: | 50000 A |
| Ambient temperature, upper operating limit: | 60 °C |
| Rated operation current at AC-3, 400 V: | 1 A |
| Number of indicator lights: | 0 |
| Rated operation current Ie: | 1 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Rated operation power at AC-3, 400 V: | 0.25 kW |
| Depth: | 189 mm |
| Height: | 234 mm |
| Width: | 110 mm |
