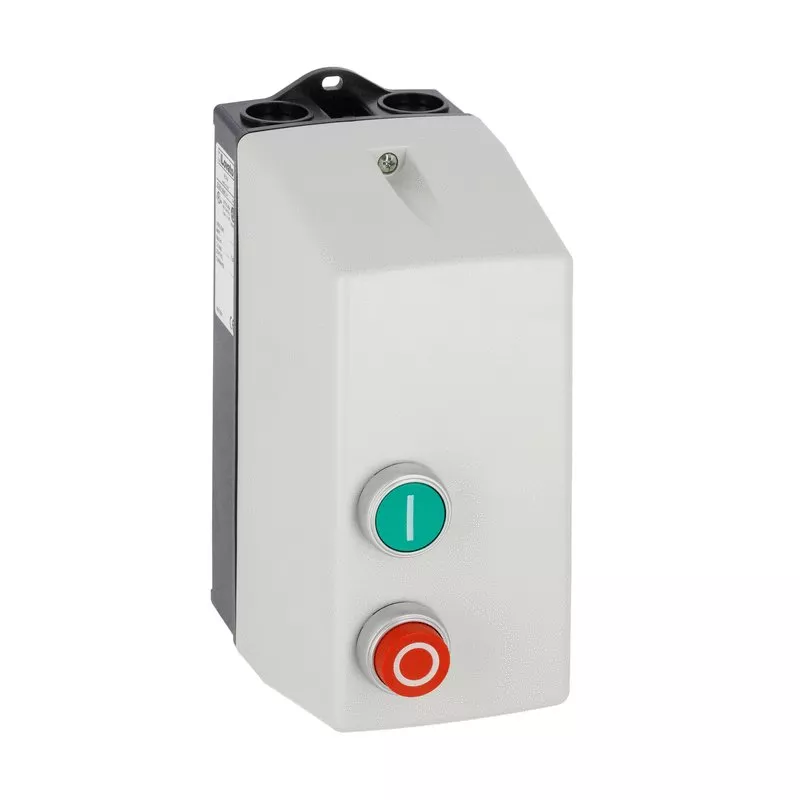

M1P0091022060 Rozrusznik, 13A max (≤440V), IP65
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | M1P0091022060 |
GTIN(EAN) | 8013975213155 |
Price unit | piece |
Catalog price | 526,44 zł (428,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 880 g |
ETIM class: | Motor starter/motor starter combination |
Degree of protection (NEMA): | 4X |
Type of motor starter: | Direct online starter (DOL) |
Voltage type for actuating: | AC |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Type of electrical connection of main circuit: | Screw connection |
Release class: | CLASS 10 A |
Degree of protection (IP): | IP65 |
Rated control supply voltage AC 60 Hz: | 220 - 220 V |
Temperature compensated overload protection: | yes |
With fuse: | no |
With short-circuit release: | no |
Supporting protocol for INTERBUS-Safety: | no |
Supporting protocol for SERCOS: | no |
Rail mounting possible: | no |
External reset possible: | yes |
Supporting protocol for other bus systems: | no |
Supporting protocol for SUCONET: | no |
Supporting protocol for DeviceNet: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | no |
Supporting protocol for PROFIBUS: | no |
Supporting protocol for ASI: | no |
Supporting protocol for TCP/IP: | no |
Supporting protocol for LON: | no |
Suitable for emergency stop: | no |
With transformer: | no |
Rated conditional short-circuit current, type 2, 230 V: | 50000 A |
Rated conditional short-circuit current, type 2, 400 V: | 50000 A |
Ambient temperature, upper operating limit: | 60 °C |
Rated operation current at AC-3, 400 V: | 9 A |
Rated operation power at AC-3, 230 V, 3-phase: | 2.2 kW |
Number of indicator lights: | 0 |
Rated operation current Ie: | 9 A |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Rated operation power at AC-3, 400 V: | 4 kW |
Depth: | 155 mm |
Height: | 202 mm |
Width: | 88 mm |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for AS-Interface Safety at Work: | no |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-17 13:58:29 |
Files to download: |
