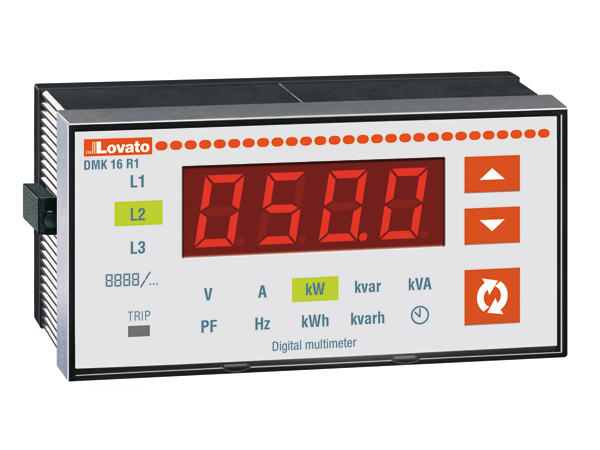

Miernik cyfrowy. 3 napięcia fazowe, 3 napięcia międzyfazowe, 3 prądy fazowe, 4 moce czynne, fazowe i całkowita, 4 moce bierne, fazowe i całkowita, 4 moce pozorne, fazowe i całkowita, 3 fazowe współczynniki mocy, 1 częstotliwość, 1 energia czynna w kWh, 1
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | DMK16R1 |
GTIN(EAN) | 8013975173053 |
Price unit | piece |
Catalog price | 1 423,11 zł (1 157,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 342 g |
ETIM class: | Multifunction measuring instrument |
Accuracy class reactive energy according to IEC 62053-23: | Other |
Accuracy class active energy according to IEC 62053-22: | Other |
Degree of protection (IP), front side: | Other |
Voltage type (supply voltage): | AC |
Display: | LED |
Measuring range for frequency: | 45 - 66 Hz |
Supply voltage AC 50 Hz: | 220 - 240 V |
Remote display: | no |
Web server with HTTPS transfer protocol: | no |
With Role Based Access Control (RBAC): | no |
With logging of security events (security event log): | no |
With firmware signature: | no |
With audit logging (audit log): | no |
Supporting protocol for OPC UA PubSub: | no |
Supporting protocol for IEC 61850 Ethernet: | no |
Supporting protocol for PROFINET IO: | no |
Effective power measurement device: | yes |
Voltmeter: | yes |
Pulse counter: | no |
Frequency meter: | yes |
With rotational speed meter: | no |
Blind power meter: | no |
Ampere meter: | yes |
Supporting protocol for other bus systems: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for PROFIBUS: | no |
Number of current measurement inputs: | 3 |
Number of voltage measurement inputs: | 4 |
Sampling frequency: | 3200 Hz |
Number of Ethernet-connections: | 0 |
Number of analogue outputs: | 0 |
Number of analogue inputs: | 0 |
Number of digital outputs: | 1 |
Number of digital inputs: | 0 |
Depth: | 90 mm |
Height: | 48 mm |
Width: | 96 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-09-23 10:03:11 |
Files to download: |
