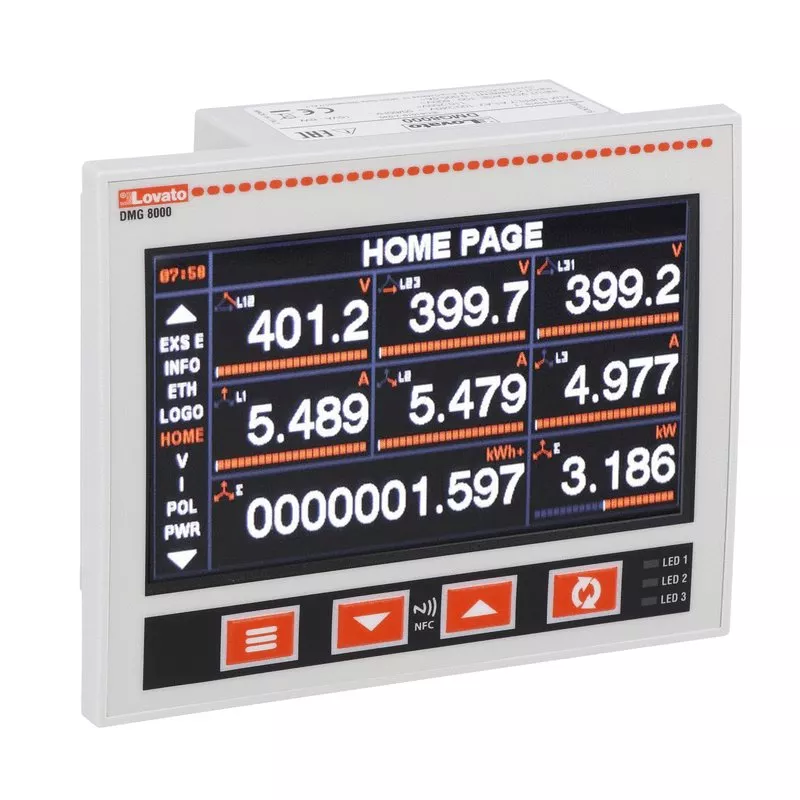

Analizator sieci z szerokim i kolorowym wyświetlaczem. Zasilanie pomocnicze 100...240VAC. Rozbudowa 3 modułami serii EXP, wbudowany port Ethernet, pamięć danych, do współpracy z systemem monitoringu EASY BRANCH
Accuracy class reactive energy according to IEC 62053-23:
Other
Accuracy class active energy according to IEC 62053-22:
0.5S
Degree of protection (IP), front side:
IP65
Voltage type (supply voltage):
AC/DC
Display:
LCD
Measuring range for frequency:
45 - 66 Hz
Supply voltage DC:
110 - 250 V
Supply voltage AC 60 Hz:
100 - 240 V
Supply voltage AC 50 Hz:
100 - 240 V
Remote display:
no
Web server with HTTPS transfer protocol:
no
With Role Based Access Control (RBAC):
no
With logging of security events (security event log):
no
With firmware signature:
yes
With audit logging (audit log):
no
Supporting protocol for OPC UA PubSub:
no
Supporting protocol for IEC 61850 Ethernet:
no
Supporting protocol for PROFINET IO:
no
Effective power measurement device:
yes
Voltmeter:
yes
Pulse counter:
yes
Frequency meter:
yes
With rotational speed meter:
no
Blind power meter:
yes
Ampere meter:
yes
Supporting protocol for other bus systems:
no
Supporting protocol for Modbus:
yes
Supporting protocol for PROFIBUS:
yes
Number of current measurement inputs:
3
Number of voltage measurement inputs:
4
Sampling frequency:
6400 Hz
Display resolution (vertical):
272 px
Display resolution (horizontal):
480 px
Number of Ethernet-connections:
1
Number of analogue outputs:
0
Number of analogue inputs:
0
Number of digital outputs:
0
Number of digital inputs:
0
Depth:
71 mm
Height:
96 mm
Width:
118 mm
