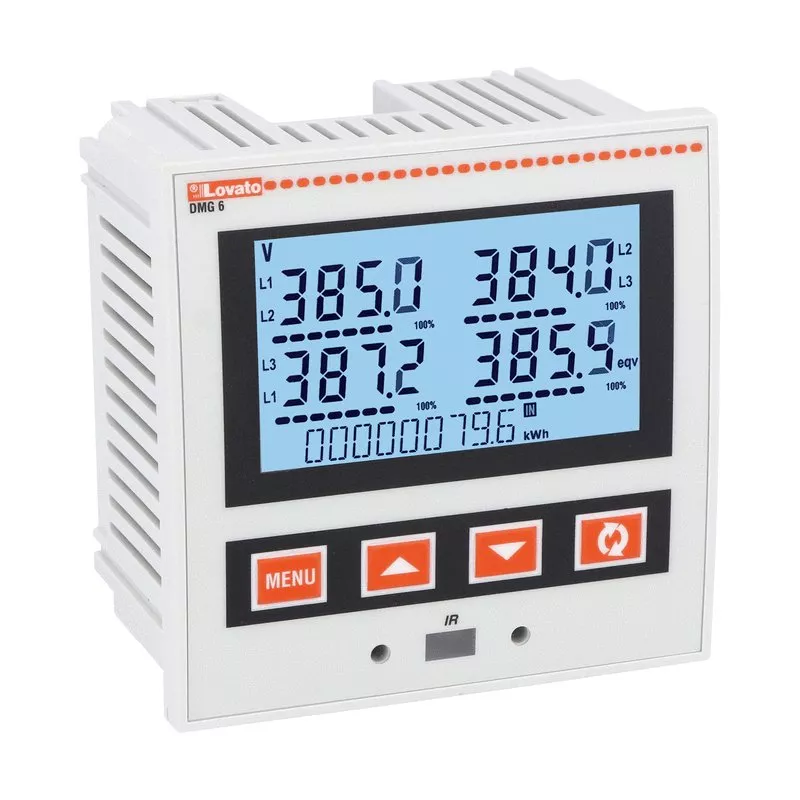

Miernik cyfrowy. Podświetlany ekran LCD z ikonami, 72x46mm/2.8x1.8”, do rozbudowy, dokładność pomiaru energii czynnej Klasa 0,5S, analiza harmonicznych, zasilanie 100-440VAC/120-250VDC, port optyczny na panelu przednim i Ethernet
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | DMG620 |
| GTIN(EAN) | 8013975296103 |
| Price unit | piece |
| Catalog price | 2 564,55 zł (2 085,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 320 g |
| ETIM class: | Multifunction measuring instrument |
| Accuracy class reactive energy according to IEC 62053-23: | Other |
| Accuracy class active energy according to IEC 62053-22: | 0.5S |
| Degree of protection (IP), front side: | Other |
| Voltage type (supply voltage): | AC/DC |
| Display: | LCD |
| Measuring range for frequency: | 45 - 66 Hz |
| Supply voltage DC: | 120 - 250 V |
| Supply voltage AC 60 Hz: | 100 - 440 V |
| Supply voltage AC 50 Hz: | 100 - 440 V |
| Remote display: | no |
| Web server with HTTPS transfer protocol: | no |
| With Role Based Access Control (RBAC): | no |
| With logging of security events (security event log): | no |
| With firmware signature: | no |
| With audit logging (audit log): | no |
| Supporting protocol for OPC UA PubSub: | no |
| Supporting protocol for IEC 61850 Ethernet: | no |
| Supporting protocol for PROFINET IO: | no |
| Effective power measurement device: | yes |
| Voltmeter: | yes |
| Pulse counter: | yes |
| Frequency meter: | yes |
| With rotational speed meter: | no |
| Blind power meter: | no |
| Ampere meter: | yes |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for PROFIBUS: | no |
| Number of current measurement inputs: | 3 |
| Number of voltage measurement inputs: | 4 |
| Sampling frequency: | 3200 Hz |
| Number of Ethernet-connections: | 1 |
| Number of analogue outputs: | 0 |
| Number of analogue inputs: | 0 |
| Number of digital outputs: | 0 |
| Number of digital inputs: | 0 |
| Depth: | 73.5 mm |
| Height: | 96 mm |
| Width: | 96 mm |
