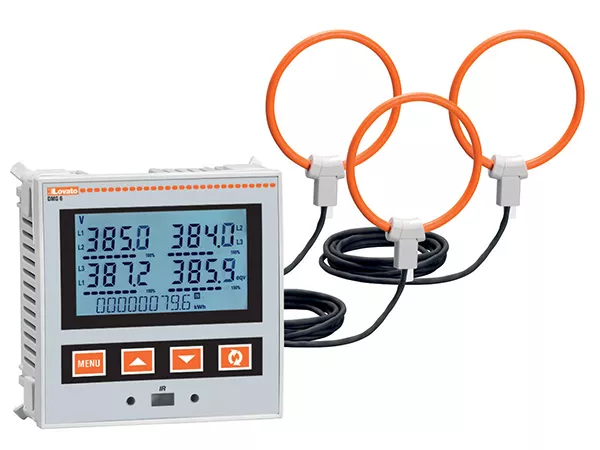

Miernik tablicowy z ekranem LCD z ikonami, do rozbudowy, 72x46mm, zasilanie pomocnicze 100-440VAC / 120-250VDC, port optyczny i RS485. Odczyt prądu przez 3 cewki Rogowskiego (w komplecie), maksymalny prąd 500A
Accuracy class reactive energy according to IEC 62053-23:
Other
Accuracy class active energy according to IEC 62053-22:
Other
Degree of protection (IP), front side:
Other
Voltage type (supply voltage):
AC/DC
Display:
LCD
Measuring range for frequency:
45 - 66 Hz
Supply voltage DC:
110 - 250 V
Supply voltage AC 60 Hz:
100 - 440 V
Supply voltage AC 50 Hz:
100 - 440 V
Remote display:
no
Web server with HTTPS transfer protocol:
no
With Role Based Access Control (RBAC):
no
With logging of security events (security event log):
no
With firmware signature:
no
With audit logging (audit log):
no
Supporting protocol for OPC UA PubSub:
no
Supporting protocol for IEC 61850 Ethernet:
no
Supporting protocol for PROFINET IO:
no
Effective power measurement device:
yes
Voltmeter:
yes
Pulse counter:
yes
Frequency meter:
yes
With rotational speed meter:
no
Blind power meter:
no
Ampere meter:
yes
Supporting protocol for other bus systems:
no
Supporting protocol for Modbus:
yes
Supporting protocol for PROFIBUS:
no
Number of current measurement inputs:
3
Number of voltage measurement inputs:
4
Sampling frequency:
3200 Hz
Number of Ethernet-connections:
0
Number of analogue outputs:
0
Number of analogue inputs:
0
Number of digital outputs:
0
Number of digital inputs:
0
Depth:
73.5 mm
Height:
96 mm
Width:
96 mm
