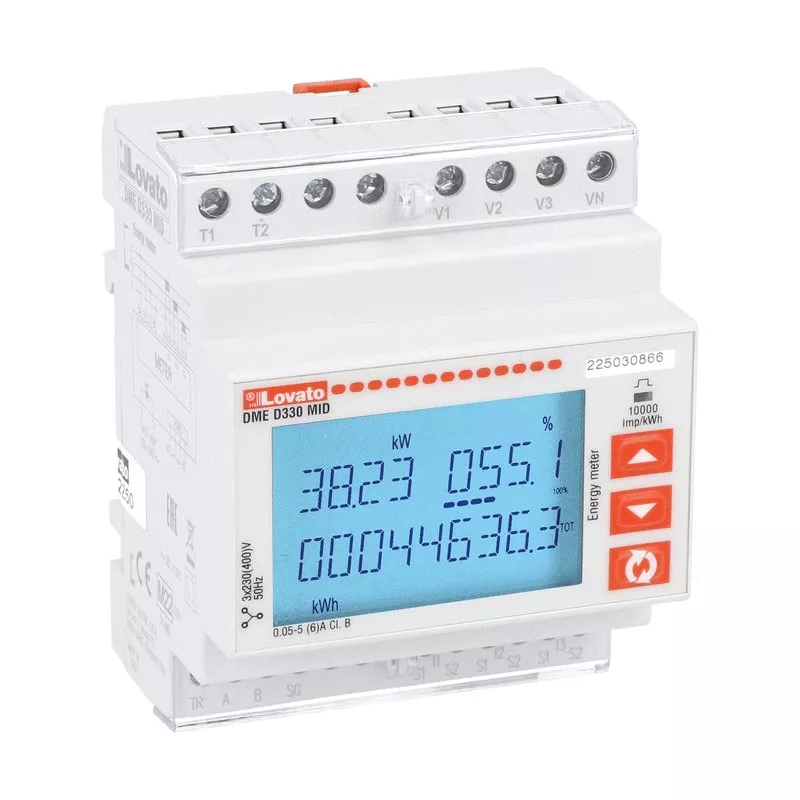

Licznik energii, trójfazowy z przewodem N lub bez, podłączenie przez przekładniki prądowe, bez możliwości rozbudowy, szerokość 4U, interfejs RS-485, wielopomiarowy, certyfikat MID
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | DMED330MID |
| GTIN(EAN) | 8013975230657 |
| Price unit | piece |
| Catalog price | 1 934,79 zł (1 573,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 332 g |
| ETIM class: | Kilowatt-hour meter |
| Pole type: | Three conductor/four conductor |
| Accuracy class: | B |
| Pulse output: | Optical |
| Approval: | Measuring Instruments Directive |
| Tariff control: | External |
| Tariff type: | Two-tariff |
| Energy type: | Effective power and blind power |
| Type of interface: | RS-485 |
| Degree of protection (IP): | IP20 |
| Type of meter: | Electronic |
| Type of indication: | Digital |
| Suitable for: | Purchase |
| Model: | Measurement transformer |
| Mounting method: | DRA (DIN-rail adapter) |
| Nominal voltage (Un) L-L: | 400 - 400 V |
| Nominal voltage (Un) N-L: | 230 - 230 V |
| Pulse rate: | 10000 - 10000 Imp/kWh (kvarh) |
| Frequency: | 45 - 66 Hz |
| With lock code: | yes |
| EEC40 signature: | no |
| Measurement type load profile: | no |
| Calibrated: | yes |
| Nominal current (In): | 5 A |
| Width in number of modular spacings: | 4 |
| Max. current (Imax): | 5 A |
| Depth: | 58 mm |
| Height: | 90 mm |
| Width: | 72 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 10:03:11 |
| Files to download: |
