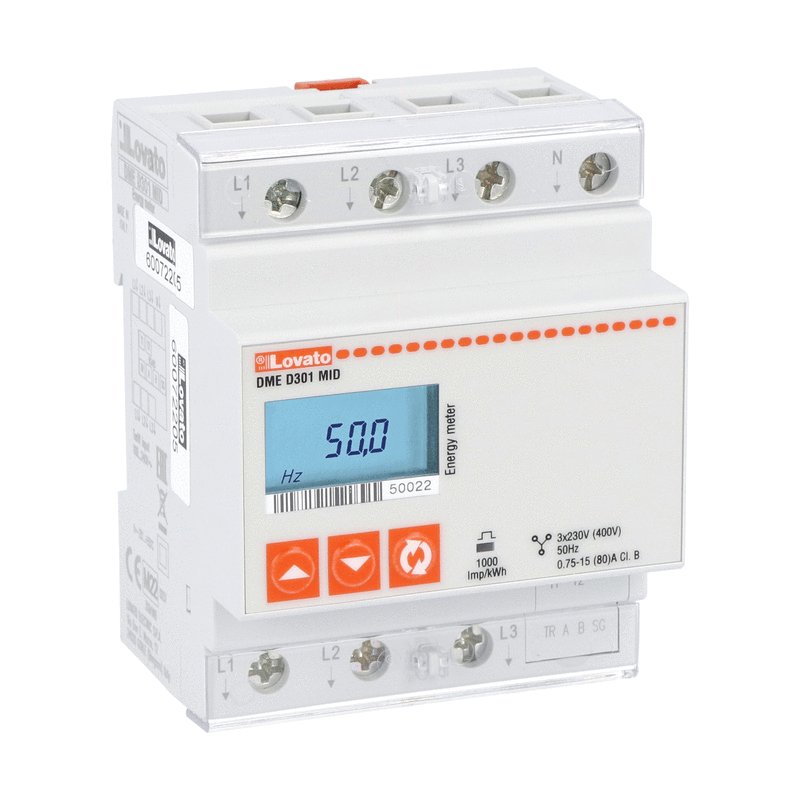

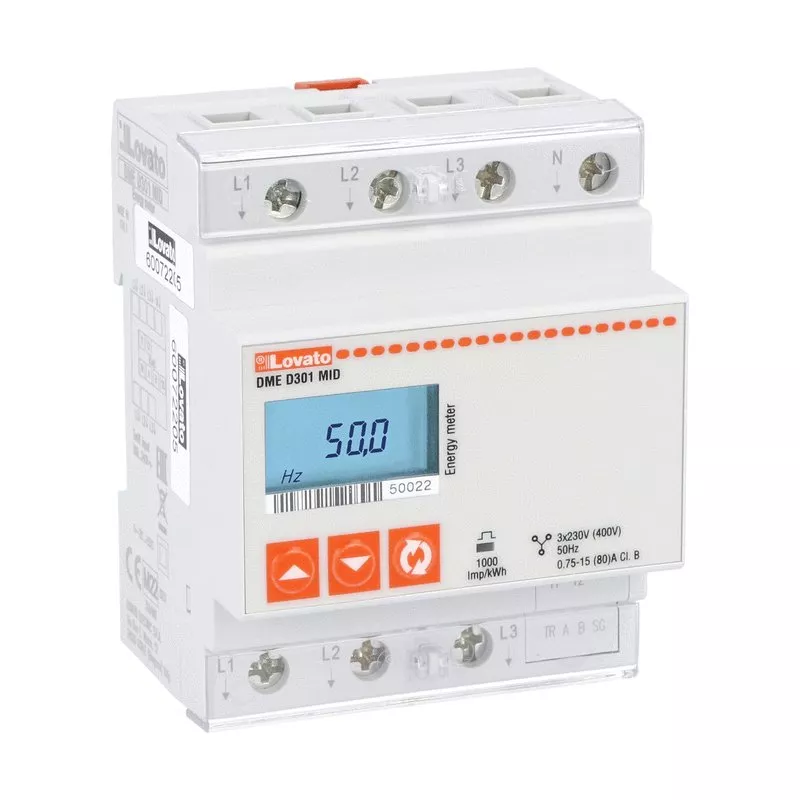

Licznik energii, trójfazowy z przewodem N, bez możliwości rozbudowy, bezpośrednie podłączenie do 80A, szerokość 4U, interfejs RS485, wielopomiarowy, certyfikat MID
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | DMED301MID |
GTIN(EAN) | 8013975228821 |
Price unit | piece |
Catalog price | 2 047,95 zł (1 665,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 360 g |
ETIM class: | Kilowatt-hour meter |
Pole type: | Four conductor |
Accuracy class: | B |
Pulse output: | Optical |
Approval: | Measuring Instruments Directive |
Tariff control: | External |
Tariff type: | Two-tariff |
Energy type: | Effective power and blind power |
Type of interface: | RS-485 |
Degree of protection (IP): | IP20 |
Type of meter: | Electronic |
Type of indication: | Digital |
Suitable for: | Purchase |
Model: | Direct measurement |
Mounting method: | DRA (DIN-rail adapter) |
Nominal voltage (Un) L-L: | 400 - 400 V |
Nominal voltage (Un) N-L: | 230 - 230 V |
Pulse rate: | 1000 - 1000 Imp/kWh (kvarh) |
Frequency: | 45 - 66 Hz |
With lock code: | yes |
EEC40 signature: | no |
Measurement type load profile: | no |
Calibrated: | yes |
Nominal current (In): | 15 A |
Width in number of modular spacings: | 4 |
Max. current (Imax): | 80 A |
Depth: | 58 mm |
Height: | 90 mm |
Width: | 72 mm |
