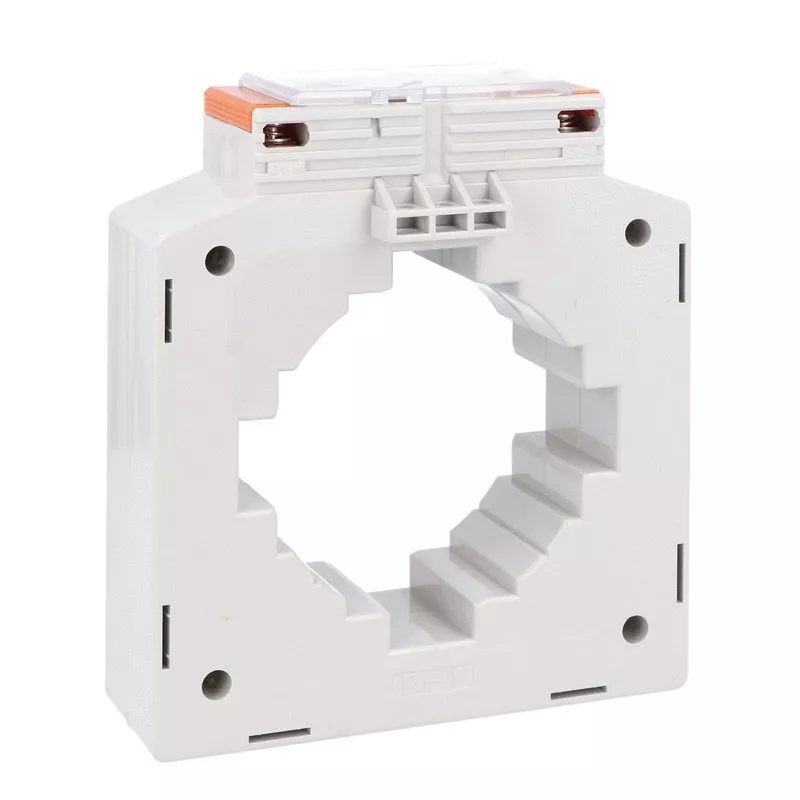

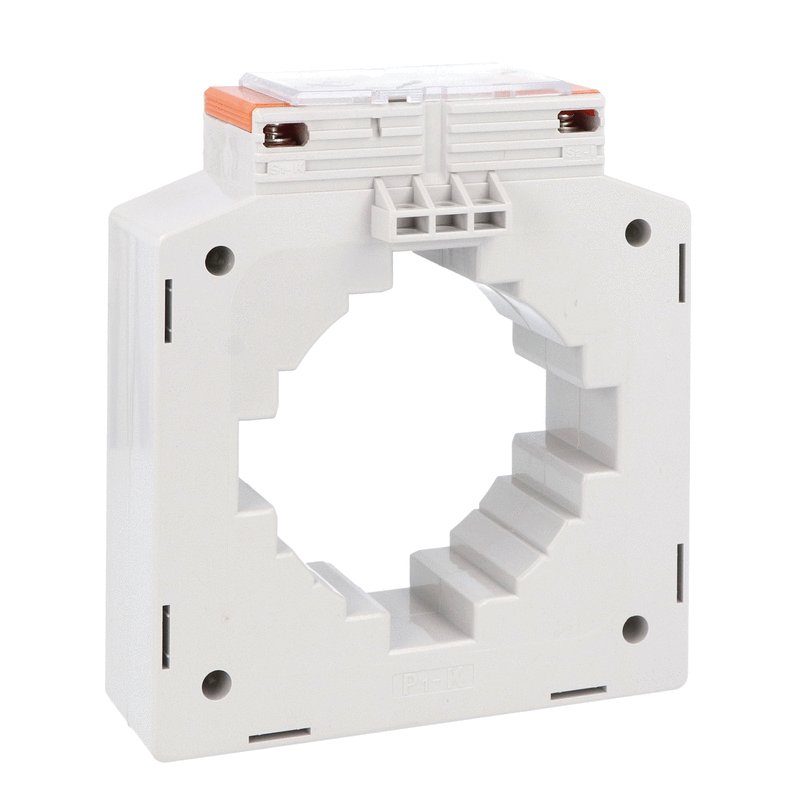

Przekładnik prądowy 1250/5A, klasa 0,5s, na przewód 85,5mm, do szyny: 100x20mm, 80x45mm
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | DM5TP1250 |
| GTIN(EAN) | 8013975218952 |
| Price unit | piece |
| Catalog price | 830,25 zł (675,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 900 g |
| ETIM class: | Current transformer |
| Secondary connection: | Screw connection |
| Accuracy class: | 0.5S |
| Overcurrent limiting factor: | FS 5 |
| Model: | Other |
| Width opening: | 45 - 45 mm |
| Height opening: | 80 - 80 mm |
| Calibrated: | yes |
| With shock protection: | no |
| Snap mounting: | yes |
| With copper rail: | no |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 7.5 VA |
| Rated primary current: | 1250 A |
| Number of primary inputs: | 1 |
| Opening diameter: | 85 mm |
