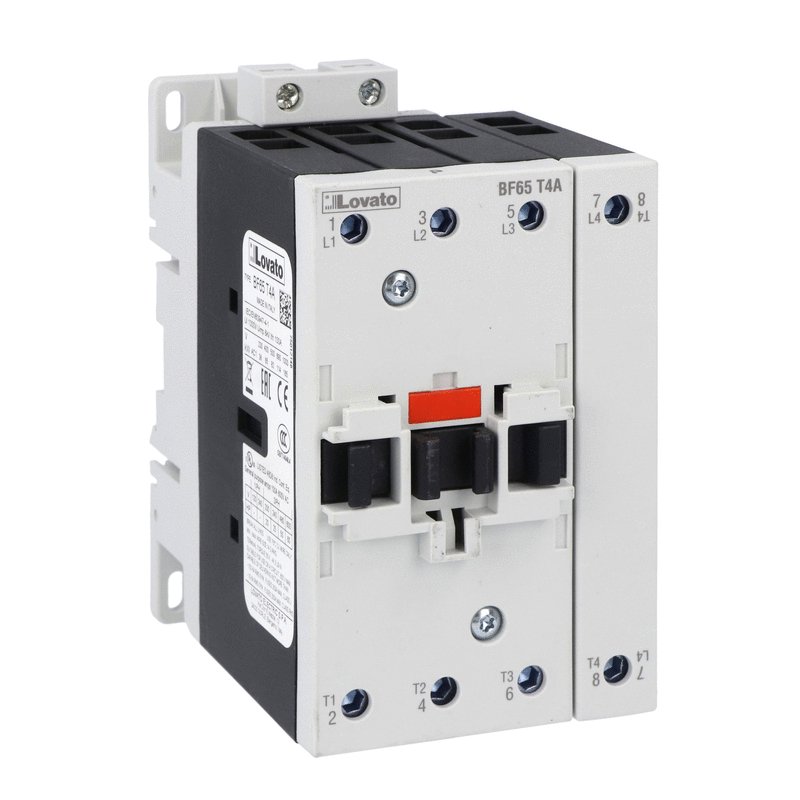

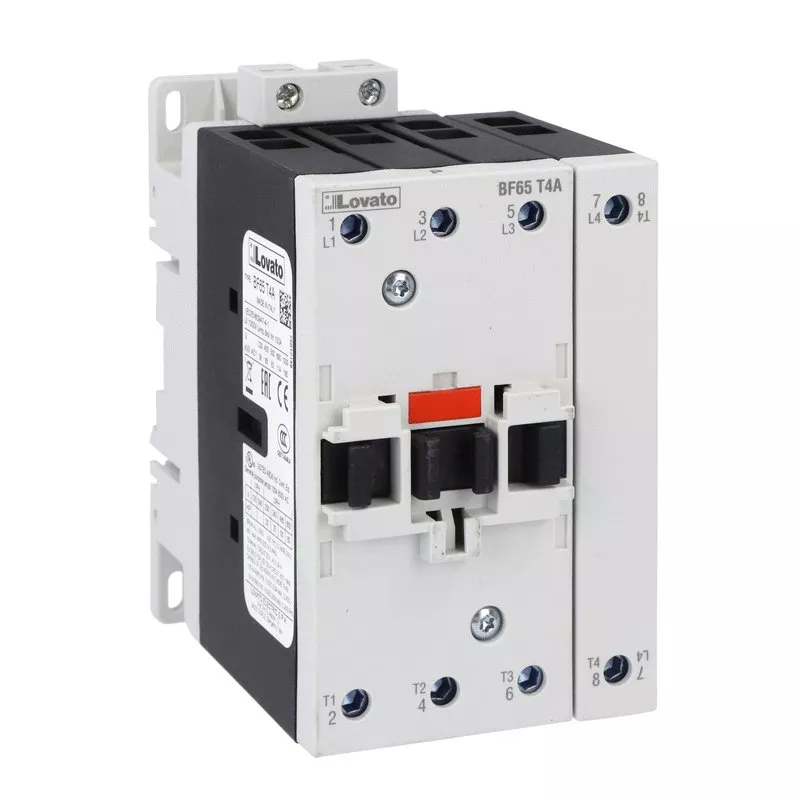

Stycznik 4 polowy, 100A w AC1, 48VAC 50/60Hz
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | BF65T4A048 |
| GTIN(EAN) | 8013975223352 |
| Price unit | piece |
| Catalog price | 1 517,82 zł (1 234,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,1 kg |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Type of electrical connection of main circuit: | Frame clamp |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage AC 50 Hz: | 48 - 48 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 31 A |
| Rated operation current Ie at AC-1, 400 V: | 100 A |
| Rated operation current Ie at AC-3, 400 V: | 65 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 4 |
| Rated operation power at AC-3, 400 V: | 30 kW |
