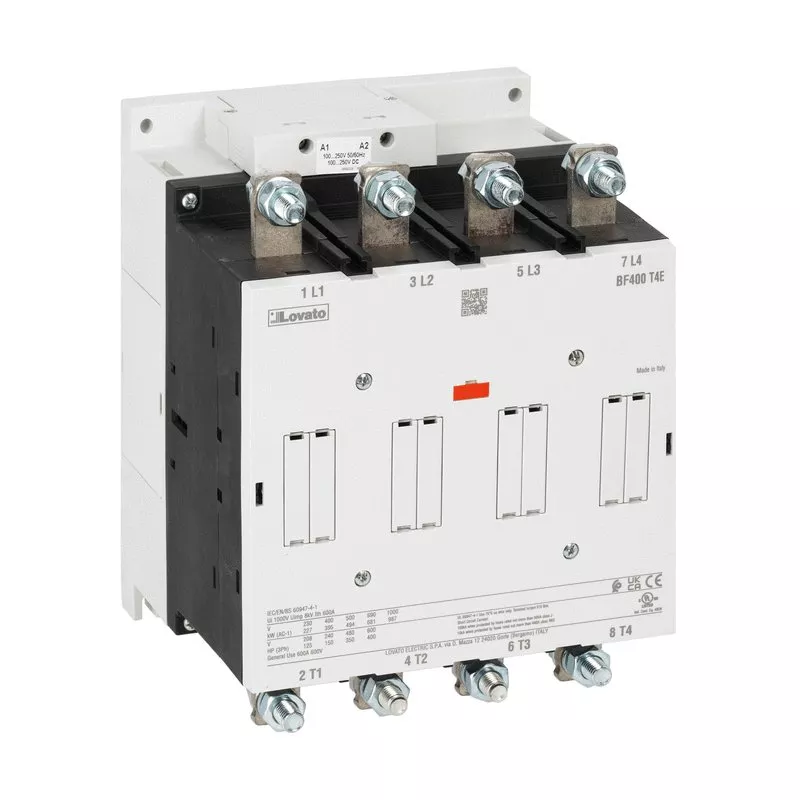

Stycznik 4 polowy, 600A w AC1, cewka 100...250VAC/DC
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | BF400T4E230 |
GTIN(EAN) | 8013975312742 |
Price unit | piece |
Catalog price | 9 346,77 zł (7 599,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 6,135 kg |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage DC: | 100 - 250 V |
Rated control supply voltage AC 60 Hz: | 100 - 250 V |
Rated control supply voltage AC 50 Hz: | 100 - 250 V |
Rated operation current Ie at AC-4, 400 V: | 190 A |
Rated operation current Ie at AC-1, 400 V: | 600 A |
Rated operation current Ie at AC-3, 400 V: | 400 A |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of normally closed contacts as main contact: | 4 |
Number of normally open contacts as main contact: | 0 |
Rated operation power at AC-3, 400 V: | 200 kW |
Modular version: | yes |
Voltage type for actuating: | AC/DC |
Type of electrical connection of main circuit: | Screw connection |
