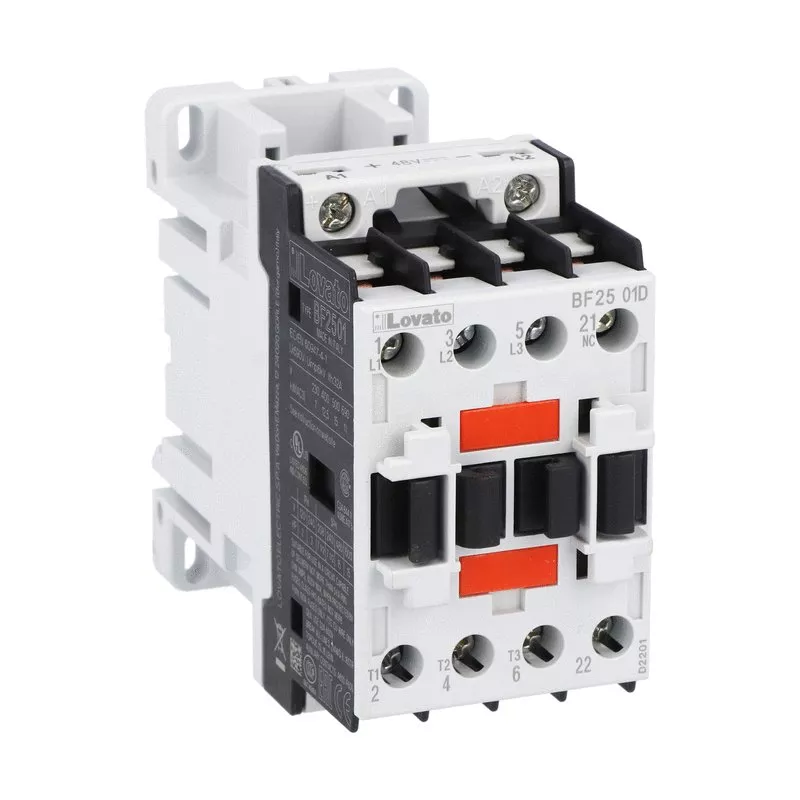

Stycznik 3 polowy, 25A w AC3, wbudowany zestyk pomocniczy 1NC, 125VDC
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | BF2501D125 |
| GTIN(EAN) | 8013975166444 |
| Price unit | piece |
| Catalog price | 528,90 zł (430,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 493 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | DC |
| Type of electrical connection of main circuit: | Screw connection |
| Rated control supply voltage DC: | 125 - 125 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 10 A |
| Rated operation current Ie at AC-1, 400 V: | 32 A |
| Rated operation current Ie at AC-3, 400 V: | 25 A |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Rated operation power at AC-3, 400 V: | 12.5 kW |
