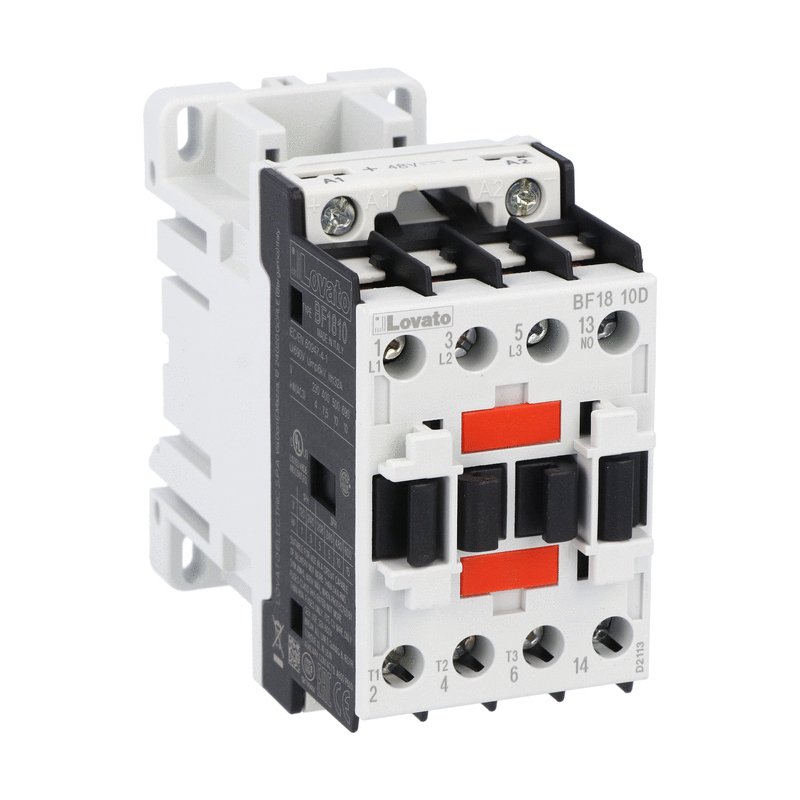

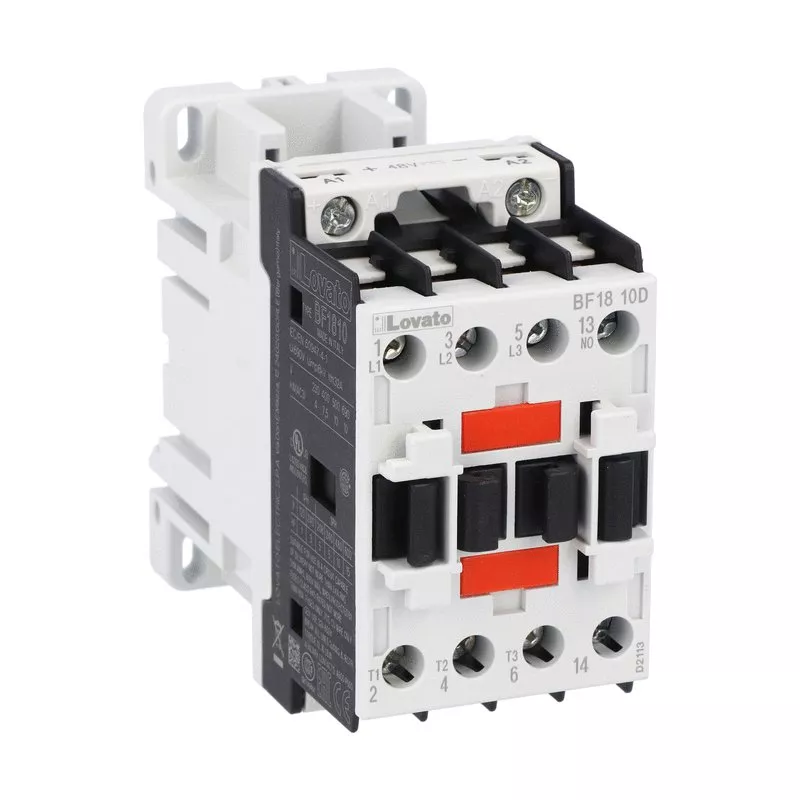

Stycznik 3 polowy, 18A w AC3, wbudowany zestyk pomocniczy 1NO, 12VDC
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | BF1810D012 |
| GTIN(EAN) | 8013975166321 |
| Price unit | piece |
| Catalog price | 388,68 zł (316,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 480 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | DC |
| Type of electrical connection of main circuit: | Screw connection |
| Rated control supply voltage DC: | 12 - 12 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 8.5 A |
| Rated operation current Ie at AC-1, 400 V: | 32 A |
| Rated operation current Ie at AC-3, 400 V: | 18 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Rated operation power at AC-3, 400 V: | 7.5 kW |
