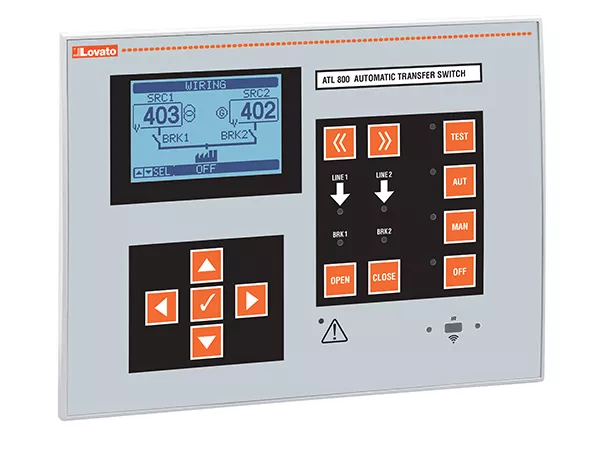

Automatyczny sterownik układu SZR z portem optycznym. Kontrola 2 trójfazowych źródeł zasilania i 1 urządzenia sprzęgła (180x240mm), zasilanie pomocnicze 110…240VAC i 12/24/48VDC, do rozbudowy modułami EXP, wbudowany RS485
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | ATL800 |
| GTIN(EAN) | 8013975215166 |
| Price unit | piece |
| Catalog price | 6 911,37 zł (5 619,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1000 g |
| ETIM class: | PLC CPU-module |
| Voltage type (supply voltage): | AC/DC |
| Model: | Compact |
| Supply voltage DC: | 12 - 48 V |
| Supply voltage AC 60 Hz: | 110 - 240 V |
| Supply voltage AC 50 Hz: | 110 - 240 V |
| Supporting protocol for IEC 60870: | no |
| Supporting protocol for DNP3: | no |
| Supporting protocol for IEC 61850 Ethernet: | no |
| Long-Term Evolution (LTE): | no |
| Radio standard UMTS: | no |
| Radio standard GSM: | no |
| Radio standard GPRS: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| IO link master: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| Wall mounting/direct mounting: | yes |
| Rack-assembly possible: | no |
| Front built-in possible: | yes |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for SERCOS: | no |
| Rail mounting possible: | no |
| Redundancy: | no |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for KNX: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for PROFIBUS: | yes |
| Supporting protocol for ASI: | no |
| Supporting protocol for TCP/IP: | no |
| Additional program memory possible: | no |
| With optical interface: | yes |
| Supporting protocol for LON: | no |
| Suitable for safety functions: | no |
| With display: | yes |
| Number of relay outputs: | 7 |
| Number of HW-interfaces wireless: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of analogue outputs: | 0 |
| Number of analogue inputs: | 0 |
| Number of digital outputs: | 7 |
| Number of digital inputs: | 8 |
| Depth: | 43.9 mm |
| Height: | 180 mm |
| Width: | 240 mm |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-17 22:09:45 |
| Files to download: |
