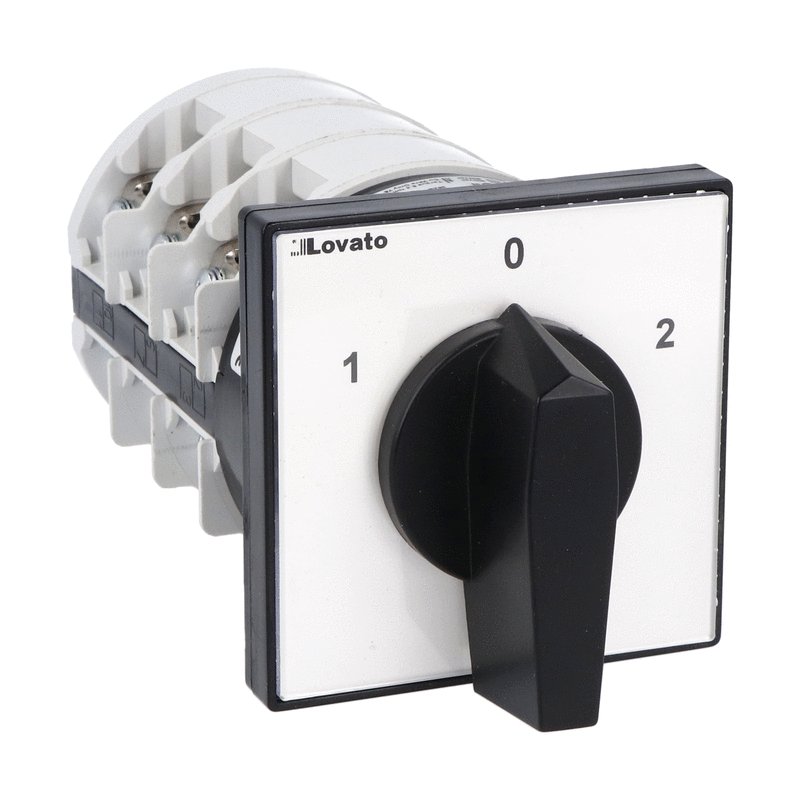

7GN12553U Łącznik krzywkowy serii 7GN, przełącznik sieci, 3 pola, 125A, do montażu tablicowego, z czarnym pokrętłem i tabliczką 90x90mm
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | 7GN12553U |
| GTIN(EAN) | 3850144005761 |
| Price unit | piece |
| Catalog price | 2 109,45 zł (1 715,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,036 kg |
| ETIM class: | Off-load switch |
| Type of control element: | Short thumb-grip |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP40 |
| Housing material: | Plastic |
| Model: | On/Off switch |
| Complete device in housing: | yes |
| Suitable for intermediate mounting: | no |
| Suitable for distribution board installation: | yes |
| Suitable for front mounting: | yes |
| Suitable for floor mounting: | no |
| With retraction in 0-position: | no |
| With zero (off) position: | yes |
| Number of poles: | 6 |
| Rated permanent current Iu: | 125 A |
| Rated operation power at AC-3, 400 V: | 37 kW |
