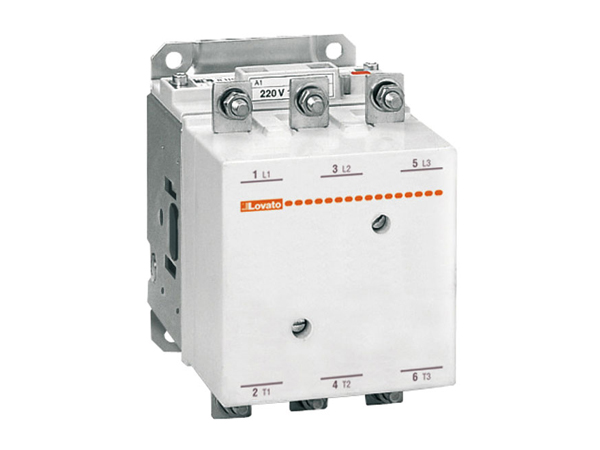

Stycznik 3 polowy, 630A w AC3, 220VAC/DC, z ryglem mechanicznym sterowanym 110VDC
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | 11B630L00220C110 |
| GTIN(EAN) | 8013975093764 |
| Price unit | piece |
| Catalog price | 22 753,77 zł (18 499,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 19,07 kg |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC/DC |
| Type of electrical connection of main circuit: | Bolt connection |
| Rated control supply voltage DC: | 220 - 240 V |
| Rated control supply voltage AC 60 Hz: | 220 - 240 V |
| Rated control supply voltage AC 50 Hz: | 220 - 240 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 210 A |
| Rated operation current Ie at AC-1, 400 V: | 800 A |
| Rated operation current Ie at AC-3, 400 V: | 630 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Rated operation power at AC-3, 400 V: | 335 kW |
