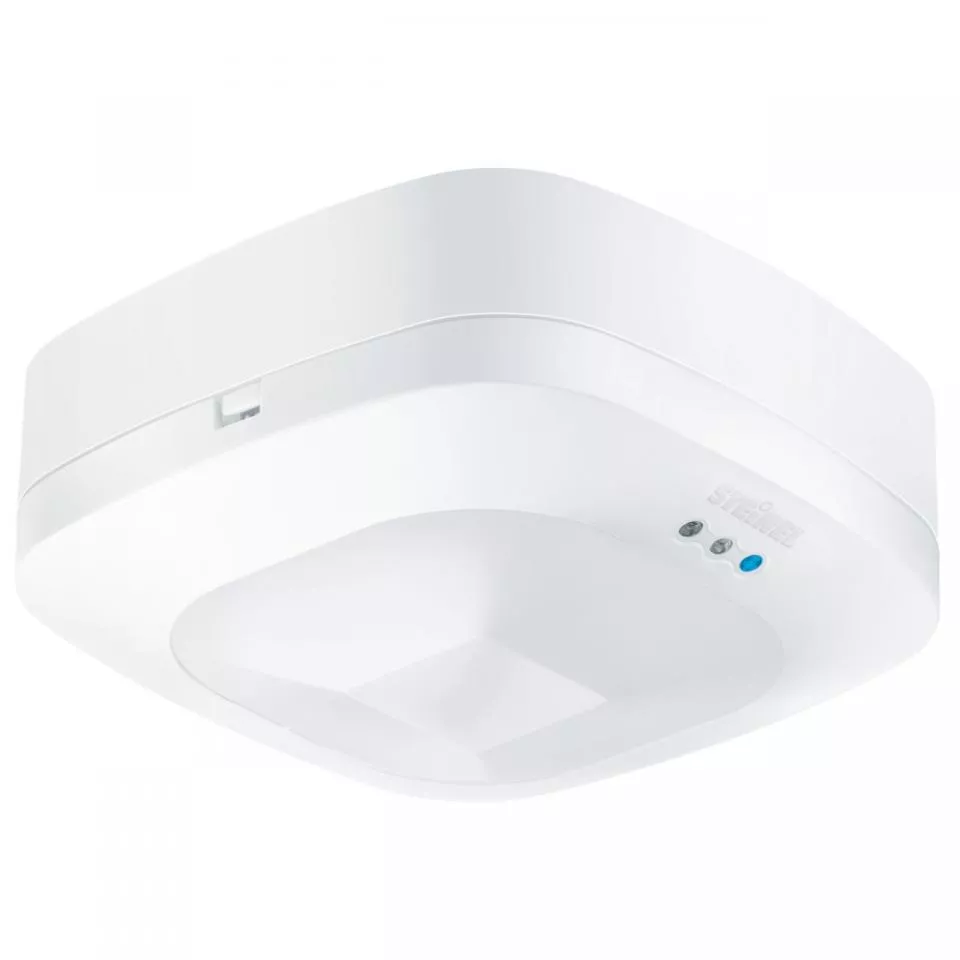

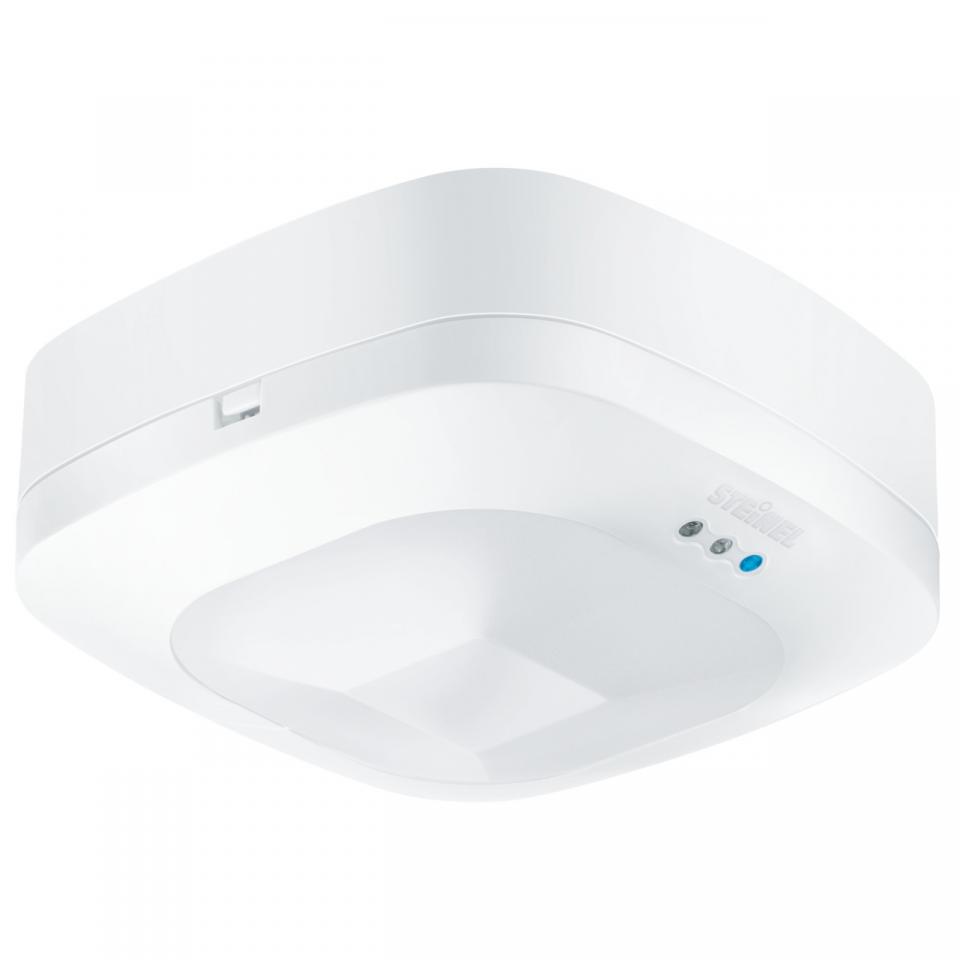

STEINEL Czujnik obecności Steinel HF 360 COM1 AP
Information | Value |
---|---|
Supplier | LŁ Sp. z o.o. sp. k. (Lange Łukaszuk) |
Symbol | ST751302 |
GTIN(EAN) | 4007841751302 |
Price unit | piece |
Catalog price | 710,77 zł (577,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
W obszarach publicznych, takich jak kabiny toalet, technologia wysokiej częstotliwości nie wymaga soczewki, dlatego czujnik HF 360 jest bardzo
płaski, a jako „stróż” prawie niewidoczny. Dzięki temu nie posiada zbyt wielu powierzchni narażonych na ingerencję, w tym na akty wandalizmu. Czujnik w wersji natynkowej (AP).
Steinel to niemiecka marka z centrami produkcyjnymi zlokalizowanymi na terenie Europy. Przez lata doświadczeń zyskał miano lidera w produkcji techniki automatycznego oświetlenia. Jest też niezaprzeczalnym pionierem w dziedzinie opalarek i pistoletów do klejenia. Produkty Steinel trafiają do klientów w ponad 90 krajach świata.
Additional features:
Information | Value |
---|---|
Gross weight: | 450 g |
ETIM class: | Movement sensor/presence detector complete |
Nominal voltage: | 230 V |
Mounting method: | Surface mounted |
Colour: | White |
Width: | 120 mm |
Model: | Presence detector |
Halogen free: | yes |
Height: | 51 mm |
Depth: | 51 mm |
Connection type: | Other |
Surface protection: | Other |
Creep-under protection: | yes |
Voltage type: | AC |
Frequency: | 50 - 60 Hz |
With remote control: | no |
Staircase light controller: | yes |
Bridging switch: | yes |
Suitable for wireless transmission: | no |
Material quality: | Thermoplastic |
Max. reach frontally: | 6 m |
Max. reach sideways: | 6 m |
Max. switching power: | 2000 W |
Temperature: | -25 - 55 °C |
Max. starting current: | 800 A |
Material: | Plastic |
Response value sensitivity adjustable: | yes |
Dim function with dimmer basic element: | no |
Response value luminosity: | 10 - 1000 lx |
Suitable for C-load: | yes |
Diameter reach on floor: | 12 m |
Remote operation: | yes |
HVAC-control: | no |
Constant light control: | no |
Substation input: | yes |
RAL-number (similar): | 9010 |
With signal unit: | yes |
Teach-function for response value luminosity: | yes |
Networkable: | yes |
Forced switch off: | yes |
Degree of protection (IP): | IP20 |
With alarm function: | no |
Transparent: | no |
Animal zone: | no |
Detection angle horizontal: | 360 - 360 ° |
Min. switch-on time: | 30 s |
Max. duty cycle: | 30 min |
Suitable for wall mounting: | no |
Response value luminosity adjustable: | yes |
Optimum mounting height: | 2.8 m |
With DALI interface: | no |
Forced switch on: | no |
Min. starting current: | 0.1 A |
Sensor type: | High frequency |
Suitable for ceiling mounting: | yes |
Anti-bacterial treatment: | no |
