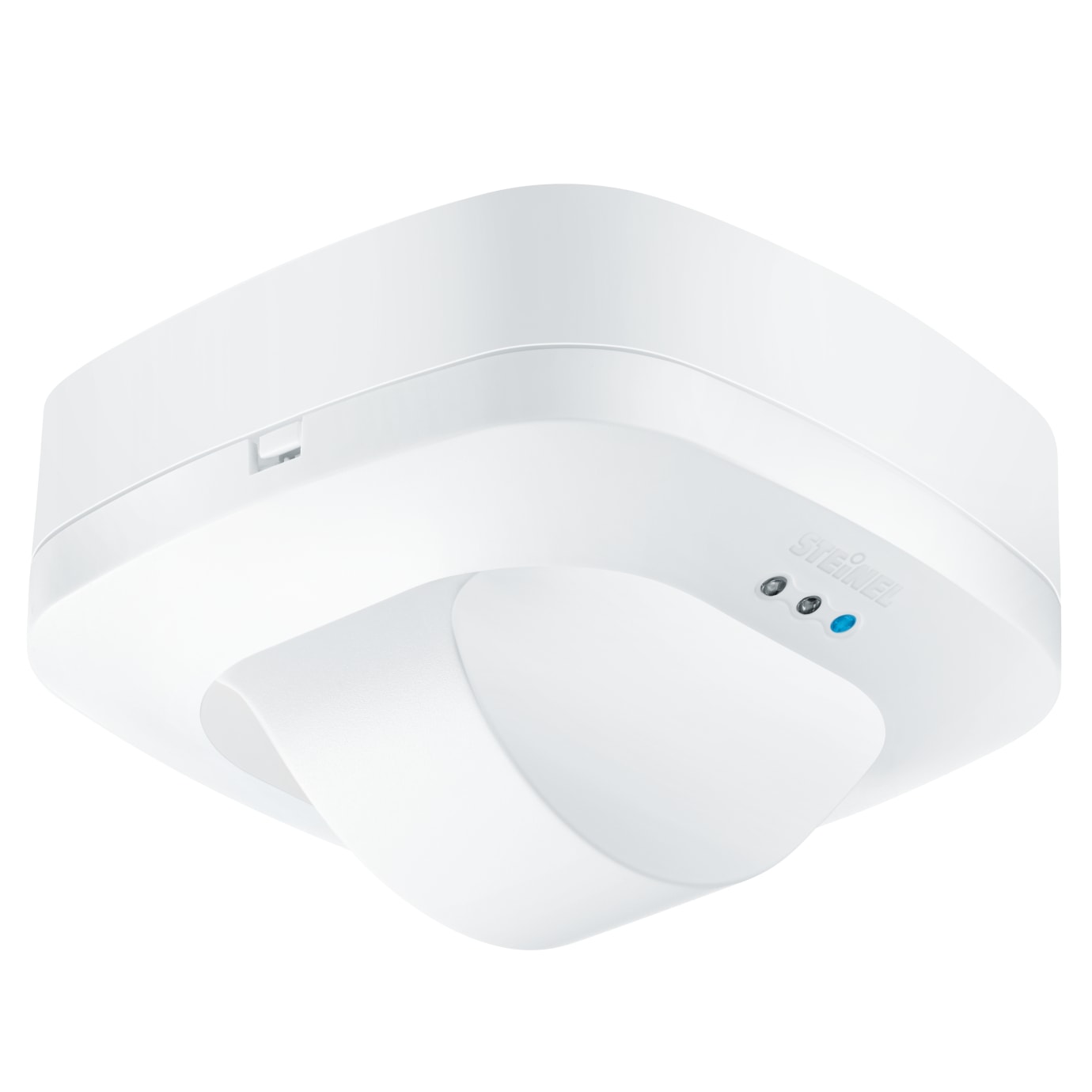

STEINEL Czujnik obecności Steinel DUAL HF COM1 AP
Information | Value |
---|---|
Supplier | LŁ Sp. z o.o. sp. k. (Lange Łukaszuk) |
Symbol | ST590703 |
GTIN(EAN) | 4007841590703 |
Price unit | piece |
Catalog price | 950,90 zł (773,09 zł + 23% VAT) |
Description:
Czujnik korytarzowy Dual HF od razu w wersji natynkowej. Pracuje z wykorzystaniem wariantu technologii wysokiej częstotliwości. System jest wyposażony w 2 czujniki, z których każdy kontroluje jedną stronę korytarza. Oba razem obejmują zasięgiem dobre 20 metrów. Zasięg styczny jest celowo ograniczony do szerokości korytarza, dzięki czemu nie są wykrywane ruchy na przykład za zamkniętymi drzwiami.
Steinel to niemiecka marka z centrami produkcyjnymi zlokalizowanymi na terenie Europy. Przez lata doświadczeń zyskał miano lidera w produkcji techniki automatycznego oświetlenia. Jest też niezaprzeczalnym pionierem w dziedzinie opalarek i pistoletów do klejenia. Produkty Steinel trafiają do klientów w ponad 90 krajach świata.
Additional features:
Information | Value |
---|---|
Gross weight: | 470 g |
ETIM class: | Movement sensor/presence detector complete |
Nominal voltage: | 230 V |
Mounting method: | Surface mounted |
Colour: | White |
Width: | 120 mm |
Model: | Presence detector |
Halogen free: | yes |
Height: | 70 mm |
Depth: | 70 mm |
Connection type: | Other |
Surface protection: | Other |
Creep-under protection: | yes |
Voltage type: | AC |
Frequency: | 50 - 60 Hz |
With remote control: | no |
Staircase light controller: | yes |
Bridging switch: | yes |
Suitable for wireless transmission: | no |
Material quality: | Thermoplastic |
Max. reach frontally: | 10 m |
Max. reach sideways: | 10 m |
Max. switching power: | 2000 W |
Temperature: | -25 - 55 °C |
Max. starting current: | 800 A |
Material: | Plastic |
Response value sensitivity adjustable: | yes |
Dim function with dimmer basic element: | no |
Response value luminosity: | 10 - 1000 lx |
Suitable for C-load: | yes |
Diameter reach on floor: | 20 m |
Remote operation: | yes |
HVAC-control: | no |
Constant light control: | no |
Substation input: | yes |
RAL-number (similar): | 9010 |
With signal unit: | yes |
Teach-function for response value luminosity: | yes |
Networkable: | yes |
Forced switch off: | yes |
Degree of protection (IP): | IP20 |
With alarm function: | no |
Transparent: | no |
Animal zone: | no |
Detection angle horizontal: | 360 - 360 ° |
Min. switch-on time: | 30 s |
Max. duty cycle: | 30 min |
Suitable for wall mounting: | no |
Response value luminosity adjustable: | yes |
Optimum mounting height: | 2.8 m |
With DALI interface: | no |
Forced switch on: | no |
Min. starting current: | 0.1 A |
Sensor type: | High frequency |
Suitable for ceiling mounting: | yes |
Anti-bacterial treatment: | no |
