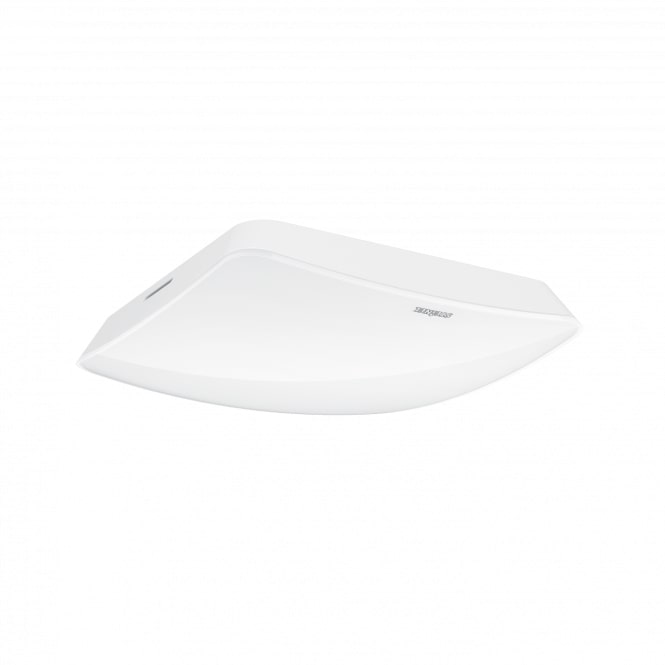

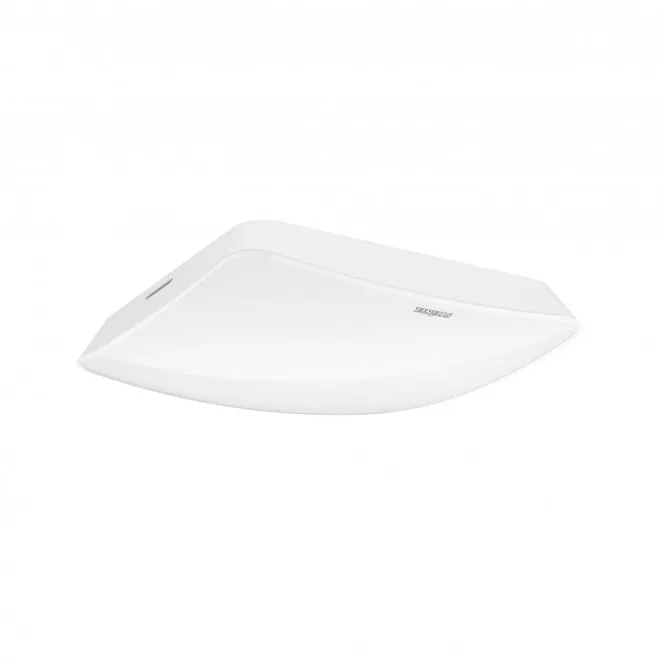

STEINEL Czujnik prawdziwej obecności Steinel True Presence COM2 UP
| Information | Value |
|---|---|
| Supplier | LŁ Sp. z o.o. sp. k. (Lange Łukaszuk) |
| Symbol | ST057947 |
| GTIN(EAN) | 4007841057947 |
| Price unit | piece |
| Catalog price | 1 136,52 zł (924,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
TRUE PRESENCE - pierwszy na świecie czujnik prawdziwej obecności.
Czujnik prawdziwej obecności
True Presence® COM1
- wymiary: 103 x 103 x 50 mm
- zasilanie sieciowe: 230-240 V, 50/60 Hz
- typ czujnika: Wysoka częstotliwość
- HF-system: 7,2 GHz (reaguje na mikroruchy wynikające z funkcji życiowych)
- montaż: podtynkowy
- wysokość montażu: 2 – 12 m
- opt. wys. montażu: 2,8 m
- kąt detekcji: 360°
- kąt rozwarcia: 360°
- obszar wykrywania: prawdziwa obecność:
- Ø 9 m (64 m2) – do wys. montażu 4 metry
- obecność: Ø 15 m (177 m2)
- ruch: Ø 15 m (177 m2)
- el. skalowanie zasięgu: tak
- czułość zmierzchowa: 2 – 1000 lx
- ustawienia czasu: 30 s – 30 min
- moc: 2000 W (obciążenie rezystancyjne)
- jasność podstawowa: na stałe, 1-255 minut, 10-50% = całą noc
- funkcja Teach-in: tak
- sterowanie: za pomocą Bluetooth
- połączenie równoległe: tak
- temperatura pracy: -20 – 50°C
- Stopień IP: IP20 (IP54 z opcjonalnym adapterem natynkowym)
- materiał: tworzywo sztuczne odporne na UV
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Movement sensor/presence detector complete |
| Nominal voltage: | 240 V |
| Mounting method: | Flush-mounted |
| Colour: | White |
| Width: | 103 mm |
| Model: | Presence detector |
| Halogen free: | yes |
| Height: | 50 mm |
| Depth: | 50 mm |
| Connection type: | Other |
| Surface protection: | Other |
| Creep-under protection: | yes |
| Voltage type: | AC |
| Frequency: | 50 - 60 Hz |
| With remote control: | no |
| Staircase light controller: | yes |
| Bridging switch: | yes |
| Suitable for wireless transmission: | yes |
| Material quality: | Thermoplastic |
| Max. reach frontally: | 7.5 m |
| Max. reach sideways: | 7.5 m |
| Max. switching power: | 2000 W |
| Temperature: | -20 - 50 °C |
| Max. starting current: | 800 A |
| Material: | Plastic |
| Response value sensitivity adjustable: | yes |
| Dim function with dimmer basic element: | no |
| Response value luminosity: | 2 - 2000 lx |
| Suitable for C-load: | yes |
| Diameter reach on floor: | 15 m |
| Remote operation: | yes |
| HVAC-control: | yes |
| Constant light control: | no |
| RAL-number (similar): | 9003 |
| With signal unit: | yes |
| Teach-function for response value luminosity: | yes |
| Networkable: | yes |
| Forced switch off: | yes |
| Built-in length: | 29 mm |
| Degree of protection (IP): | IP20 |
| With alarm function: | no |
| Transparent: | no |
| Animal zone: | no |
| Detection angle horizontal: | 360 - 360 ° |
| Min. switch-on time: | 20 s |
| Max. duty cycle: | 60 min |
| Suitable for wall mounting: | no |
| Response value luminosity adjustable: | yes |
| Optimum mounting height: | 2.8 m |
| With DALI interface: | no |
| Forced switch on: | yes |
| Min. starting current: | 0.1 A |
| Min. depth of built-in installation box: | 66 mm |
| Max. presence range: | 15 m² |
| Sensor type: | High frequency |
| Suitable for ceiling mounting: | yes |
| Anti-bacterial treatment: | no |
