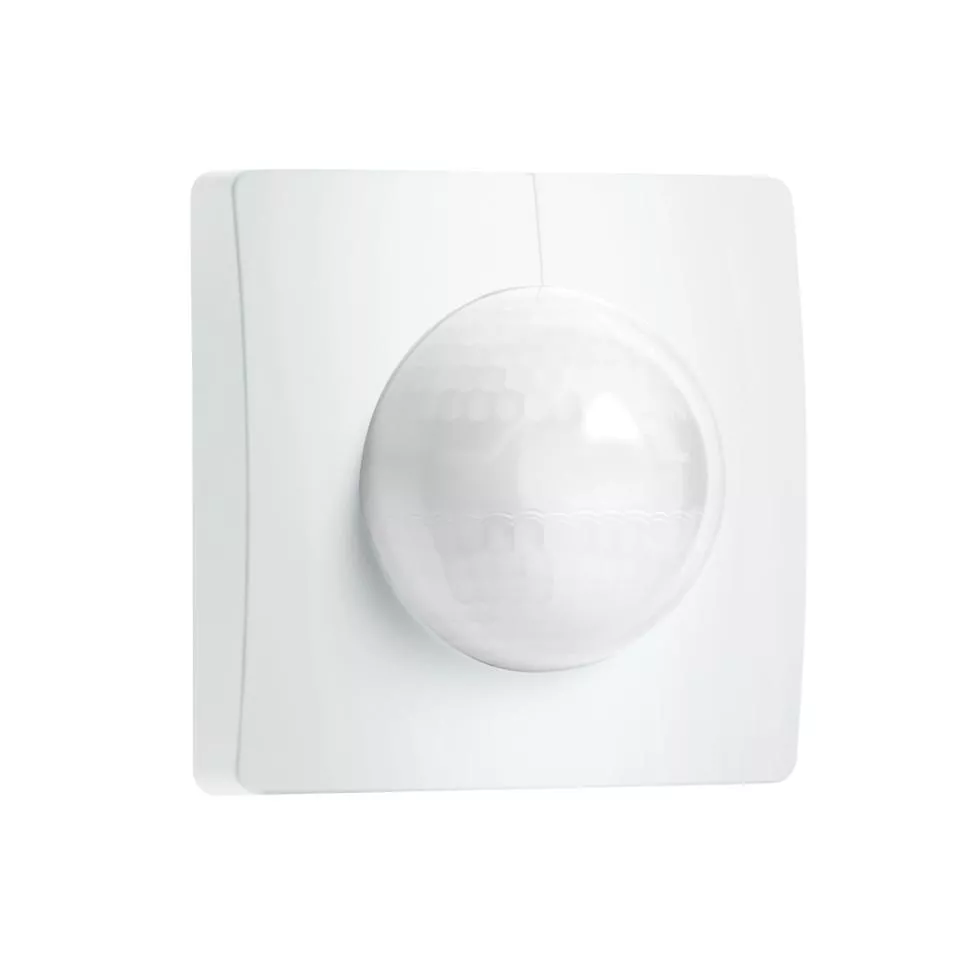

STEINEL Czujnik ruchu i zmierzchu IS 3180-E DALI UP biały
Information | Value |
---|---|
Supplier | LŁ Sp. z o.o. sp. k. (Lange Łukaszuk) |
Symbol | ST055738 |
GTIN(EAN) | 4007841055738 |
Price unit | piece |
Catalog price | 675,68 zł (549,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Movement sensor/presence detector complete |
Nominal voltage: | 240 V |
Mounting method: | Flush-mounted |
Colour: | White |
Width: | 94 mm |
Model: | Movement sensor |
Halogen free: | yes |
Height: | 78 mm |
Depth: | 78 mm |
Connection type: | Other |
Surface protection: | Other |
Creep-under protection: | yes |
Voltage type: | AC |
Frequency: | 50 - 60 Hz |
With remote control: | no |
Staircase light controller: | no |
Bridging switch: | yes |
Suitable for wireless transmission: | no |
Material quality: | Thermoplastic |
Max. reach frontally: | 20 m |
Max. reach sideways: | 20 m |
Temperature: | -20 - 50 °C |
Material: | Plastic |
Response value sensitivity adjustable: | no |
Dim function with dimmer basic element: | yes |
Response value luminosity: | 2 - 1000 lx |
Suitable for C-load: | no |
Diameter reach on floor: | 8 m |
Remote operation: | yes |
HVAC-control: | no |
Constant light control: | yes |
Substation input: | yes |
RAL-number (similar): | 9003 |
With signal unit: | yes |
Control current: | 60 mA |
Teach-function for response value luminosity: | yes |
Networkable: | yes |
Forced switch off: | no |
Built-in length: | 26 mm |
Degree of protection (IP): | IP20 |
With alarm function: | no |
Transparent: | no |
Animal zone: | no |
Detection angle horizontal: | 180 - 180 ° |
Min. switch-on time: | 5 s |
Max. duty cycle: | 15 min |
Suitable for wall mounting: | yes |
Response value luminosity adjustable: | no |
Optimum mounting height: | 2 m |
Number of switching zones: | 448 |
With DALI interface: | yes |
Forced switch on: | no |
Min. depth of built-in installation box: | 66 mm |
Sensor type: | Passive infrared |
Suitable for ceiling mounting: | no |
Anti-bacterial treatment: | no |
