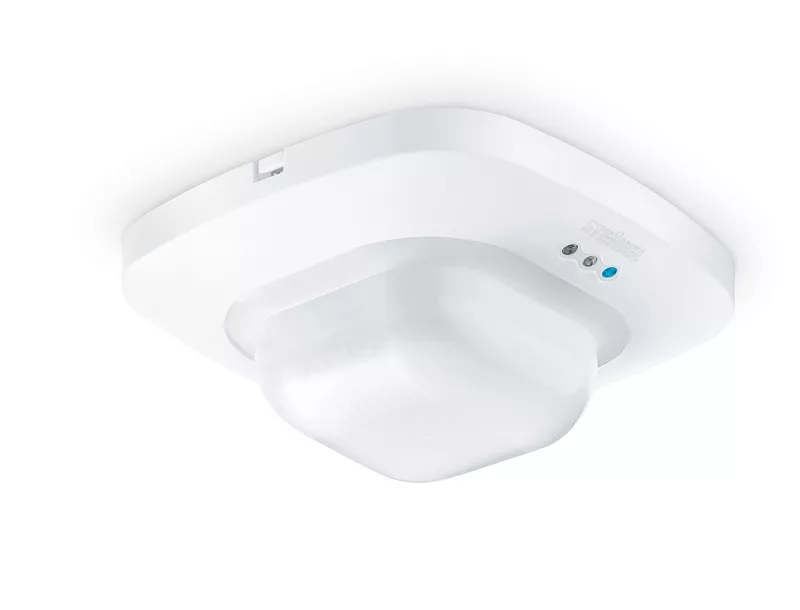

STEINEL Czujnik obecności Steinel IR Quattro COM1
| Information | Value |
|---|---|
| Supplier | LŁ Sp. z o.o. sp. k. (Lange Łukaszuk) |
| Symbol | ST000349 |
| GTIN(EAN) | 4007841000349 |
| Price unit | piece |
| Catalog price | 550,58 zł (447,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
1760 stref wykrywania sprawia, że IR Quattro wyznacza nowe standardy w dziedzinie jakości wykrywania w mniejszych biurach, schowkach,
pomieszczeniach zaopatrzeniowych i gospodarczych oraz w umywalniach. Kwadratowy obszar wykrywania można również skalować mechanicznie bez utraty jakości.
Steinel to niemiecka marka z centrami produkcyjnymi zlokalizowanymi na terenie Europy. Przez lata doświadczeń zyskał miano lidera w produkcji techniki automatycznego oświetlenia. Jest też niezaprzeczalnym pionierem w dziedzinie opalarek i pistoletów do klejenia. Produkty Steinel trafiają do klientów w ponad 90 krajach świata.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 400 g |
| ETIM class: | Movement sensor/presence detector complete |
| Nominal voltage: | 230 V |
| Mounting method: | Flush-mounted |
| Colour: | White |
| Width: | 120 mm |
| Model: | Presence detector |
| Halogen free: | yes |
| Height: | 76 mm |
| Depth: | 76 mm |
| Connection type: | Other |
| Surface protection: | Other |
| Creep-under protection: | yes |
| Voltage type: | AC |
| Frequency: | 50 - 60 Hz |
| With remote control: | no |
| Staircase light controller: | yes |
| Bridging switch: | yes |
| Suitable for wireless transmission: | no |
| Material quality: | Thermoplastic |
| Max. reach frontally: | 3.5 m |
| Max. reach sideways: | 3.5 m |
| Max. switching power: | 2000 W |
| Temperature: | 0 - 40 °C |
| Max. starting current: | 800 A |
| Material: | Plastic |
| Response value sensitivity adjustable: | no |
| Dim function with dimmer basic element: | no |
| Response value luminosity: | 10 - 1000 lx |
| Suitable for C-load: | yes |
| Diameter reach on floor: | 5 m |
| Remote operation: | yes |
| HVAC-control: | no |
| Constant light control: | no |
| Substation input: | yes |
| RAL-number (similar): | 9010 |
| With signal unit: | yes |
| Teach-function for response value luminosity: | yes |
| Networkable: | yes |
| Forced switch off: | yes |
| Built-in length: | 30 mm |
| Degree of protection (IP): | IP20 |
| With alarm function: | no |
| Transparent: | no |
| Animal zone: | no |
| Detection angle horizontal: | 360 - 360 ° |
| Min. switch-on time: | 30 s |
| Max. duty cycle: | 30 min |
| Suitable for wall mounting: | no |
| Response value luminosity adjustable: | yes |
| Optimum mounting height: | 2.8 m |
| Number of switching zones: | 1760 |
| With DALI interface: | no |
| Forced switch on: | yes |
| Min. starting current: | 0.1 A |
| Min. depth of built-in installation box: | 66 mm |
| Max. presence range: | 4 m² |
| Sensor type: | Passive infrared |
| Suitable for ceiling mounting: | yes |
| Anti-bacterial treatment: | no |
