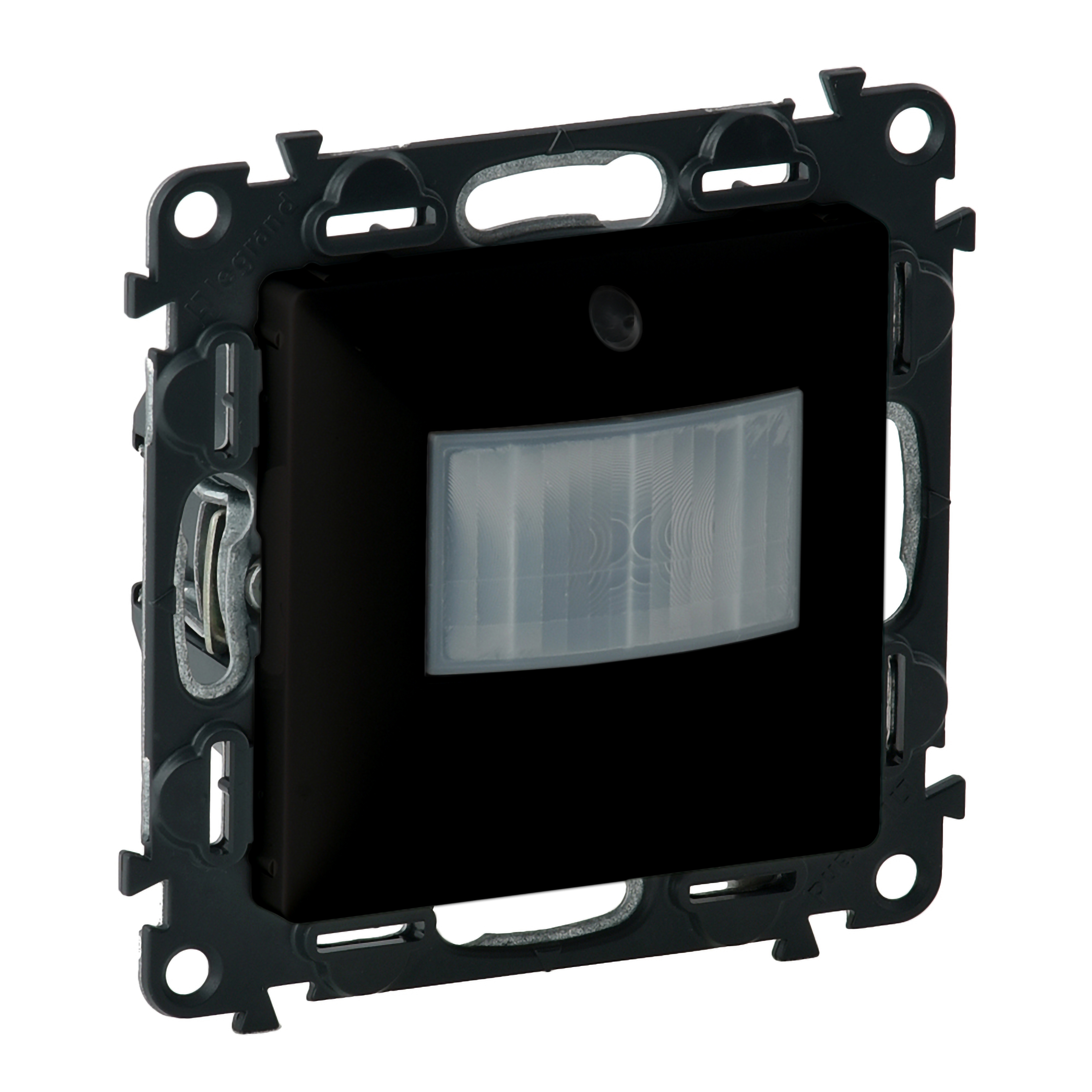

VALENA LIFE ŁĄCZNIK AUTOMATYCZNY Z ZACISKIEM NEUTRALNYM CZARNY 230 V~
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 756373 |
| GTIN(EAN) | 3414972240635 |
| Price unit | piece |
| Catalog price | 670,74 zł (545,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Sterowanie oświetleniem
- Mechanizm z uchwytem metalowym
- Montaż przy pomocy pazurków lub wkrętów
- Do wyposażenia w ramkę
- Mechanizm w komplecie z klawiszem/plakietką
- Opakowanie typu Flowpack
- Produkty posiadają transparentną osłonę przeciwpyłową Łącznik automatyczny z zaciskiem neutralnym 230 V~:
- Dopuszczalne obciążenie:
- 0 – 50 W dla lamp LED,
- 0 – 50 W dla świetlówek kompaktowych CFL
- 0 – 200 VA dla lamp LED, świetlówek kompaktowych CFL, halogenów,
- 0 – 150 VA dla lamp fluorescencyjnych z balastem ferromagnetycznym lub elektronicznym
- 0 – 400 W dla lamp żarowych i halogenowych
- Możliwa instalacja tylko jednego czujnika w obwodzie.
- Brak możliwości ręcznego sterowania za pomocą przycisku.
- Opóźnienie od 10 s do 10 min.
- Nastawa poziomu jasności w zakresie od 5 do 1275 luksów.
- Pobór mocy w stanie czuwania: 0,55 W
Additional features:
| Information | Value |
|---|---|
| Country of origin | Chiny |
| ETIM class: | Movement sensor/presence detector complete |
| Width: | 75 mm |
| Colour: | Black |
| Max. starting current: | 1.8 A |
| Depth: | 51.5 mm |
| Connection type: | Screwed terminal |
| Mounting method: | Flush-mounted |
| Halogen free: | yes |
| Material quality: | Thermoplastic |
| Degree of protection (IP): | IP40 |
| Transparent: | no |
| Suitable for ceiling mounting: | no |
| Surface finishing: | Matt |
| Material: | Plastic |
| Voltage type: | AC |
| With remote control: | no |
| Height: | 75 mm |
| Built-in depth: | 32 mm |
| Frequency: | 50 - 60 Hz |
| Surface protection: | Lacquered |
| Model: | Movement sensor |
| Impact strength: | IK02 |
| Scan angle: | 120 ° |
| With signal unit: | no |
| Suitable for wireless transmission: | no |
| Bridging switch: | no |
| Staircase light controller: | yes |
| Response value luminosity adjustable: | yes |
| Control current: | 0.2 mA |
| Min. switch-on time: | 10 s |
| Detection angle horizontal: | -60 - 60 ° |
| Dim function with dimmer basic element: | no |
| Forced switch off: | no |
| Diameter reach on floor: | 6 m |
| Networkable: | no |
| Response value sensitivity adjustable: | no |
| Remote operation: | no |
| Switch-off delay: | 0 s |
| Animal zone: | no |
| Constant light control: | no |
| With alarm function: | no |
| With DALI interface: | no |
| Max. reach sideways: | 6 m |
| Max. reach frontally: | 8 m |
| Number of switching zones: | 1 |
| Optimum mounting height: | 1.2 m |
| Max. duty cycle: | 10 min |
| Switching-on delay: | 0 s |
| Anti-bacterial treatment: | no |
| Creep-under protection: | no |
| Temperature: | 0 - 40 °C |
| Teach-function for response value luminosity: | no |
| HVAC-control: | no |
| Response value luminosity: | 5 - 1275 lx |
| Compatible with Apple HomeKit: | no |
| Compatible with Amazon Alexa: | no |
| Compatible with Google Assistant: | no |
| Min. depth of built-in installation box: | 40 mm |
| Substation input: | no |
| Sensor type: | Passive infrared |
| Max. switching power: | 400 W |
| IFTTT support available: | no |
