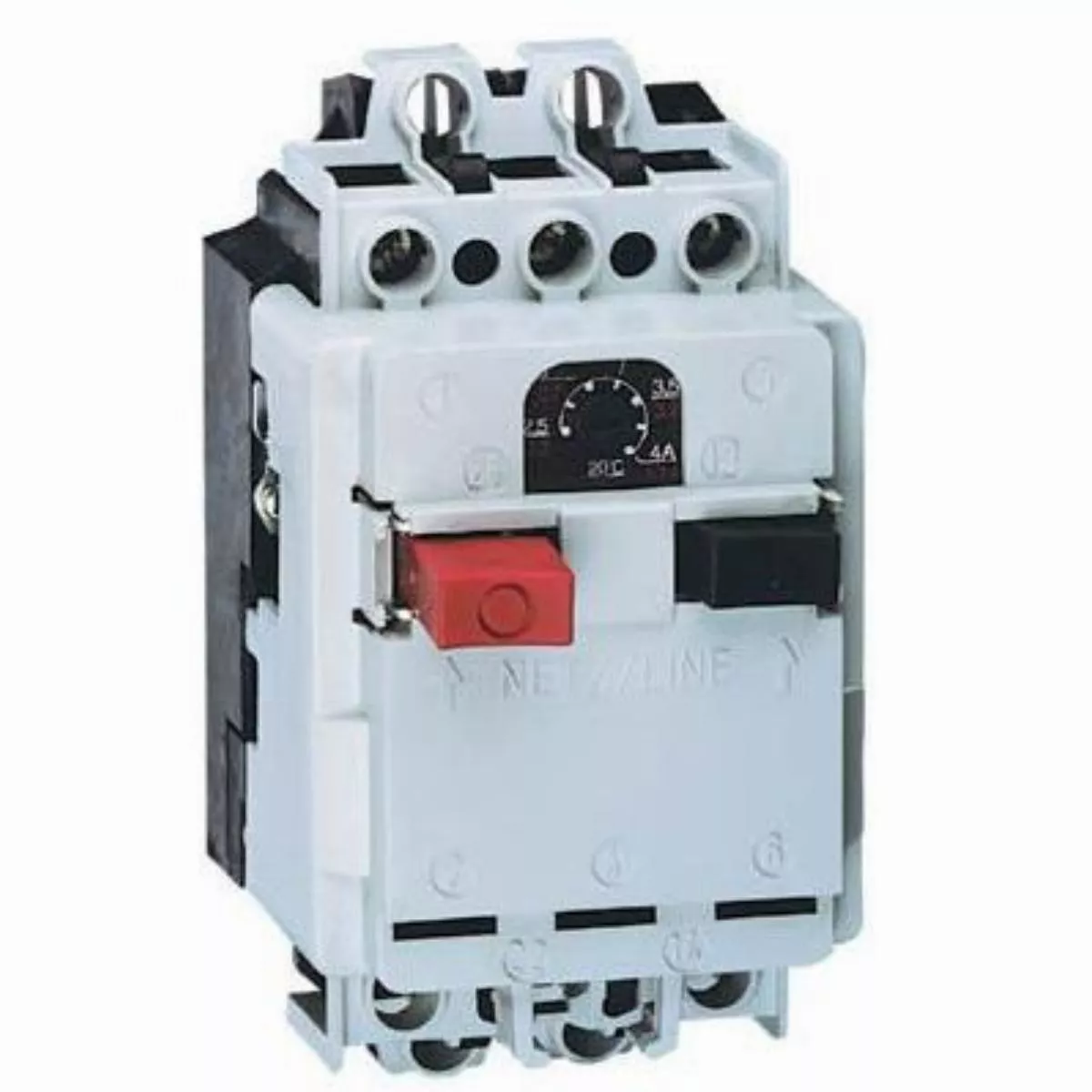

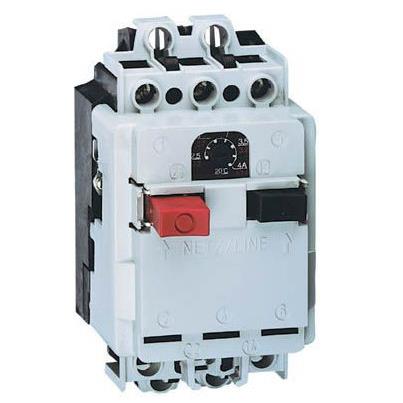

WYŁĄCZNIK M-611 N 2,5-4,0 A, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 6112-330001 |
Price unit | piece |
Catalog price | 473,83 zł (385,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Motor protection circuit-breaker |
Degree of protection (IP): | IP20 |
Type of control element: | Push button |
Height: | 75 mm |
Depth: | 105 mm |
Width: | 60 mm |
With integrated under voltage release: | no |
Type of electrical connection of main circuit: | Screw connection |
Switch off technique: | Thermomagnetic |
With thermal overload protection: | yes |
Rated operation power at AC-3, 230 V: | 4.5 kW |
With integrated auxiliary switch: | no |
Phase failure sensitive: | no |
Rated permanent current Iu: | 4 A |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 1.25 kA |
Rated operating voltage: | 400 - 400 V |
Adjustment range undelayed short-circuit release: | 68 - 68 A |
Overload release current setting: | 2.5 - 4 A |
Device construction: | Complete device in housing |
