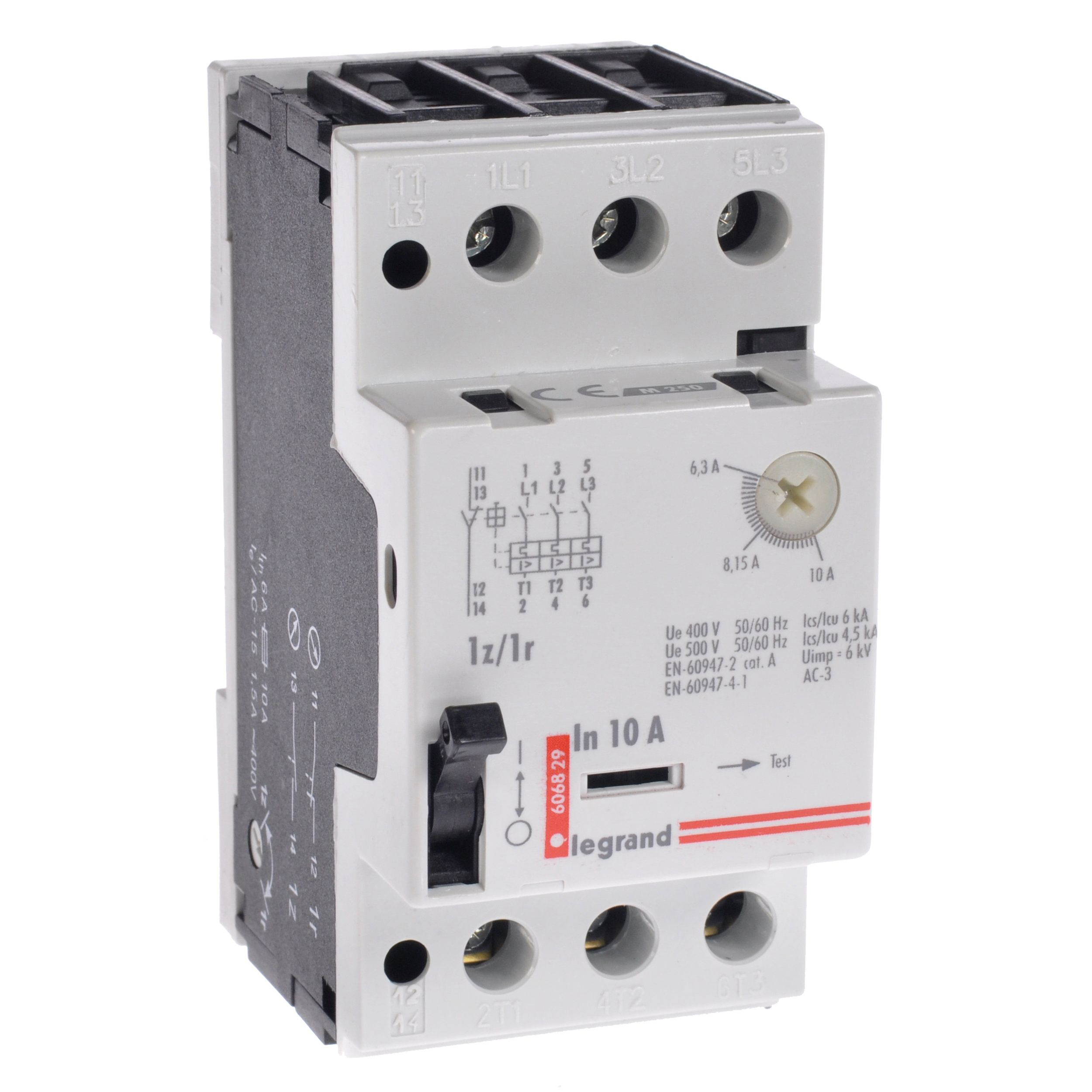

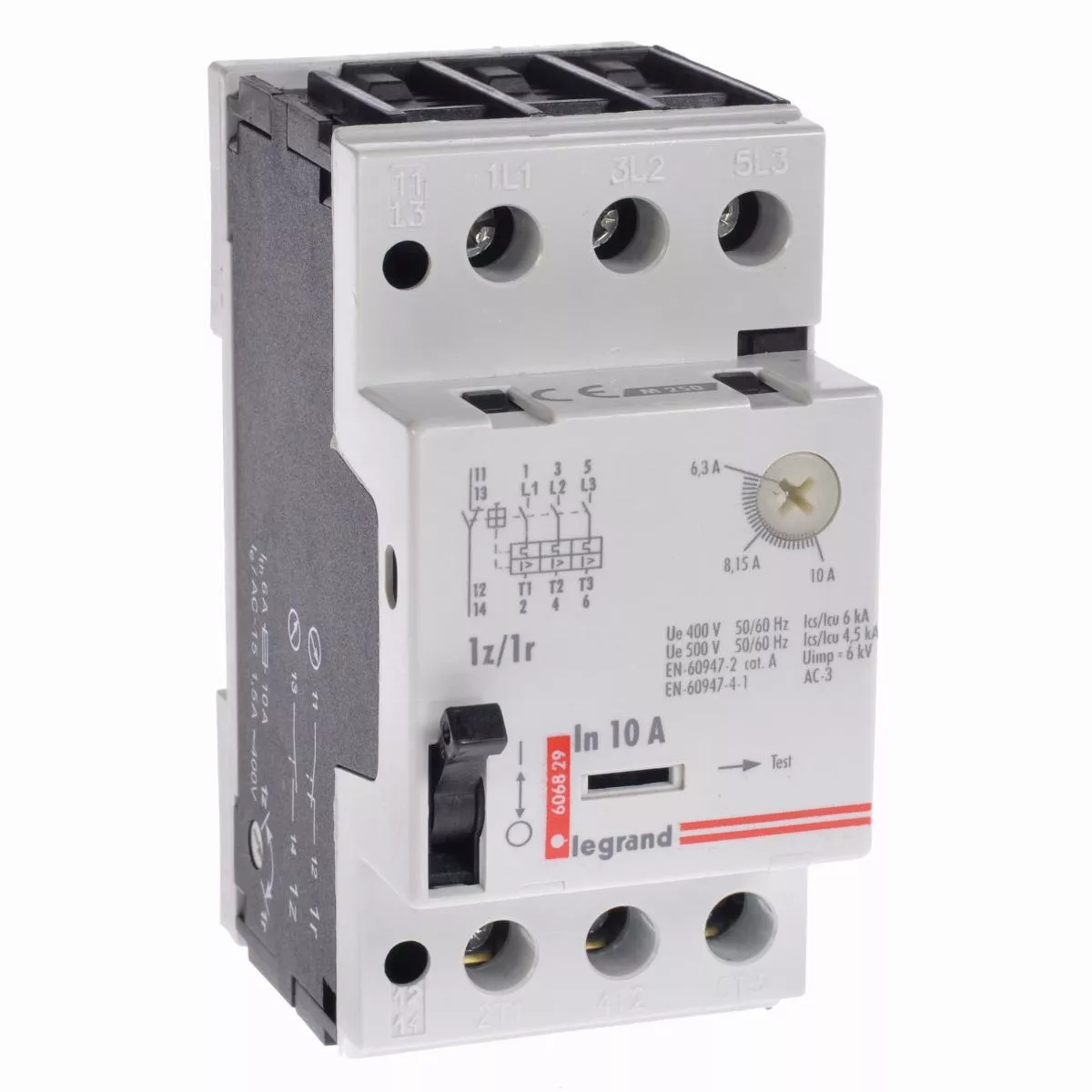

WYŁĄCZNIK M250 1Z/1R 10,0 A, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 606829 |
| Price unit | piece |
| Catalog price | 496,92 zł (404,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Motor protection circuit-breaker |
| Width: | 45 mm |
| Height: | 89 mm |
| Depth: | 72.5 mm |
| With integrated auxiliary switch: | yes |
| Rated permanent current Iu: | 10.0 A |
| With integrated under voltage release: | no |
| Rated operating voltage: | 230 - 500 V |
| Overload release current setting: | 6.3 - 10.0 A |
| Degree of protection (IP): | IP3X |
| With thermal overload protection: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Switch off technique: | Thermomagnetic |
| Rated operation power at AC-3, 230 V: | 4.5 kW |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 6 kA |
| Adjustment range undelayed short-circuit release: | 112 - 168 A |
| Phase failure sensitive: | no |
| Device construction: | Complete device in housing |
