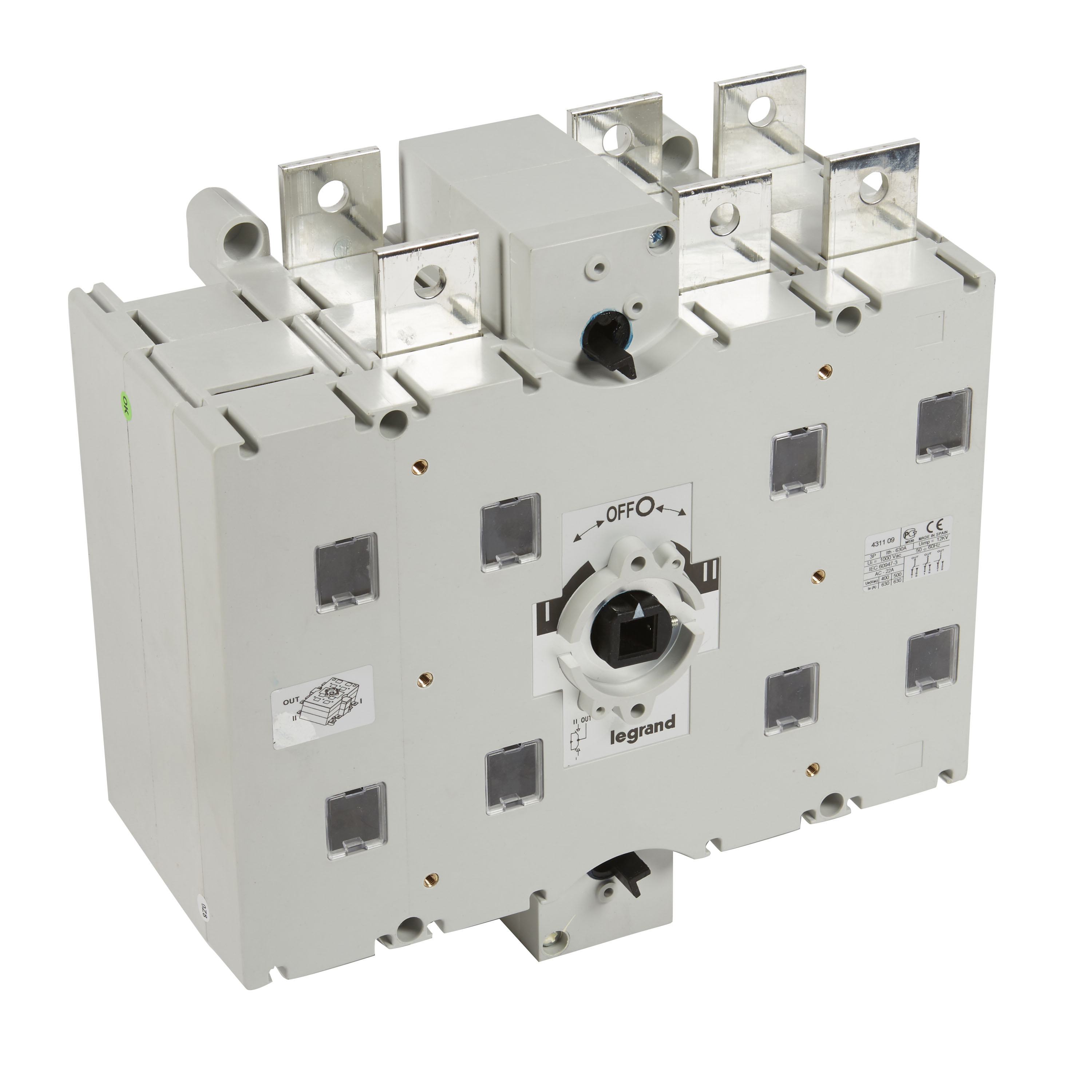

PRZEŁĄCZNIK ZASILANIA DCX-M 630 A 3P, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 431109 |
| GTIN(EAN) | 3245064311090 |
| Price unit | piece |
| Catalog price | 9 861,43 zł (8 017,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Hiszpania |
| ETIM class: | Switch disconnector (low voltage) |
| Version as safety switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as main switch: | yes |
| Number of auxiliary contacts as normally open contact: | 2 |
| Max. rated operation voltage Ue AC: | 1000 V |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Interlockable: | no |
| Rated short-time withstand current lcw: | 13 kA |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Number of poles: | 3 |
| Type of electrical connection of main circuit: | Bolt connection |
| Version as emergency stop installation: | no |
| Motor drive integrated: | no |
| Version as reversing switch: | yes |
| Type of control element: | Long turning handle |
| Conditioned rated short-circuit current Iq: | 20 kA |
| Rated operation power at AC-23, 400 V: | 250 kW |
| Rated permanent current Iu: | 630 A |
| Suitable for intermediate mounting: | no |
| Motor drive optional: | no |
| Suitable for floor mounting: | no |
| Colour control element: | Black |
| Rated permanent current at AC-21, 400 V: | 630 A |
| Suitable for distribution board installation: | yes |
| Rated operating voltage: | 400 - 1000 V |
| Degree of protection (IP), front side: | IP2X |
