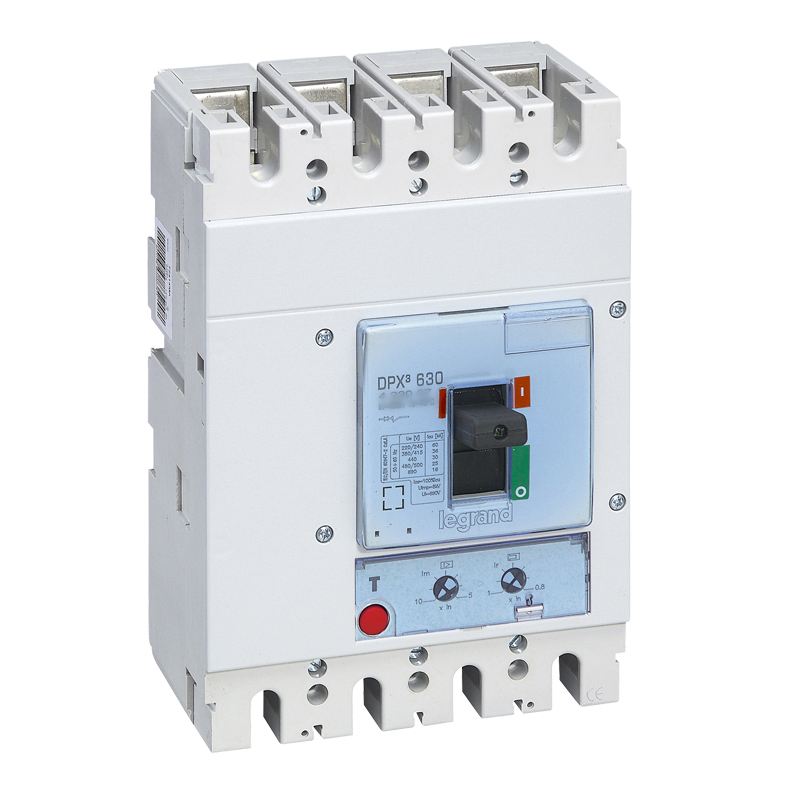

WYŁĄCZNIK DPX3 630 TM 4P 630A 36kA, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 422009 |
| GTIN(EAN) | 3414970378057 |
| Price unit | piece |
| Catalog price | 10 268,97 zł (8 348,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Włochy |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Adjustment range short-term delayed short-circuit release: | 3150 - 6300 A |
| Motor drive integrated: | no |
| Type of control element: | Toggle |
| Degree of protection (IP): | IP30 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 36 kA |
| Rated permanent current Iu: | 630 A |
| Number of auxiliary contacts as change-over contact: | 2 |
| With switched-off indicator: | yes |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Integrated earth fault protection: | no |
| Adjustment range undelayed short-circuit release: | 3150 - 6300 A |
| Motor drive optional: | yes |
| With integrated under voltage release: | yes |
| Position of connection for main current circuit: | Front side |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Device construction: | Built-in device fixed built-in technique |
| Number of poles: | 4 |
| Rated voltage: | 220 - 690 V |
| Type of electrical connection of main circuit: | Screw connection |
| Overload release current setting: | 504 - 630 A |
| DIN rail (top hat rail) mounting optional: | no |
| Complete device with protection unit: | yes |
